Stresses in Rotating Disks & Rings

Rating:
4

Description


Purpose of Calculation
Calculation of stresses in rotating Disks and Rings resulting from inertial forces
Calculation Reference
https://roymech.co.uk/Useful_Tables/Mechanics/Rotating_cylinders.html
Calculation Validation
The various calculations have been checked against example in above texts.
The theoretical derivation of the equations is found on the above website.
Important Note:Please only enter data in the identified coloured cells.
Introduction
This page includes simple equations for calulating the tangential and radial stresses in rotating disks and rings. The rotating disks /rings are assumed to have small thicknes compared to the diameters. The axial stress are assumed to be zero.

Calculation Reference
Strength of materials Ryder
Roarks Formulas for stress and strain

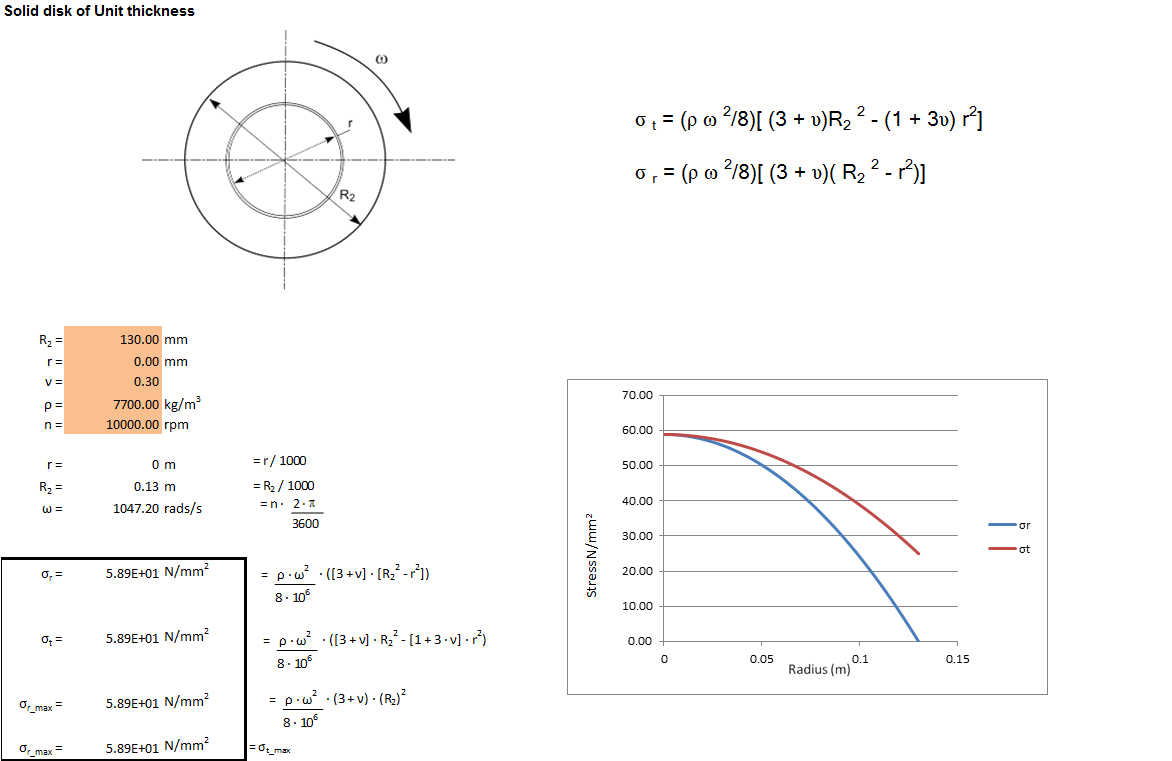

Rotating Disks

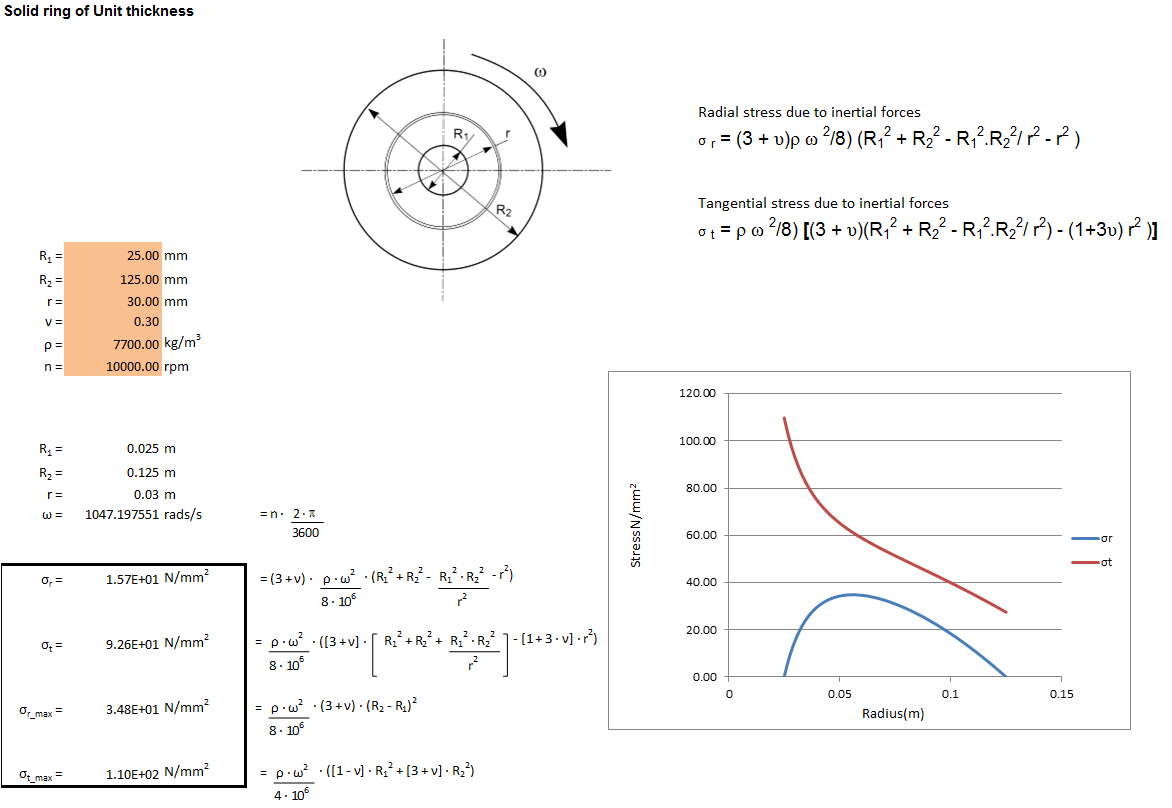

Calculation Preview

Uploaded
07 Aug 2011
Last Modified
28 Mar 2022
File Size:
262.27 Kb
Downloads:
61
File Version:
2.0
File Author:
Roy Beardmore
Rating:
4


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Be the first to comment! Please sign in or register.
