BEAMANAL for BOXFRAME

Rating:
0

Description

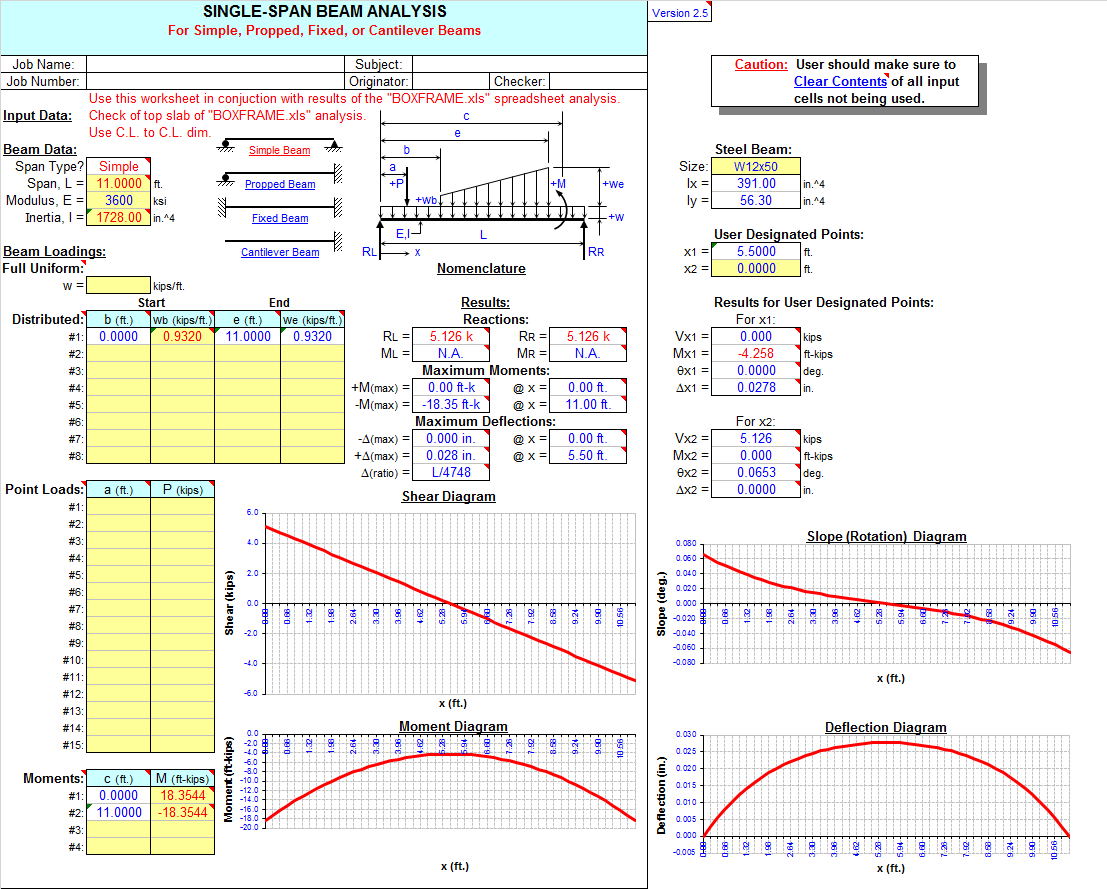

This spreadsheet workbook is special adaptation of the "BEAMANAL.xls" workbook.  It makes specific use of the "Simple-Span Beam" worksheet, which will allow the user to do both a cross-check of results of the "BOXFRAME.xls" workbook, and to perform a more detailed analysis for shear and moment at specific locations in the slabs and the walls of the box frame structure if desired.  User should read comment boxes at selected input cells for instructions on input.
The "Calculate FEM's" worksheet of this workbook may be utilized to facilitate the determination of the fixed-end moments (FEM's) for the top slab, bottom slab, and walls.

Calculation Reference
Tunnel Structures
Box Frame Assessment
Culvert

Calculation Preview
