Residual Stress.xls

Rating:
2

Description

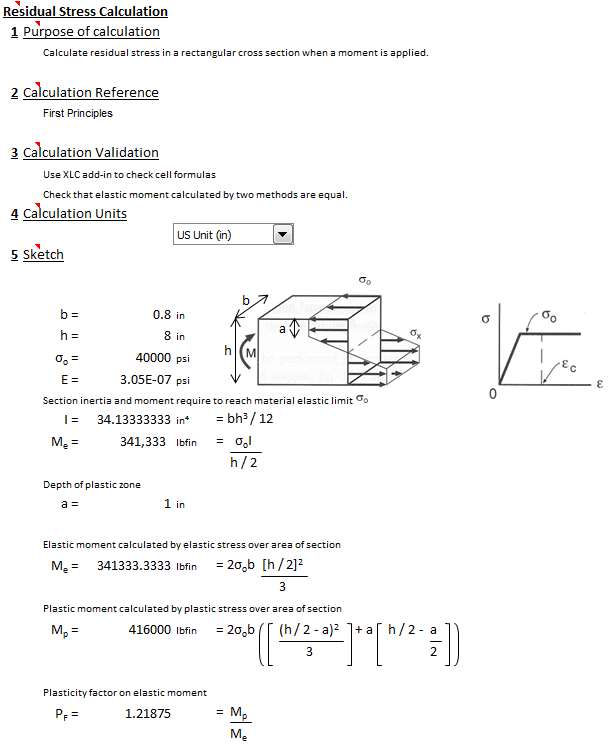

Residual Stress Calculation
Purpose of calculation
Calculate residual stress in a rectangular cross section when a moment is applied.
Calculation Reference
First Principles
Calculation Validation
Use XLC add-in to check cell formulas
Check that elastic moment calculated by two methods are equal.
Any Consistent Calculation Units
Section inertia and moment require to reach material elastic limit
Depth of plastic zone
Elastic moment calculated by elastic stress over area of section
Plastic moment calculated by plastic stress over area of section
Plasticity factor on elastic moment

Calculation Reference

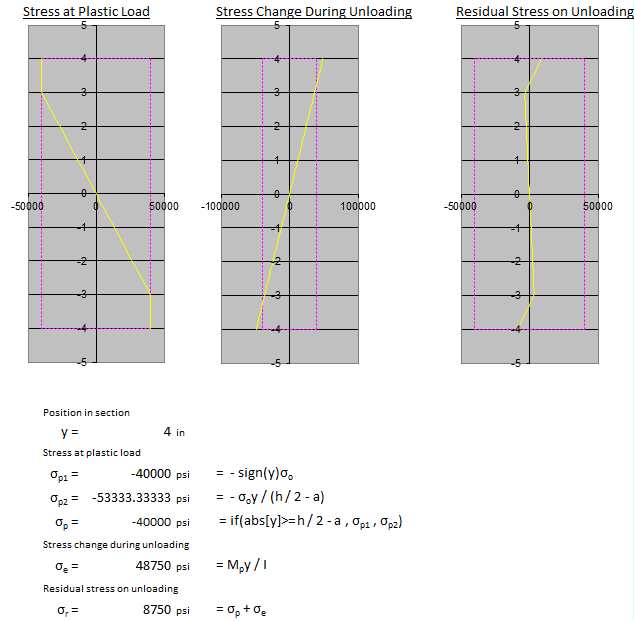

Residual Stress
Formulas for stress and strain
Stress analysis

Calculation Preview

Uploaded
19 Jul 2011
Last Modified
19 Jul 2011
File Size:
364.50 Kb
Downloads:
52
File Version:
1.0
File Author:
John Doyle
Rating:
2


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Be the first to comment! Please sign in or register.
