SCF circular shaft with keyseat.xlsx

Rating:
2

Description


Purpose of calculation:
Calculate Stress Concentration factor in circular shaft due to keyseat.

Calculation Procedure:

Diameter
Radius at keyseat
Bending Moment
Axial load in bar
Nominal Stress in bar
Stress at location A at α=10°
Depth of keyseat
Width of keyseat
Stress at location B
Validity Checks

Calculation Reference
Stress Concentration Factors Peterson
Stress Pilkey
Formulas for stress and strain Roark

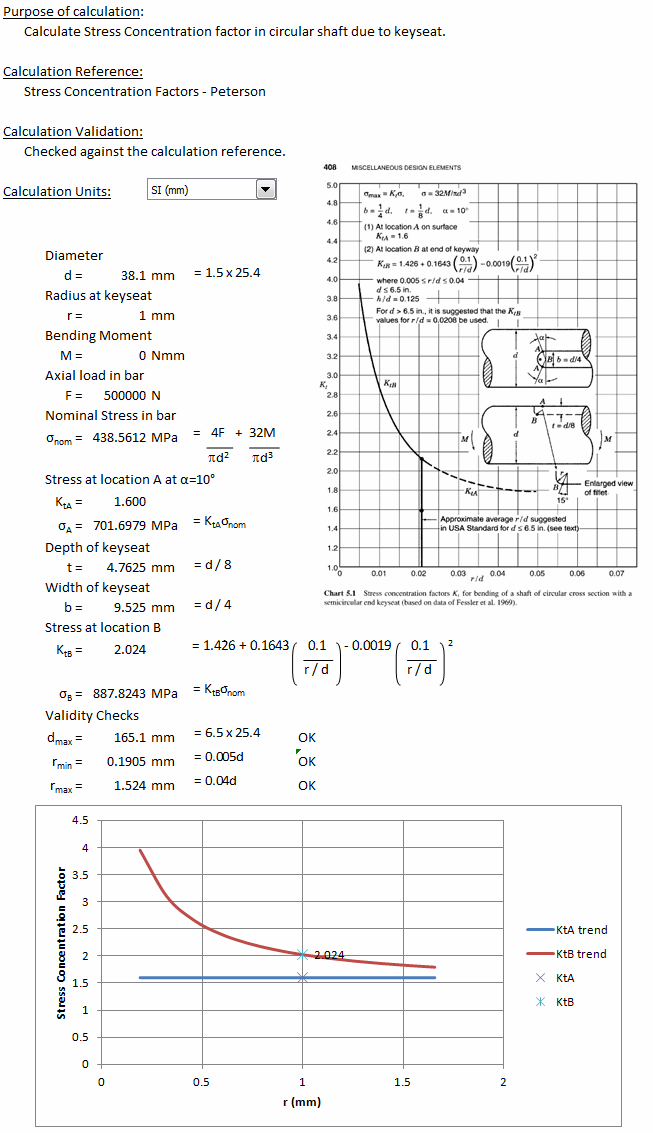

Calculation Preview

Submitted On:
26 Feb 2010
File Size:
71.82 Kb
Downloads:
64
File Version:
1.0
Rating:
2
