Tripple Spring Damper.xls

This Download is for Registered Users Only.
Please login or Register (free plans available).

Description:

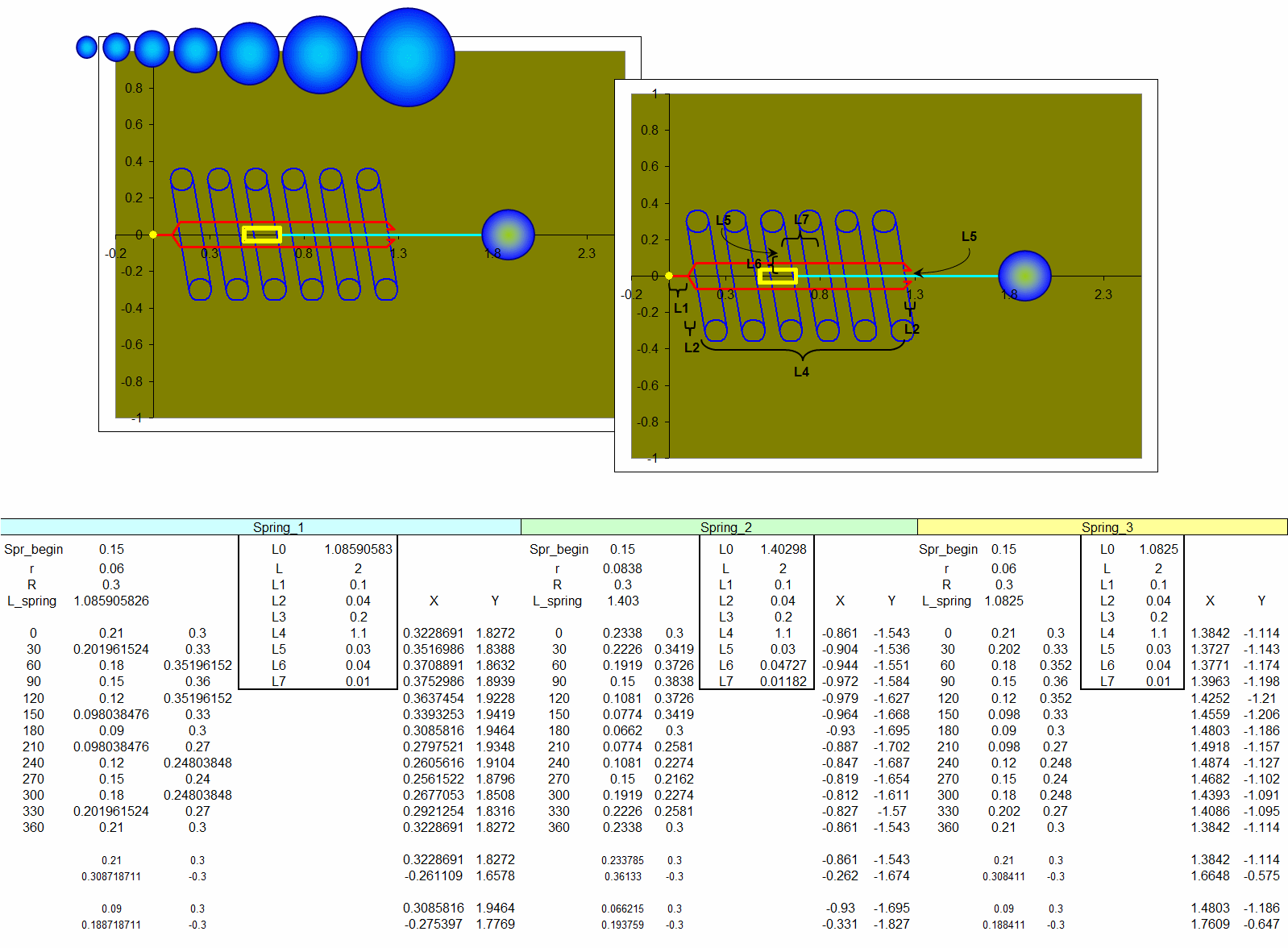

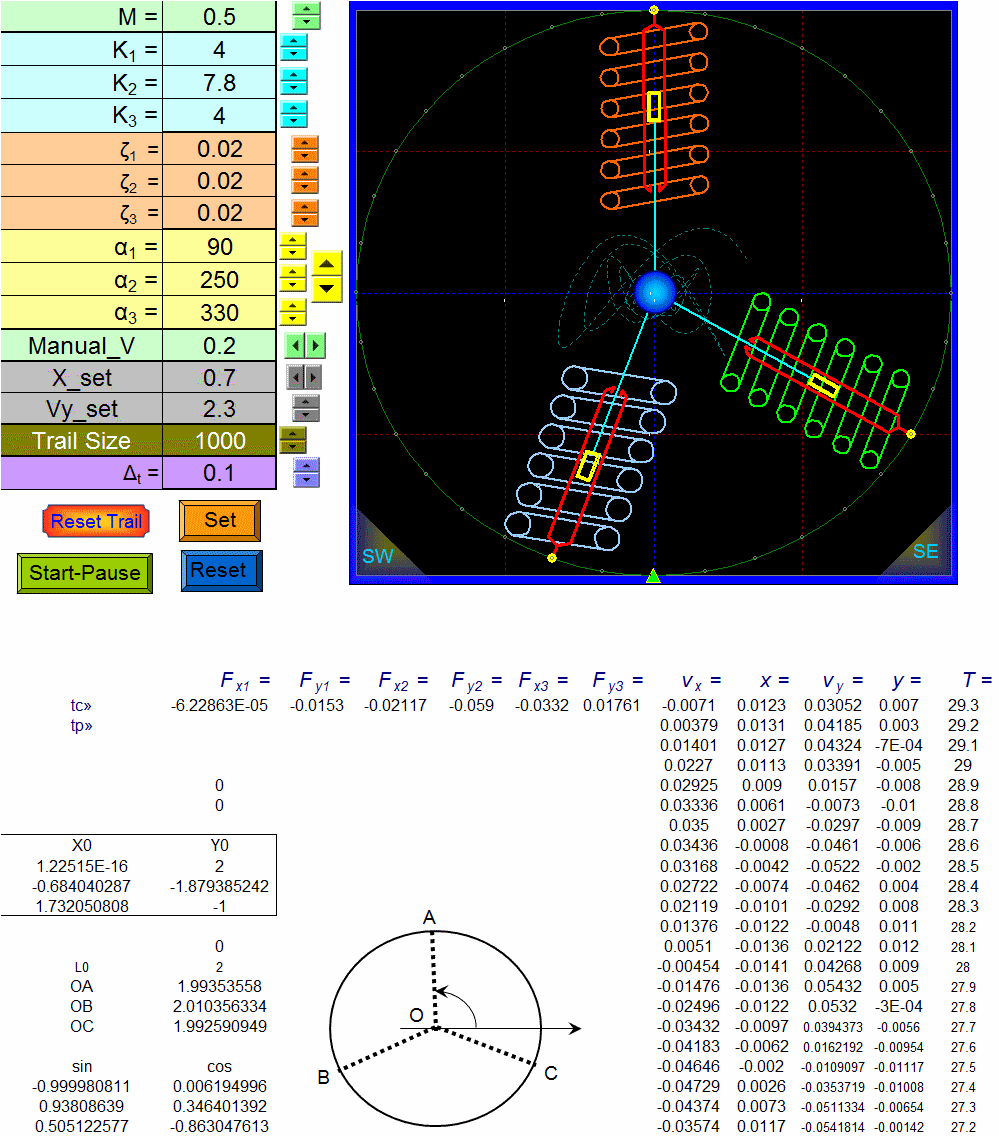

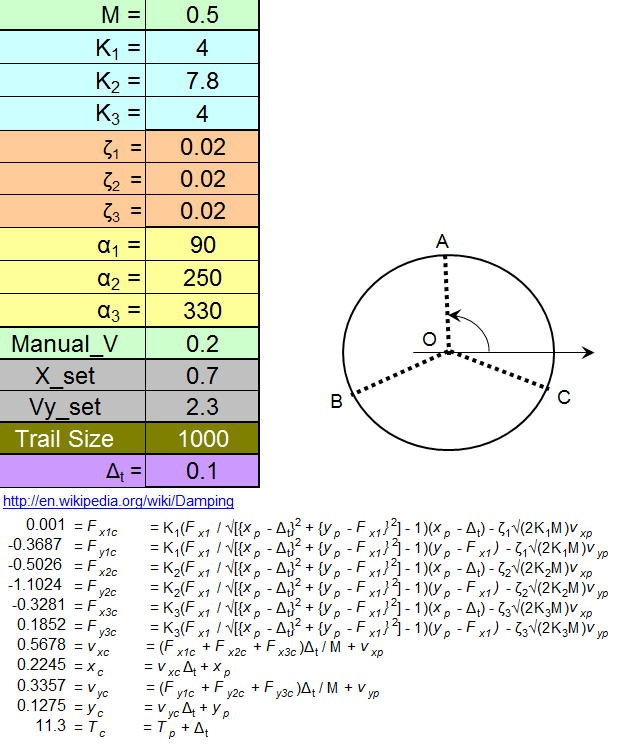

This excel spreadsheet calculates the real time response of a mass supported by three springs with dampers. Offset the mass using the “Set” button then press the “Start-Pause” button. The dynamic position of the mass is calculated by numerical methods assuming a small time step. The springs are animated using an excel scatter chart and previous positions are shown with a trail line.

WARNING: Remember to switch off XLC automatic features before starting the simulation. It will slow you down.

A video accompanies this repository item:

	Tripple Spring Damper
	One mass and three spring dampers is used to create and Excel spirograph. Its an impressive demonstration of Excel used as a simulation tool. It was created by George Lungu.
