Civil engineering Long Profiles and Sections

This Excel calculation can be downloaded by ExcelCalcs subscribers.Please login or Subscribe.

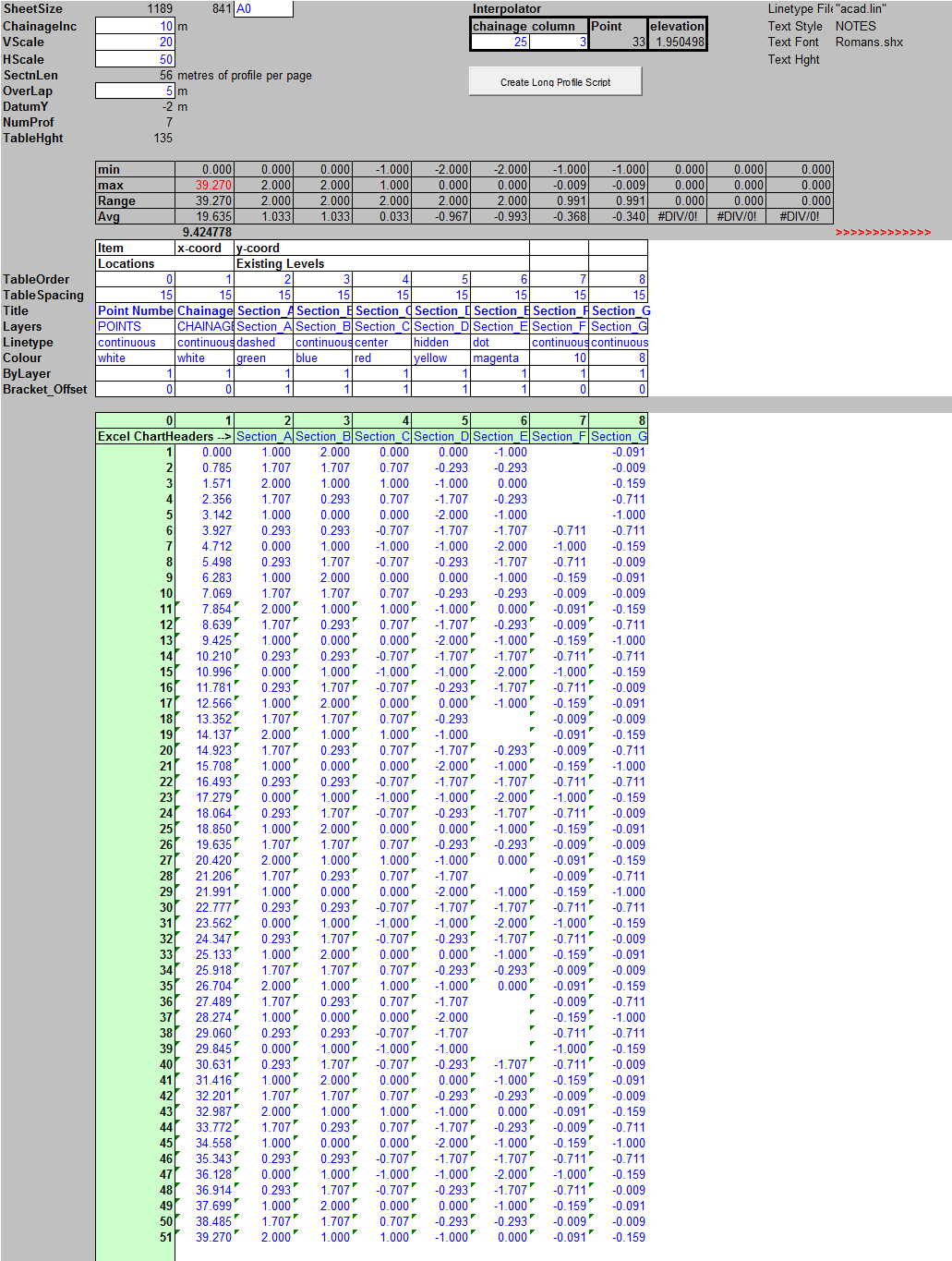

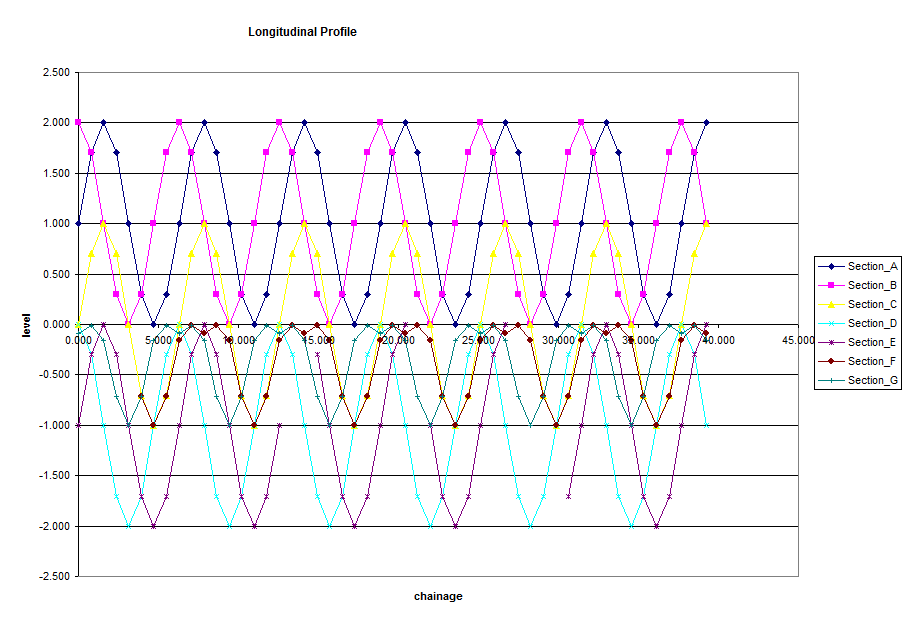

Excel/VBA procedures to generate ACAD LT scripts for drawing long profiles: top of kerb, crown of road, centre line of sewer, river cross section etc. The routines permit use if different horizontal and vertical scales. Additionally the data tables can be based on linear interpolation between given spotheights. That is spot heights given can be random intervals, but tabulated values can be at uniform distances.

Version History
Subscribe to this topic and get notified by mail about new posts Favorite to this topic Discuss this item in the forum. Check the version history to see how this calculation has changed over time. Use the Subscribe button to receive an automatic email should this calculation be updated to a higher version. Use the Favourite button so you can easily find this calculation in the future.
