CONTACT STRESSES


Description:

Calculation Preview

In most problems of stress analysis, the stress field is found within a solid body without regard for local effects caused by the application of the load; however, whentwo solid bodies with curved surfaces are forced together, consideration must be given to the special stress field created near the contact area. Gears and rollingelementbearings are two notable examples of machine parts in which contact stresses are of great importance in determining the operating life.
Contact problems are classified as counterformal if the dimensions of the area of contact are small compared to the radii of curvature of the contacting surfaces near the region of contact. If the dimensions of the contact area are not small with respect to the radii of curvature of the contacting surfaces, the problem is classified as conformal. A counterformal problem is called Hertzian if the contacting surfaces can be approximated by quadratic functions in the region of contact. If the quadraticapproximation is invalid, the problem is non-Hertzian. All conformal problems are non-Hertzian.

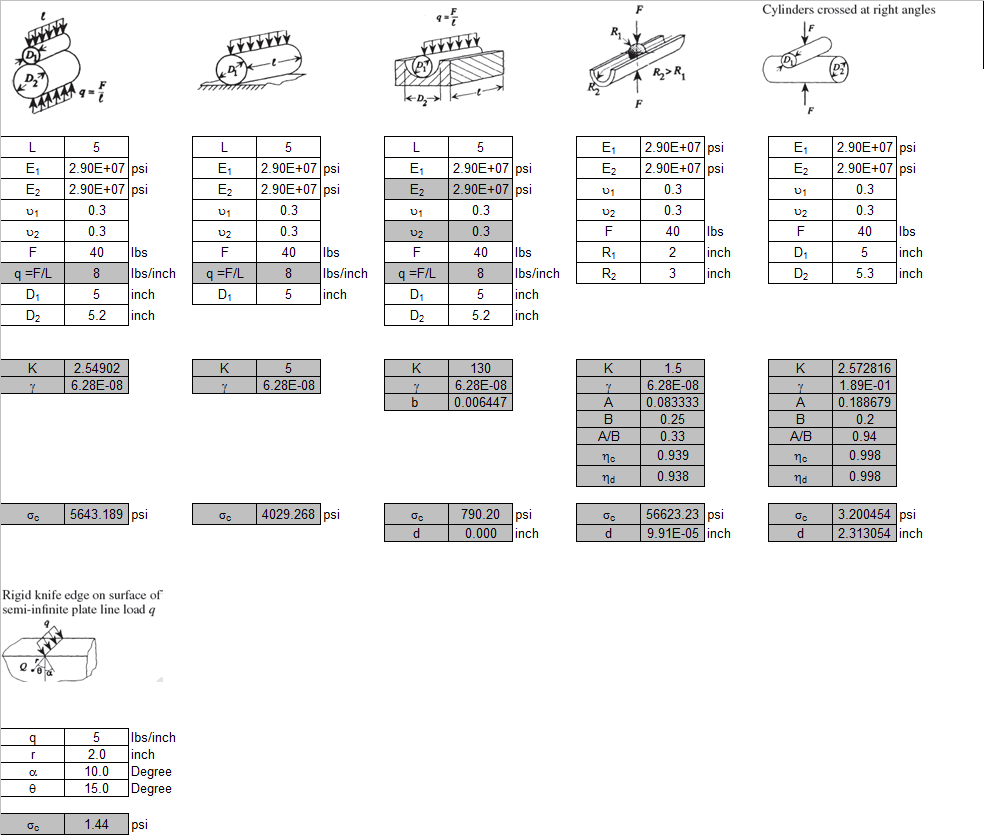

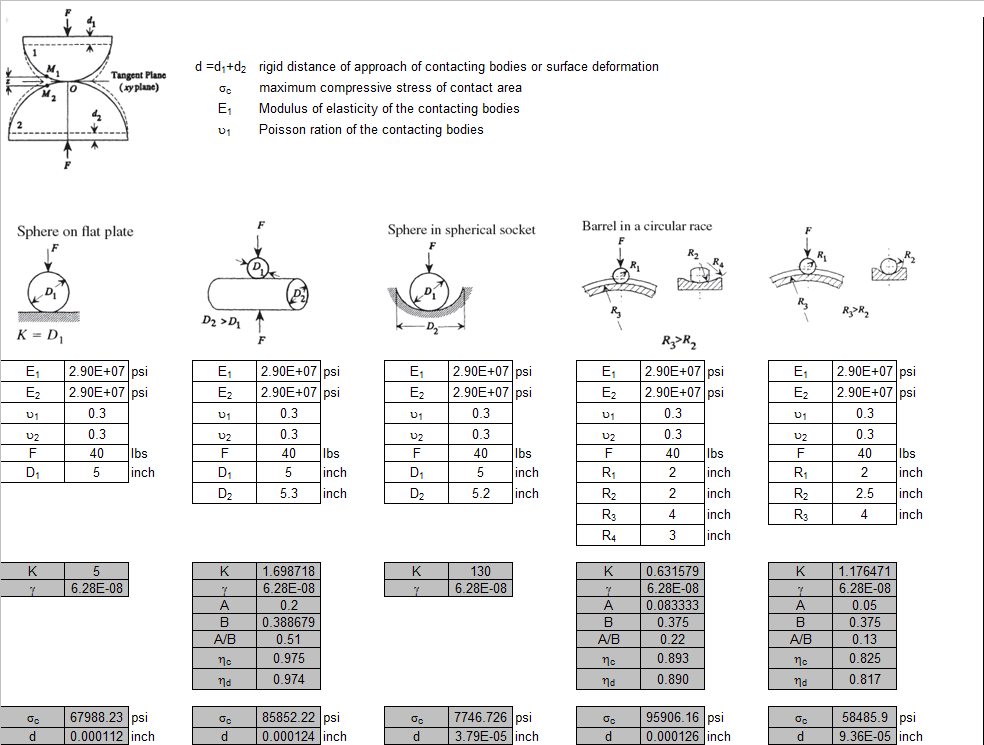

The following spreadsheet presents analysis of Hertzian contact stresses when two bodies with arbitrarily curved surfaces are pressed together.

Calculation Reference
Contact Stress
