Rectangular Dimensions of Nested Ring / Flange Segments / Sectors Calculator

Rating:
4

Description

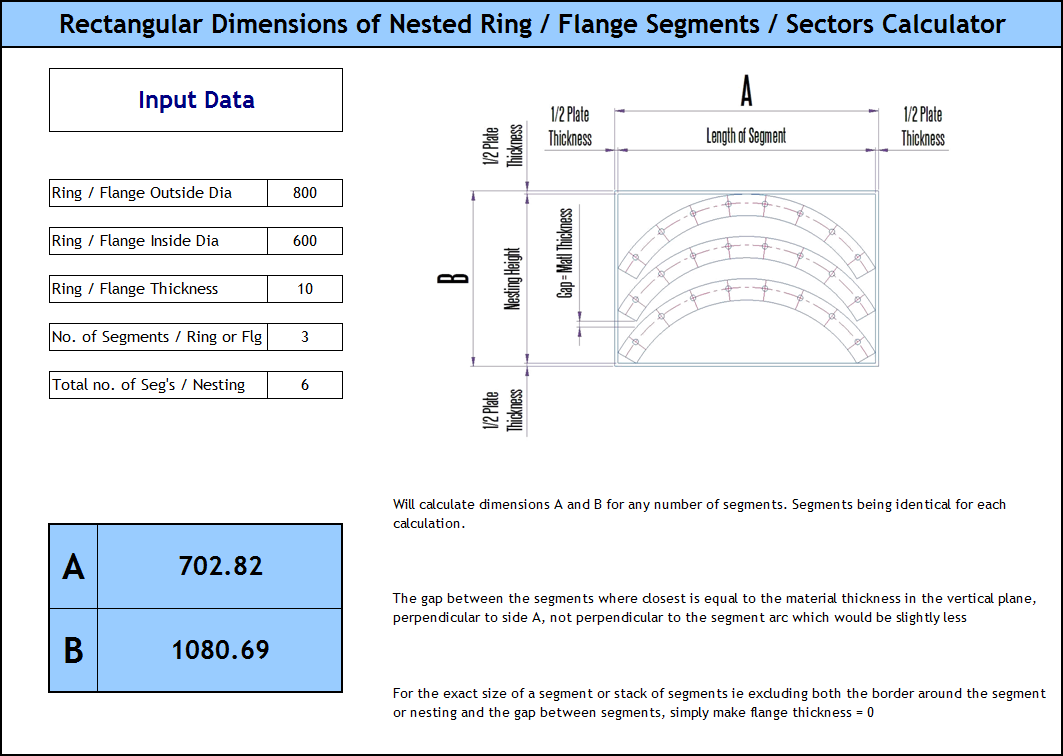

Will calculate dimensions A and B for any number of segments. Segments being identical for each calculation. The gap between the segments where closest is equal to the material thickness in the vertical plane, perpendicular to side A, not perpendicular to the segment arc which would be slightly less.For the exact size of a segment or stack of segments ie excluding both the border around the segment or nesting and the gap between segments, simply make flange thickness = 0

Calculation Reference
Geometry
Nested Plates
Machinery Design

Calculation Preview

Uploaded
12 Jul 2011
Last Modified
13 Jul 2011
File Size:
115.00 Kb
Downloads:
39
File Version:
1.0
File Author:
David Lees
Rating:
4
