Area Moments of Inertia.xls

Rating:
11

Description

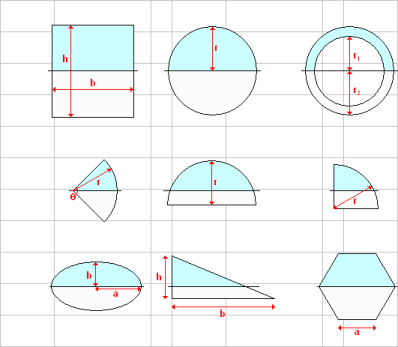

Area Moments of Inertia for some standard shapes

Calculation Reference

The area moment of inertia, also known as the second moment of area, is a property of a shape that measures its resistance to bending and deflection. Here are the area moments of inertia for some standard shapes:

  1. Rectangle:

Ix = (b * h^3) / 12 Iy = (h * b^3) / 12

Where: Ix = moment of inertia about the x-axis Iy = moment of inertia about the y-axis b = width of the rectangle h = height of the rectangle

  1. Circle:

I = (pi * d^4) / 64 = (pi * r^4) / 4

Where: I = moment of inertia about the central axis d = diameter of the circle r = radius of the circle

  1. Hollow Circle (Circular Ring):

I = (pi * (d_o^4 - d_i^4)) / 64 = (pi * (r_o^4 - r_i^4)) / 4

Where: I = moment of inertia about the central axis d_o = outer diameter of the circular ring d_i = inner diameter of the circular ring r_o = outer radius of the circular ring r_i = inner radius of the circular ring

  1. I-Beam:

Ix = (1/12) * (b_f * h_f^3 + b_w * h_w^3)

Where: Ix = moment of inertia about the x-axis b_f = width of the flanges h_f = height of the flanges b_w = width of the web h_w = height of the web

  1. Triangle:

Ix = (b * h^3) / 36 Iy = (h * b^3) / 48

Where: Ix = moment of inertia about the x-axis Iy = moment of inertia about the y-axis b = base of the triangle h = height of the triangle

These formulas provide the area moments of inertia for various standard shapes, which are essential for calculating stresses, deflections, and other mechanical properties in structural and mechanical engineering applications.

Uploaded
14 May 2007
Last Modified
28 Apr 2023
File Size:
56.50Kb
Downloads:
836
File Version:
1.0
Rating:
11


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
J5627617123 15 years ago
Shaded areas in figures imply partial areas, but equations are for full areas.Areas of sheet are locked, forcing all calculations to be in mm.
J5627617123 15 years ago
Shaded areas in figures imply partial areas, but equations are for full areas.Areas of sheet are locked, forcing all calculations to be in mm.
JohnDoyle[Admin] 17 years ago
Clear and concise calculations for area moments of simple shapes.
