Reinf Conc. Staircase ACI-318-08

Rating:
5

Description


This spreadsheet does the complete design and calculations for a single flight reinforced concrete staircase.

Design for Staircase
ACI 318 - 08

The sub-titles of the calculation are:
Dimensions of Staircase
Calculations for Dead Weight
Live Load
Loading Combinations
Designing for Flexure
Calculating for Maximum Reinforcement
Calculating for Minimum Reinforcement
Calculating for Maximum Reinforcement Spacing
Calculating for Reinforcement Requirements
Checking Reinforcement
Designing for Shear
Dimensions of Beams
Calculating for Dead Weight
Calculating for Live Weight
Loading Combinations
Calculating for Maximum Reinforcement
Calculating for Minimum Reinforcement
Calculating for Maximum Reinforcement Spacing
Calculating for Reinforcement Requirements
Checking Reinforcement
Designing for Shear

Calculation Reference
Concrete Design
Reiforced Concrete Design
ACI 318-08

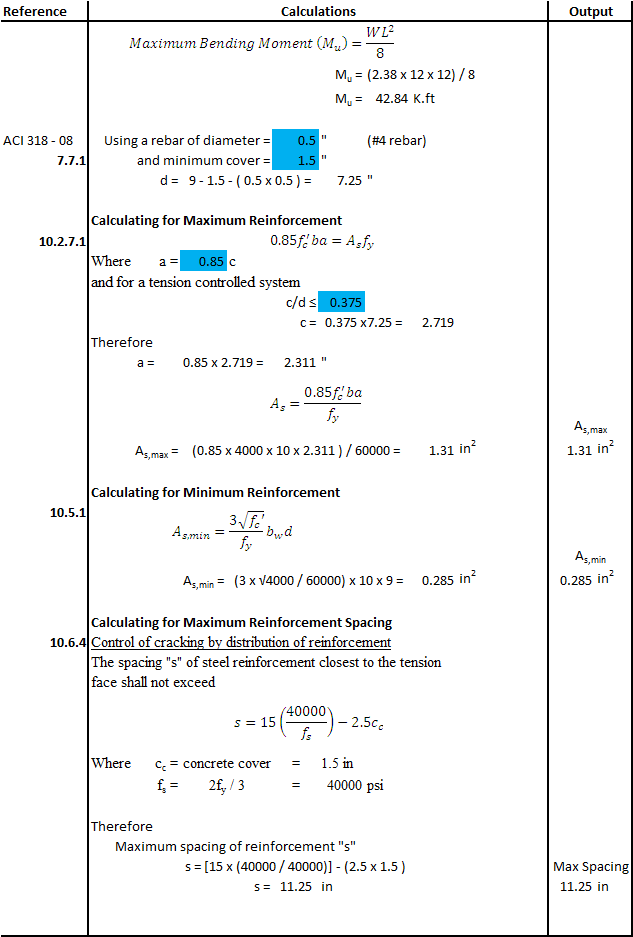

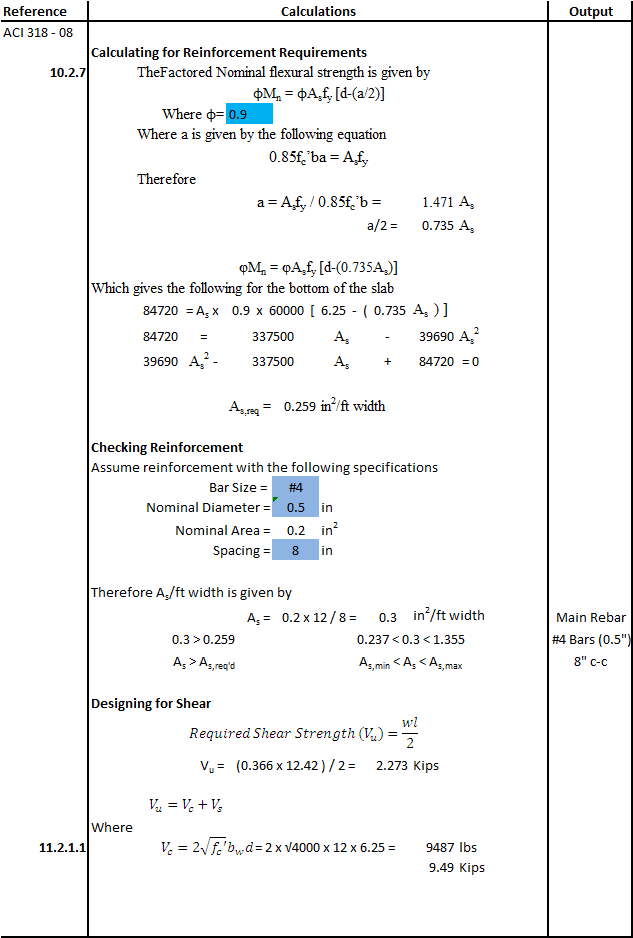

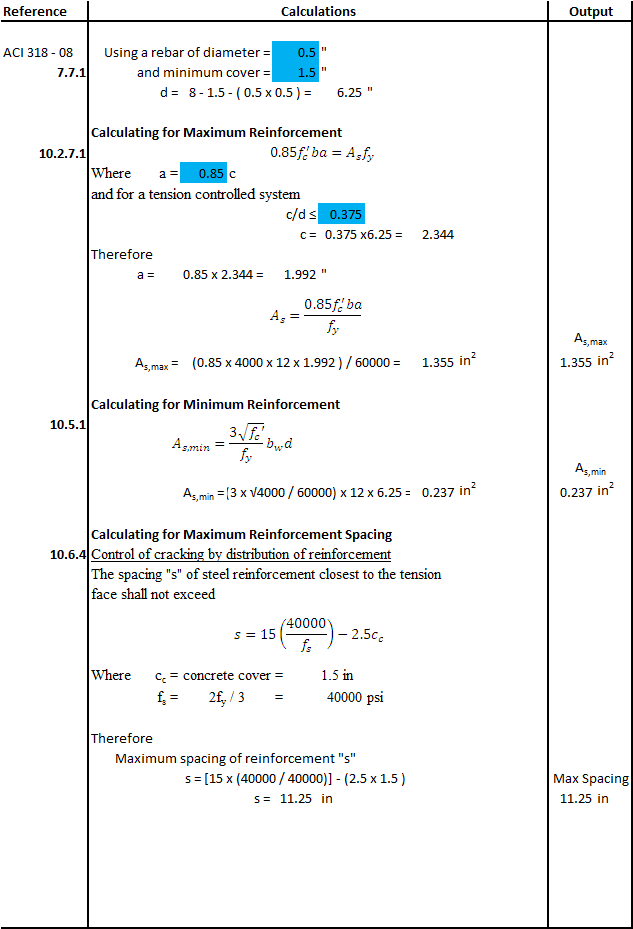

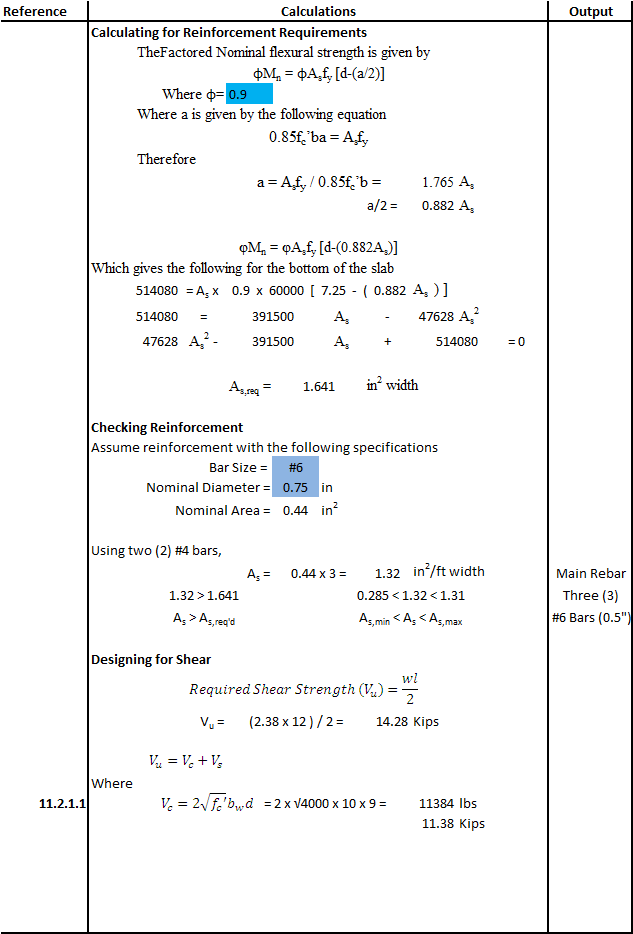

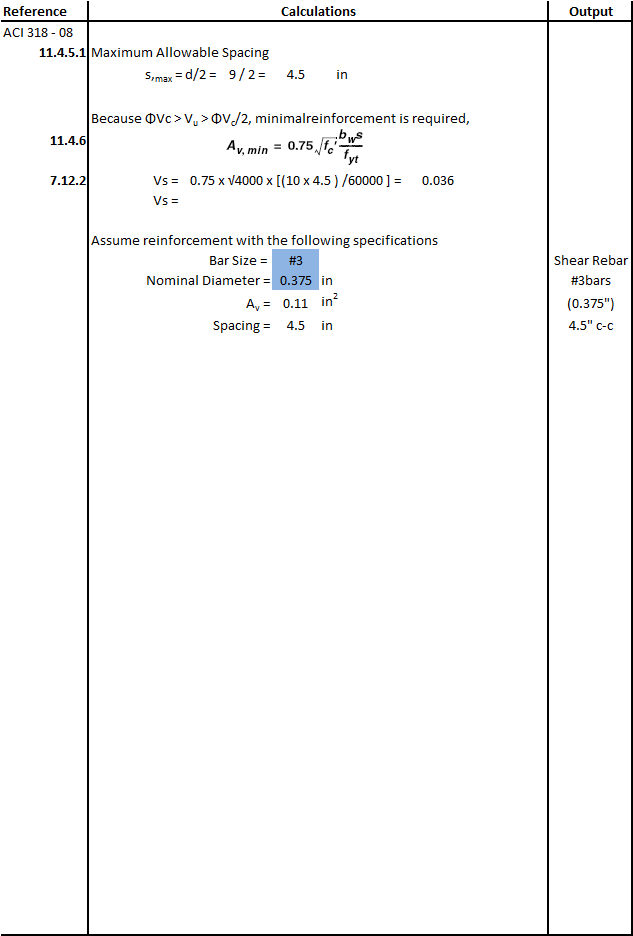

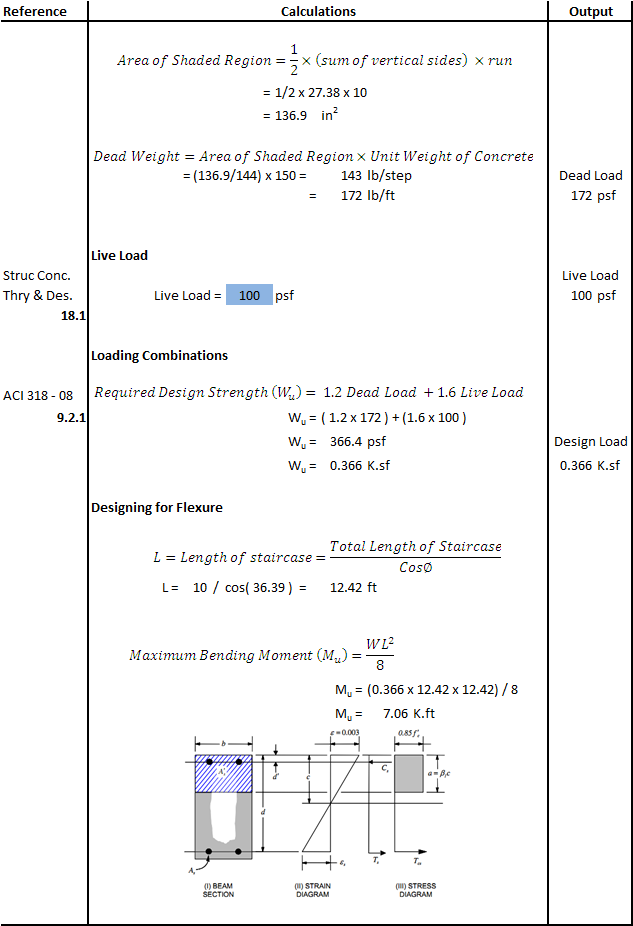

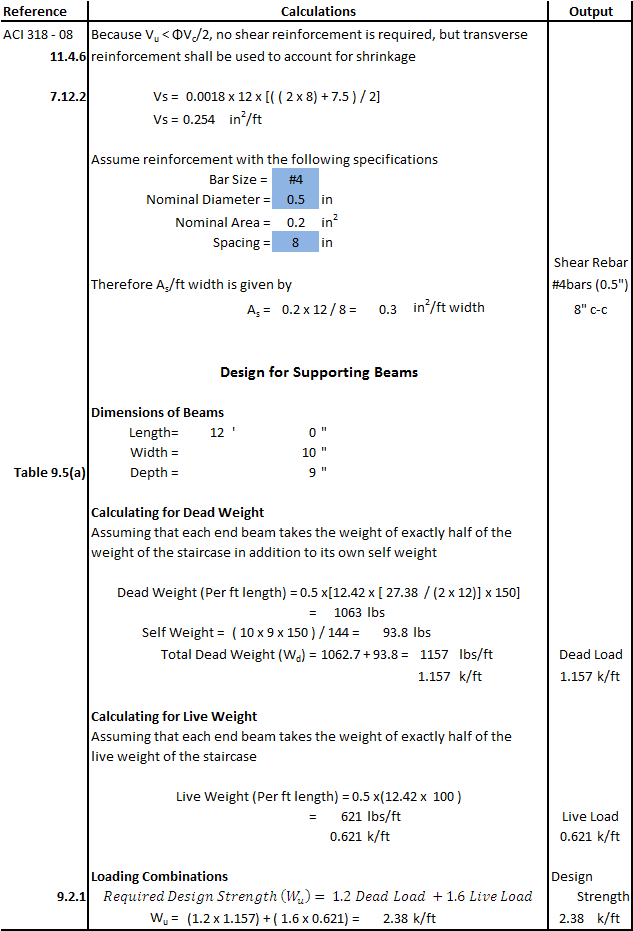

Calculation Preview

Submitted On:
08 May 2012
File Size:
100.98 Kb
Downloads:
261
File Version:
1.0
File Author:
Jahleel
Rating:
5


This download is for Registered Users Only.
Perhaps you need to login or register.
