Steel Angle Member


This Excel calculation can be downloaded by ExcelCalcs subscribers.Please login or Subscribe.

Description:
Calculation Preview

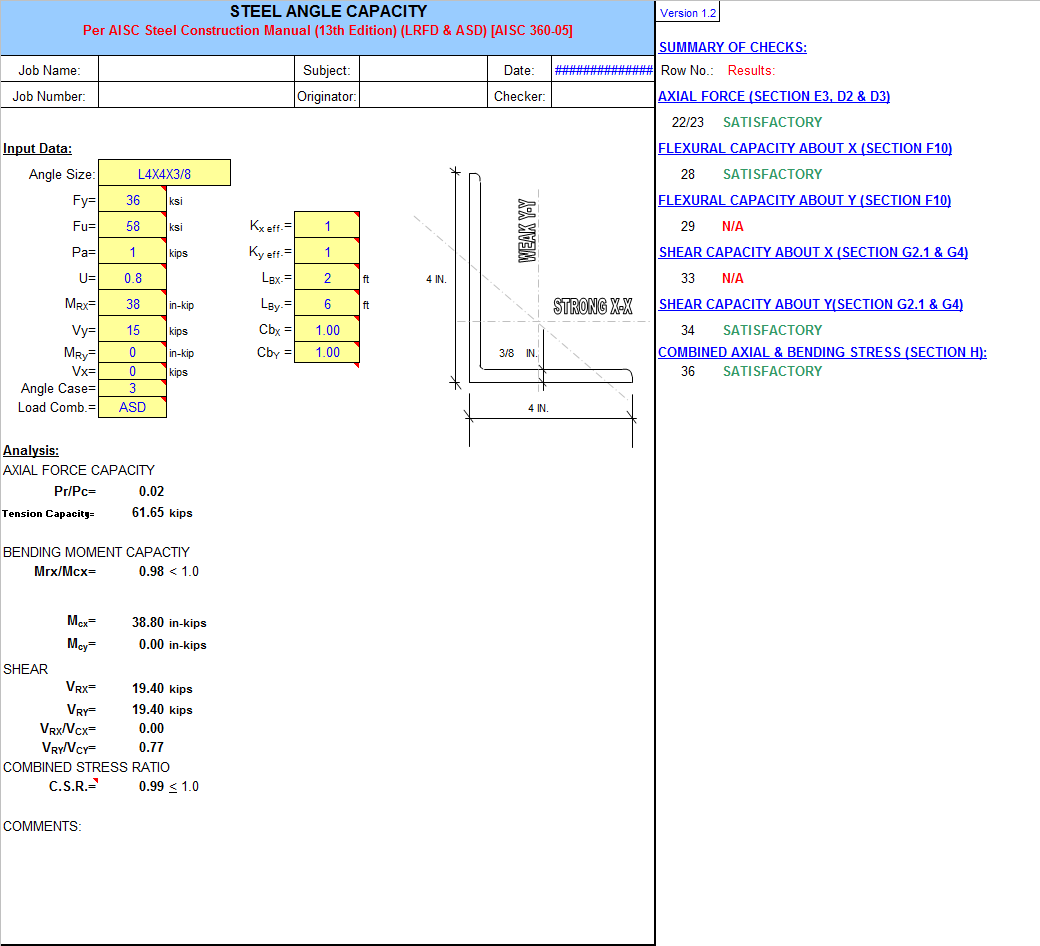

"ANGLE.xls" is a MS-Excel spreadsheet program for analysis and code check of steel beams per AISC 13th Edition and either ASD or LRFD load combinations. The spreadsheet calculates the capacity for a member subjected to major/minor axis bending, shear and axial forces. All the worksheets are protected, but not with a password. Please read the "DOC" worksheet for program details as well as assumptions and limitations. Revision 1.3

Calculation Reference
AISC Construction Manual
| Find on Amazon.com | Find on Amazon.co.uk | Find on Amazon.fr | Find on Amazon.de | Find on Amazon.ca |

Version History

Check the version history to see how this calculation has changed over time.

Subscribe to this topic and get notified by mail about new posts Favorite to this topic

Submitted On:
06 Dec 2016
Submitted By:
sumnerdave
File Date:
05 Dec 2016
File Version:
1.3
File Size:
155.50 Kb
File Type:
xls
Downloads:
611
Rating:
stars/4.gifTotal Votes:8
HTML Link:
Copy code below to your web page to create link to this page:
HTML Window:
Copy code below to your web page to create a dynamic window to this download:
Like This?:
View the profile of the person who submitted this calculation and see all their other calculations hosted at ExcelCalcs.
Need Help?:
Use the comment feature below to raise any questions relating to this download. The question will be automatically emailed the author and all users subscribing to this comment thread.

Comments


#6 sumnerdave 2016-12-05 14:52
Cell V26 and Combined stress ratio has been corrected in version 1.3.


#5 CEI 2016-12-02 15:09
I believe there is a conservative error at Cell V26. An extra set of parentheses should be added near the center of the equation. MIN((1.92.....$27))*$B$9


#4 aheigley 2009-07-21 11:46
The combined interaction equation H1-1a and H1-1b does not apply to single angles. this is an unsymmetric section, and the combined forces should be analyzed under section H2.


#3 i1901 2009-06-03 18:46
Thanks.


#2 jwt 2009-04-20 23:14
Very nice presentation, easy to use.
