Clevis and lug design V0001.xls

This Download is for Registered Users Only.
Please login or Register (free plans available).

Description:

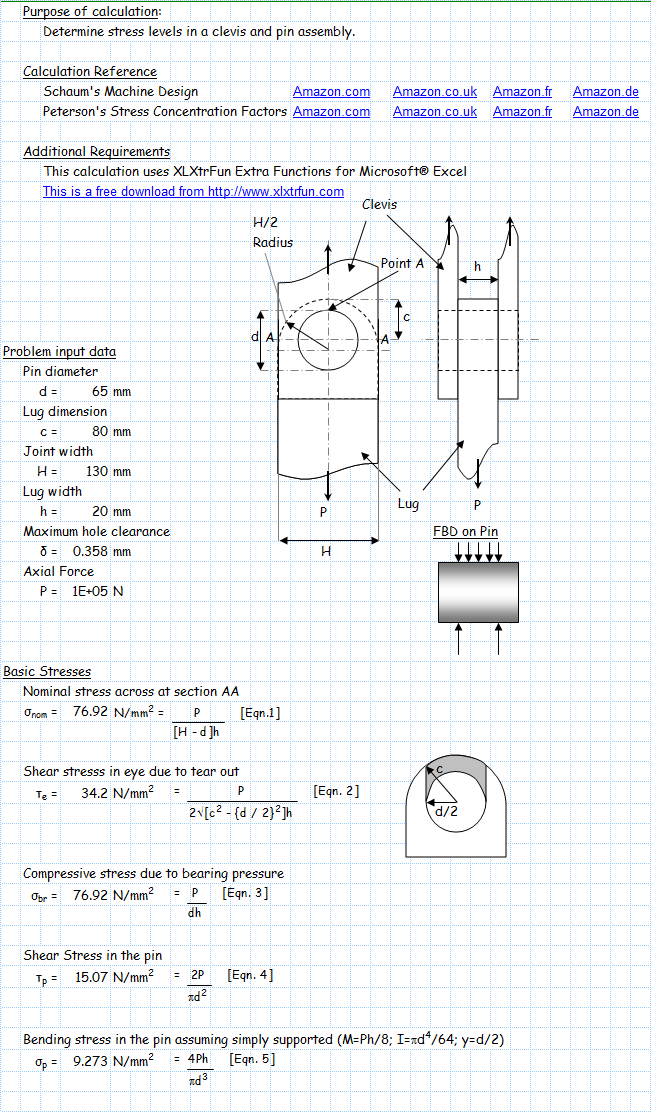

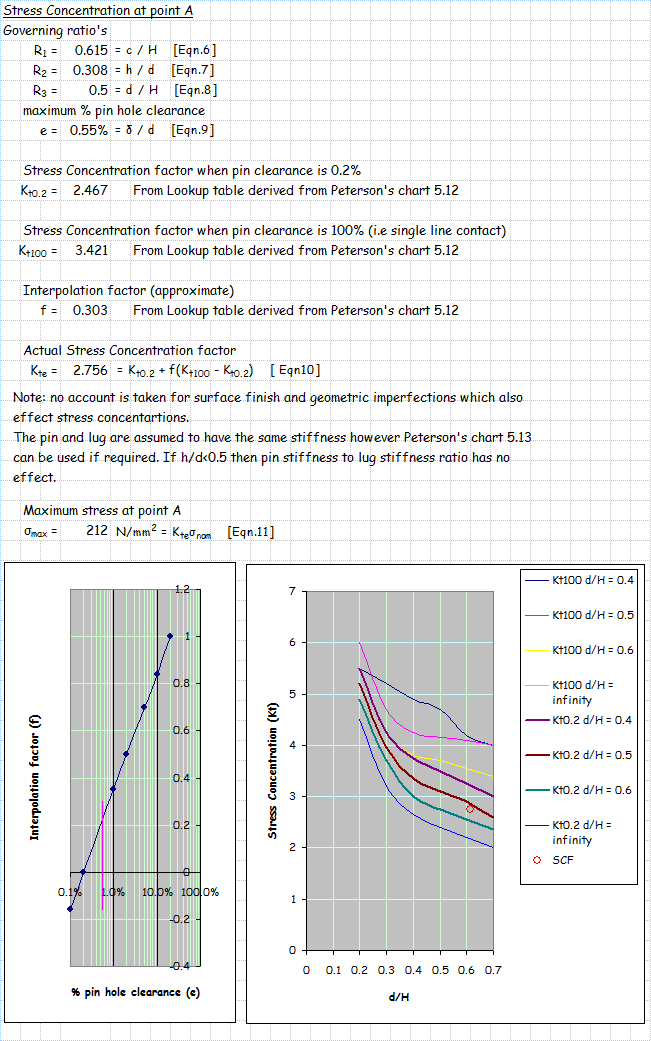

Calculation of stress concentration effects at a pin and clevis joint. This calculation requires the XLC addin and the XlXtrFun to be installed.

Calculation Reference
Peterson's Stress Concentration
| Find on Amazon.com | Find on Amazon.co.uk | Find on Amazon.fr | Find on Amazon.de | Find on Amazon.ca |
How to Give User Feedback
Use the forum link if you would like to raise a question with the author or the ExcelCalcs community. You can also leave a comment below (but only use this when you don't need a reply). Please rate any calculations you use. Your feedback encourages authors and guides other users to good content. Thank you.

Submitted On:

30 Mar 2009

Submitted By:

JohnDoyle

File Date:

14 Apr 2008

File Version:

1.1

File Size:

111.00 Kb

File Type:

xls

Downloads:

1201

Rating:

Total Votes:6

Comments



#5 Klaas 2009-04-10 09:33

Thanks.





#4 psuarez 2009-01-26 17:58

I am sorry, but shouldn't the moment for simply supported be PL/4 not PL/8? ADMIN NOTE - Follow 'Forum Link' above for author's response.





#3 JohnDoyle 2007-11-29 04:43

thekal there is nothing wrong with the calculation but you most likely need to install the XLC addin which can be downloaded from this site (follow the 'Main Menu'). At the top of the spreadsheet it does actually say that you need to install XLC if you get #NAME errors. Hope this helps





#2 thekal 2007-11-28 10:50

I have down loaded several copies of this file but found that if you alter any input item an error comes up if you go into the file to try and sort out the problem with help without changing anything ####appear has any one got this one working? please





#1 Boffin 2007-02-16 06:39

The Xlxtrfun down load is a really useful Excel addin and is put to good use here. Calculation Checks against a worked example in Peterson's.
