Lifting Eyes - AISC

Rating:
7

Description


"Lifting Eyes" is a Microsoft Excel spreadsheet which analyzes lifting eyes (pad eyes) per AISC Steel Construction Manual, 13th Edition (ASD) requirements and follows guidelines of API. US units. Lifting eyes are analyzed for: (a) For tensile rupture on the net effective area (b) For shear rupture on the effective area (c) Bearing on the projected area of the pin (d) Yielding on the gross section (e) Bending of plate due to horizontal component (f) Bending of plate due to sideways shear User inserts loading, lifting eye dimensions, and material properties. Spreadsheet is unprotected and safety factor assumptions can be adjusted.

Calculation Reference
AISC
Steel Design
Structural Steel Design

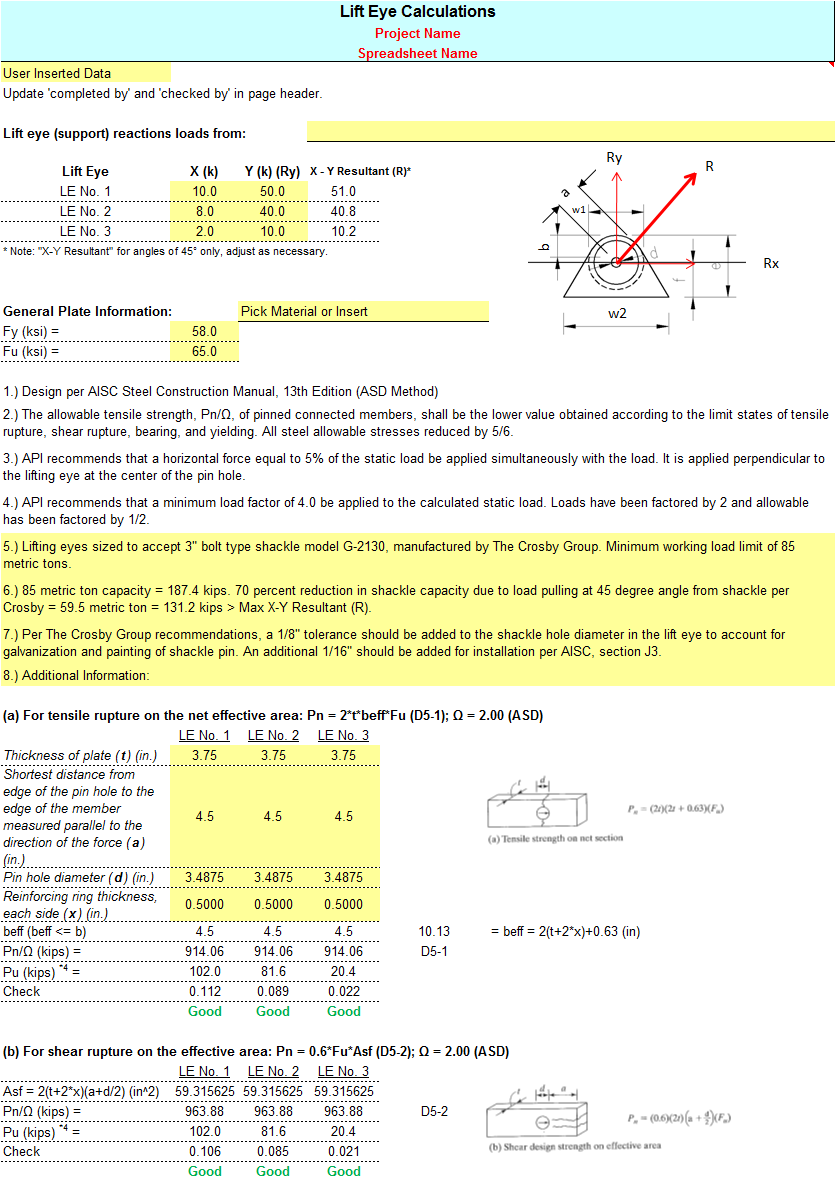

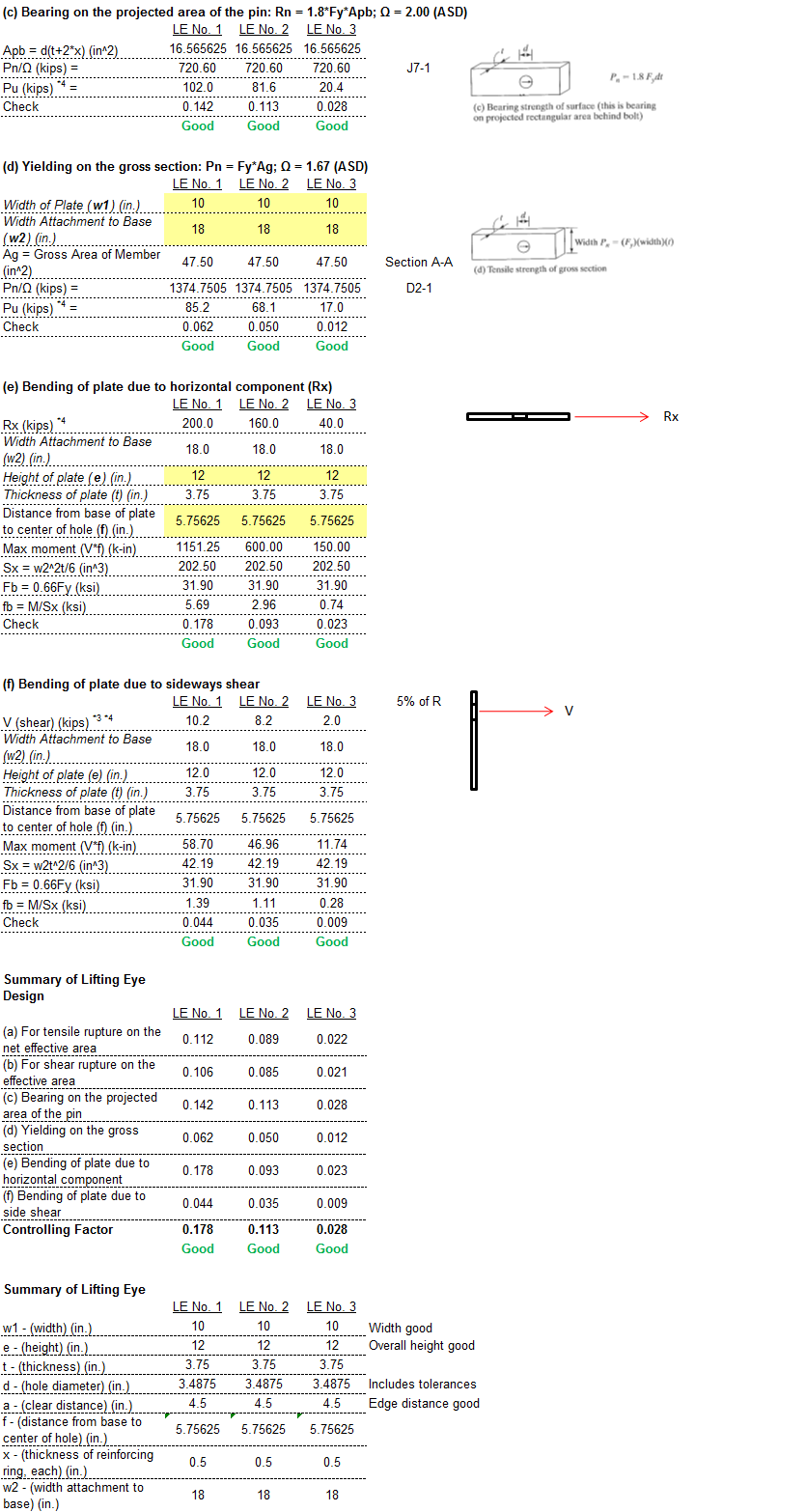

Calculation Preview

Submitted On:
13 Jul 2011
File Size:
272.50 Kb
Downloads:
331
File Version:
1.0
File Author:
Gabriel
Rating:
7


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 5
JohnDoyle[Admin] 11 years ago
I appreciate the effort it takes to upload calculations gmmolina so I am only too happy to reward you with free subscriptions. Thanks also for supporting your upload too. Regarding the weld calculations I think your answer is entirely satisfactory. I'll just add the links to direct anyone following the calculation comments:
WELDGRP.xls
and for metric users
WELDGRP Metric.xls
gmmolina 11 years ago

Clint, that is a great idea. I have another version of the lifting eye spreadsheet which uses Alex Tomanovich's WELDGRP.xls spreadsheet but did not include it as I wasn't sure if that was allowed. I will look into it. Thank you.
gmmolina 11 years ago

John, thank you for the subscription.
cstrain 11 years ago
It would be helpful to add a weld calculation to this set of calculations so the user doesn't have to extract the load information into another spreadsheet to evaluate/select a weld.
Thanks for the work you have done.
Clint Strain, PE
JohnDoyle[Admin] 11 years ago
Thanks for your début calculation I have awarded you a free 3 month XLC Pro subscription by way of thanks. Administrator.
