Hatch/Door Actuator Design

Rating:
1

Description


I used this to calculate the required force to open a boat hatch using a hydraulic actuator. User can input the hatch length, weight and cg location relative to the hinge. The location of the actuator mounting points, also relative to the hinge, can also be defined. The spreadsheet calculates the force that the actuator would need to reach equilibrium and graphs the force vs angle curve from 0 to 90 deg. Always use safety factors for lifting anything overhead!

Calculation Reference
Hydraulic Cylinders
Pinned Connections
Actator Design

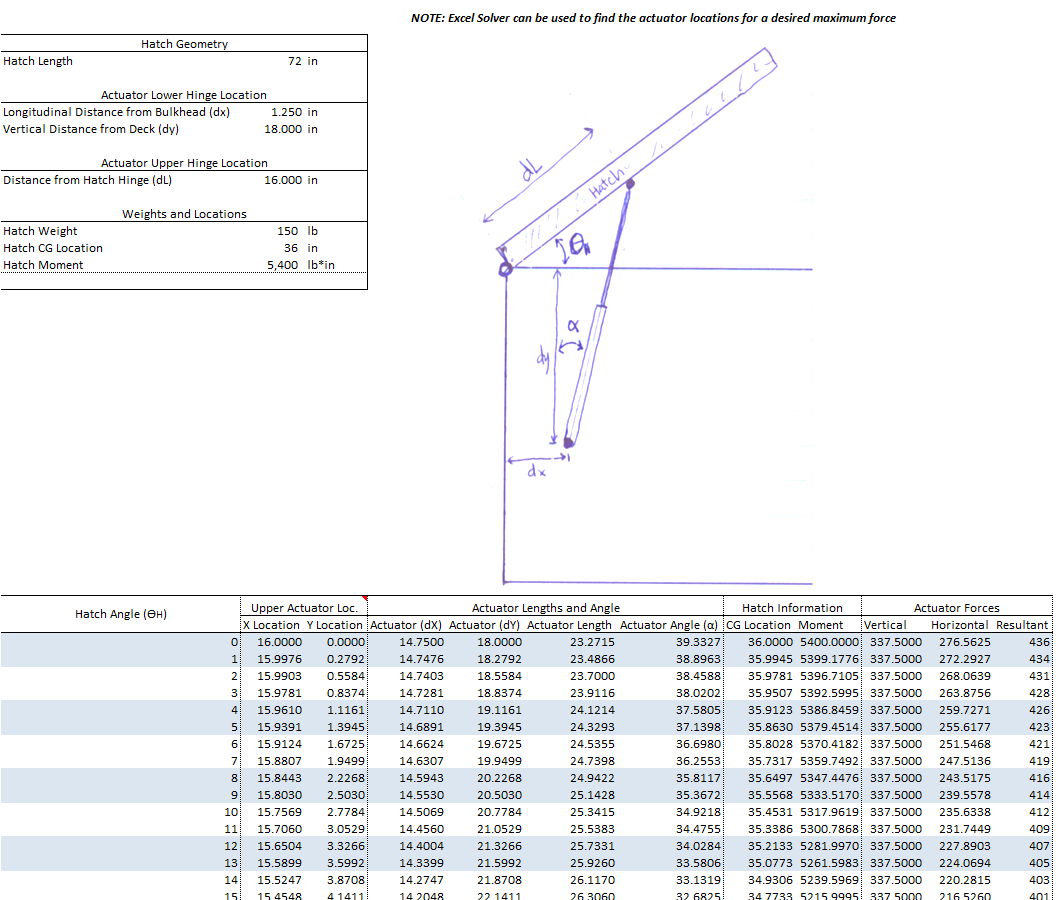

Calculation Preview

Uploaded
11 Jul 2014
Last Modified
12 Jul 2014
File Size:
703.95 Kb
Downloads:
53
File Version:
1.0
File Author:
Roland Cranford
Rating:
1


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
JohnDoyle[Admin] 10 years ago
Thanks for your contribution I have awarded a 3 month extension to your XLC Pro subscription by way of thanks. [Admin]
