Control Valve Calculations Compressible and Incompressible Flow

Comprehensive valve sizing calculation spreadsheet, the main engineering principle being followed is Control Valve Sizing using the Cv Flow Coefficient.

Core Engineering Principle:

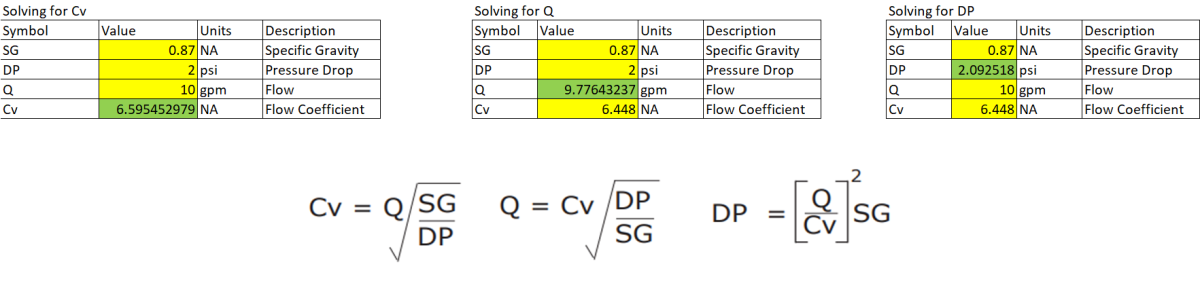

Cv (Flow Coefficient) is a standardized measure of a valve's capacity to pass fluid under specific conditions. It represents the flow rate in gallons per minute (GPM) of 60°F water that will pass through a fully open valve with a 1 psi pressure drop across it.

The Fundamental Relationships:

The calculation follows these basic principles:

1. Flow is proportional to valve size and pressure drop - Larger valves and higher pressure differences allow more flow
2. Fluid properties affect flow capacity - Denser fluids (higher specific gravity) flow slower than lighter fluids under the same conditions

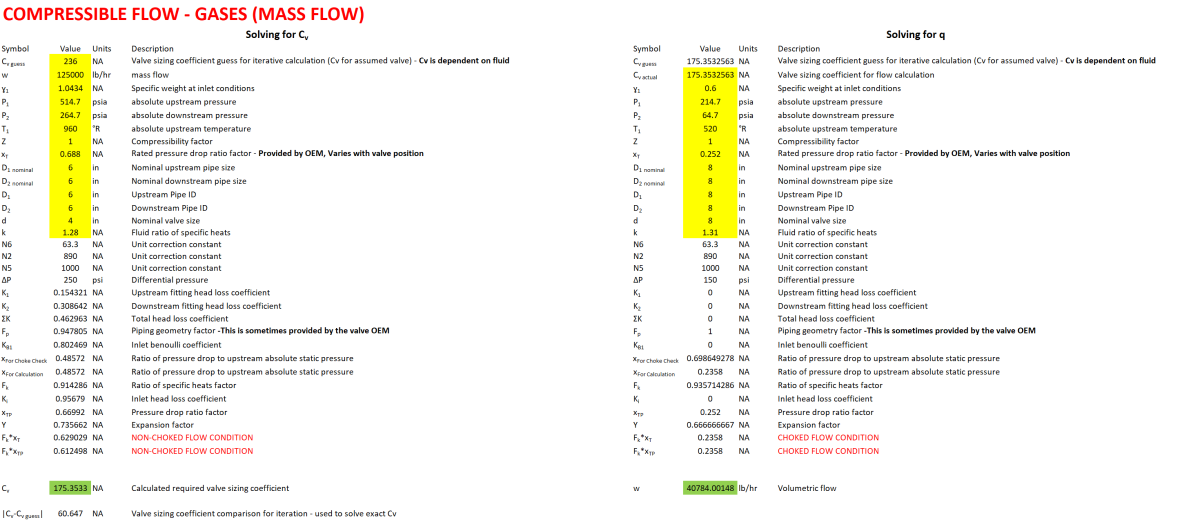

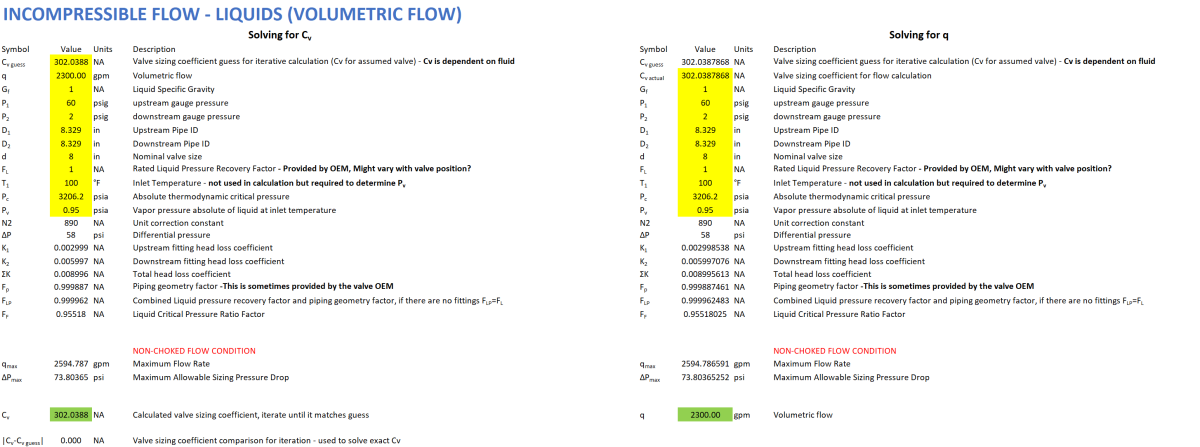

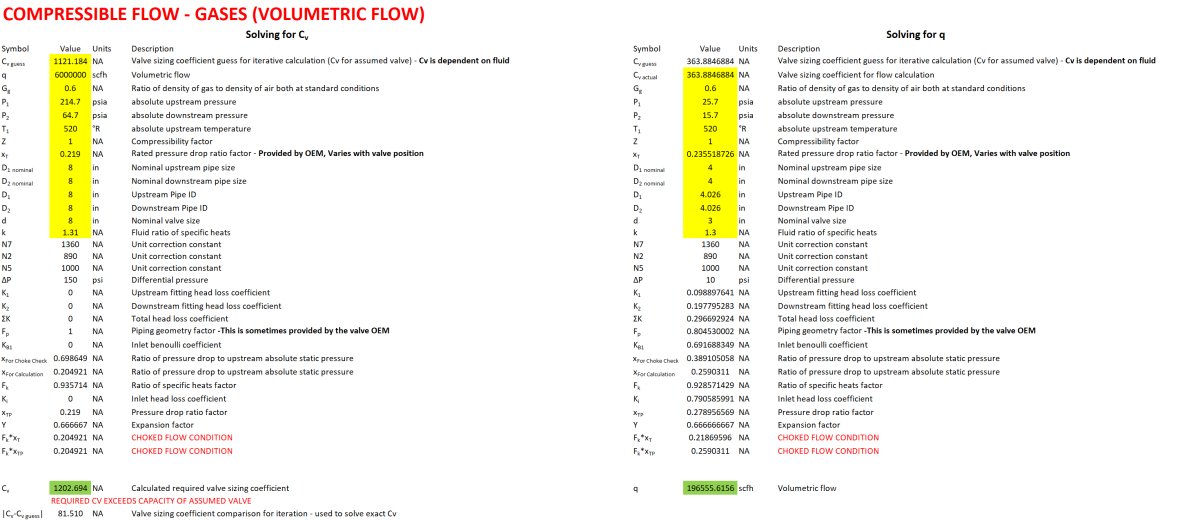

3. Compressible vs. Incompressible behavior - Gases expand as pressure drops, requiring different calculations than liquids
4. Choked flow limitations - There's a maximum flow rate beyond which increasing pressure drop won't increase flow (critical for gas applications)

What the Calculation Does:

The spreadsheet systematically applies industry-standard formulas (likely ISA-75.01 or IEC 60534 standards) to:

• Size valves by calculating the required Cv for given flow conditions
• Predict flow rates for existing valves under specific pressure conditions
• Account for real-world factors like pipe fittings, fluid compressibility, and temperature effects
• Check for choked flow conditions where normal sizing equations break down

Practical Application:

This is essentially an engineering "recipe book" that ensures valves are properly sized for their intended service - too small and you won't get enough flow, too large and you lose control precision and waste money. The iterative calculations ensure the math converges to the correct answer even when multiple variables interact in complex ways.

The principle is fundamental to process industries where precise flow control is critical for safety, quality, and efficiency.
