# Velocity Pressure for Nozzle (Sprinkler)

### Description

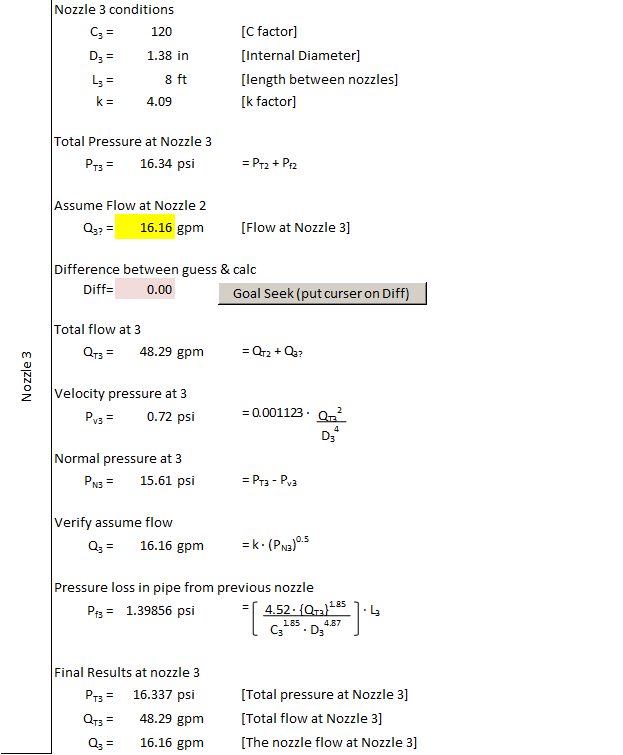

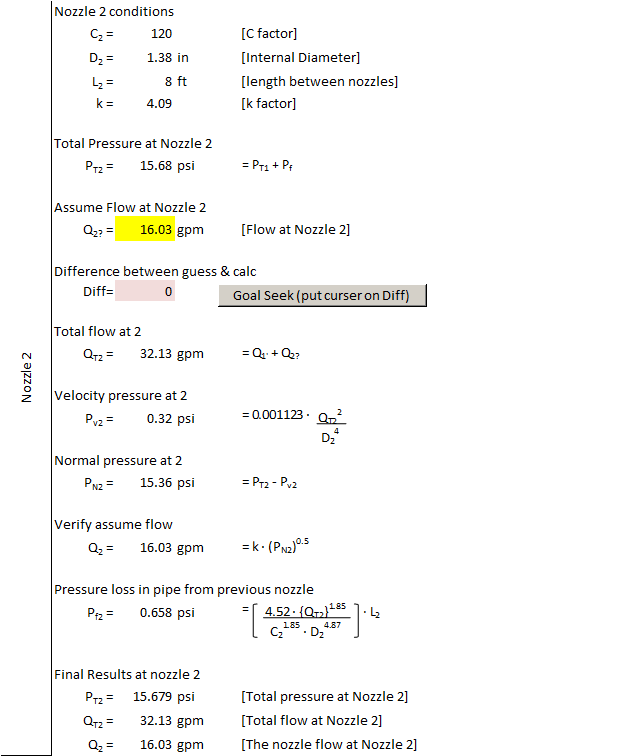

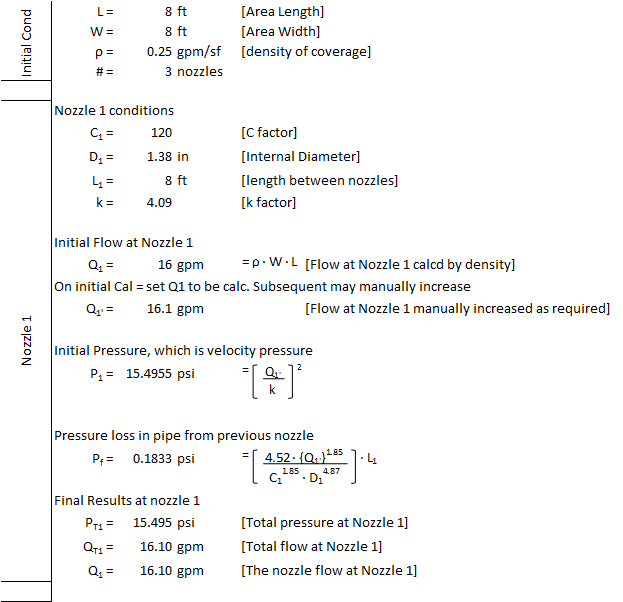

I had a colleague struggling with velocity pressure calculations for one of his NICET IV exam so I put he following together for him to be able to follow the process and recreate them by hand if necessary. The hand calc is less fun because it is an iterative process, much more easily handled by goal seek.

Note that in my spreadsheet I have the macro built in and the file is an .xlsm file, but this is a basic .xlsx file without the macro (internet safe). However, reprogramming the goal seek or just manually doing it should be intuitive for anyone using the calc.

**Calculation Reference**

Fluid Mechanics

Fluid Nozzle Design

Velocity Pressure for Nozzle Sprinkler

In fluid mechanics, the velocity pressure for a nozzle, also known as a sprinkler, is a measure of the kinetic energy of the fluid as it is discharged from the nozzle. The velocity pressure is important in designing and operating fluid systems, such as fire sprinkler systems, irrigation systems, and water spray systems.

The velocity pressure is calculated using the Bernoulli's equation, which relates the pressure, velocity, and height of a fluid in a system. For a nozzle, the Bernoulli's equation can be written as:

P + 1/2 * ρ * V^2 = constant

where P is the pressure of the fluid at the nozzle, ρ is the density of the fluid, V is the velocity of the fluid at the nozzle, and the constant term represents the energy per unit weight of the fluid.

The velocity pressure is defined as the pressure that would be required to produce the same kinetic energy as the fluid in the nozzle. It is calculated using the following equation:

Pv = 1/2 * ρ * V^2

where Pv is the velocity pressure.

The velocity pressure is important in designing and selecting nozzles for fluid systems. For example, in fire sprinkler systems, the velocity pressure is used to determine the discharge rate and coverage area of the sprinklers. In irrigation systems, the velocity pressure is used to determine the water distribution and coverage area of the nozzles.

Overall, the velocity pressure for a nozzle is an important parameter in fluid mechanics, as it determines the kinetic energy of the fluid as it is discharged from the nozzle. It needs to be carefully controlled and optimized to ensure efficient and effective operation of fluid systems.
