Consolidation settlement due to embankment load and additional external load

(4/30)

Description

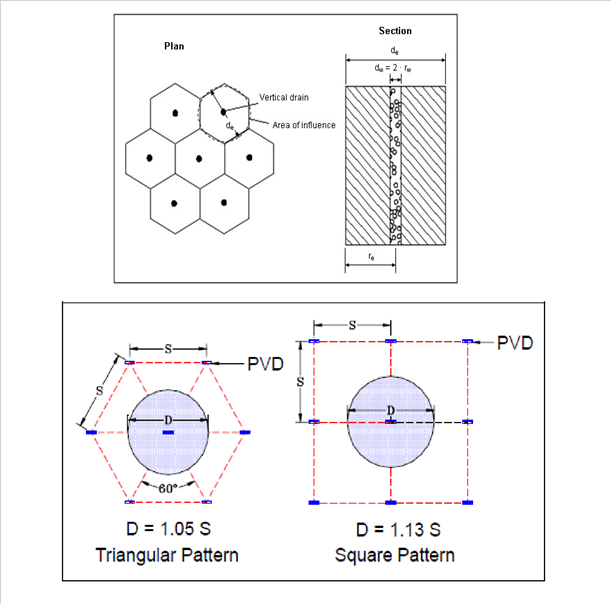

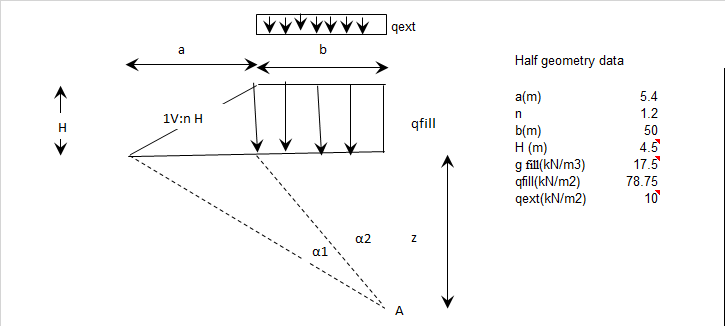

This excel calculate consolidation settlement due to embankment load and additional external load e.g. railway construction on fill. Addional stresses  in each depth increment  due to both loads are calculated based on stress on elastic foundation theory. Consolidation settlement then estiamated based on coefficeint compressibility. The program calculates additional stress due to embankent and external load.  It also estimates the settlement at the middle of the embankment. Finally the program gives preliminarly design of vertical drain. Output  graphs can be seen on graph sheets.Change only yellow cells!'@MYUSA 2016

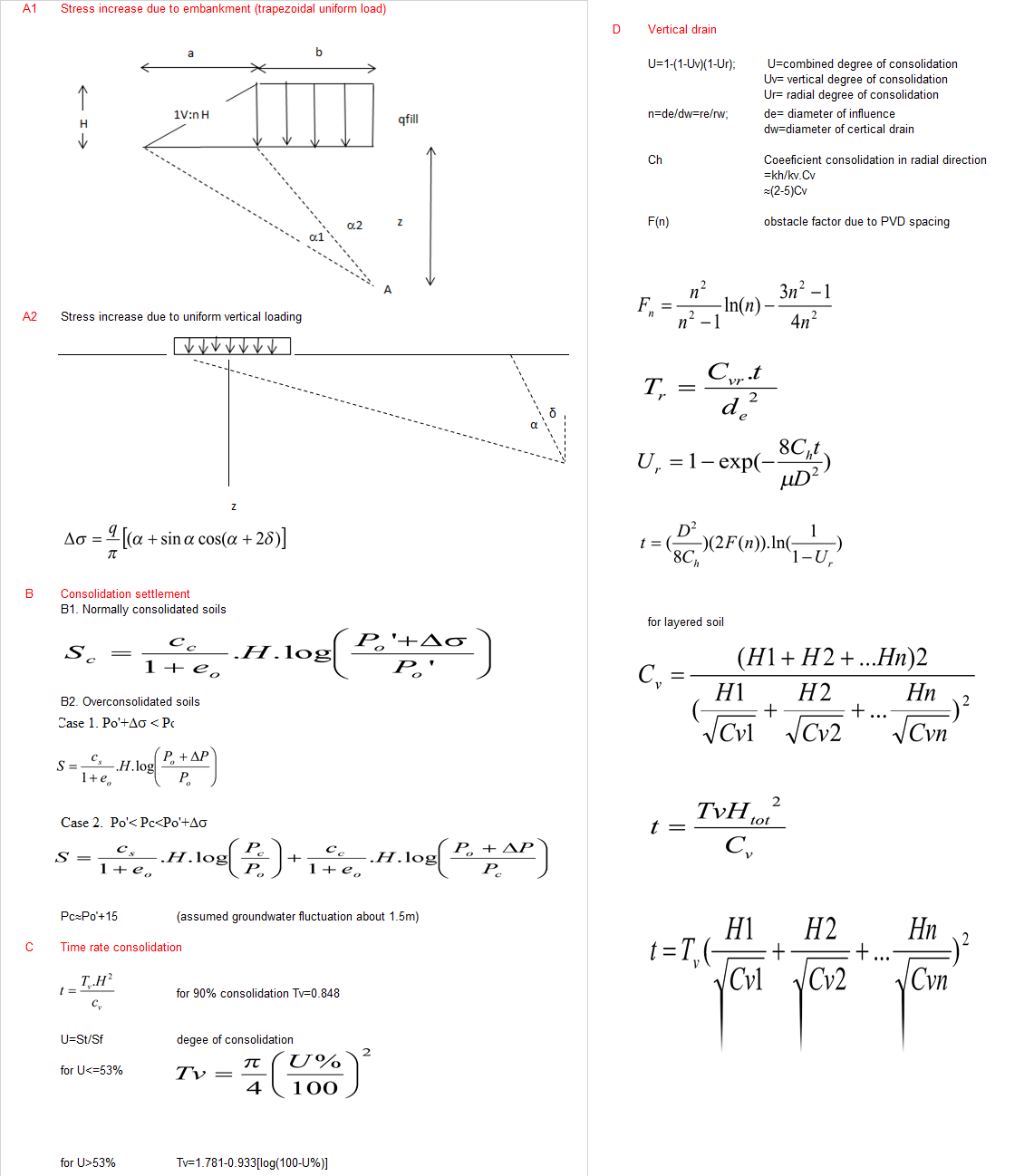

Calculation Reference

Consolidation settlement

Geotechnics

settlement due to external load

Consolidation settlement is a process by which soil particles are rearranged under load and water is squeezed out of the soil. Consolidation settlement can occur due to an embankment load, which is the weight of soil placed on top of a layer of soil. In addition, consolidation settlement can occur due to an external load, which is any load that is applied to the soil after the embankment is constructed.

The analysis of consolidation settlement due to an embankment load and additional external load involves the following steps:

  1. Determine the soil properties, such as the soil type, unit weight, and coefficient of consolidation.
  2. Determine the dimensions and weight of the embankment load and the additional external load.
  3. Calculate the total stress on the soil due to the embankment load and the additional external load.
  4. Calculate the excess pore water pressure generated by the load using Terzaghi's theory of consolidation.
  5. Calculate the rate and amount of settlement due to the load using the coefficient of consolidation and the thickness of the soil layer.
  6. Calculate the final settlement of the soil after the load is removed.
  7. Determine the safety factor against excessive settlement using a design standard or specification.

The analysis of consolidation settlement due to an embankment load and additional external load can be further refined by considering other factors, such as the effect of groundwater, the variation of soil properties with depth, and the time-dependent behavior of the soil. The analysis can also be performed using computer software or spreadsheet programs, which can provide more accurate and efficient results.

Overall, the analysis of consolidation settlement due to an embankment load and additional external load provides a systematic and reliable approach to design and construct embankments and structures on soil, and to ensure their stability and safety over time.

Calculation Preview

27 Apr 2023
File Size: 574.08 Kb
Downloads: 126
File Version: 1.0
File Author: Muhamad Yusa
File Rating (4/30)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
howwm 2 years ago
Error in Sp(m) calculation, check height layer
johndoyle-admin 7 years ago
Lovely debut calculation I have awarded a free 3 month XLC Pro subscription by way of thanks. Please see our [uploading guidance](/calcs/good-calc-guide#Publish) and check how to [update the calculation in the future](/support/faqs/updating-your-calculations/).
