Water and saturated steam pipe sizing

Rating:
2

Description

Program will calculate pipe size according to recommended velocity, flow rate and tempreture (in case of steam.) Once nominal pipe selected, the actual velocity will shows.

Pipe sizing for water and saturated steam involves selecting an appropriate pipe diameter based on the flow rate, pressure drop, and allowable velocity. The following general procedure can be used to size pipes for water and saturated steam:

  1. Determine the flow rate:

    • For water, the flow rate can be determined from the design flow rate, system demand, or fixture unit values.
    • For saturated steam, the flow rate can be determined from the steam consumption rate or heat transfer requirements.
  2. Determine the pressure drop:

    • For water, the pressure drop can be determined from the hydraulic calculation, which considers the frictional losses and other pressure losses, such as fittings, valves, and elevation changes.
    • For saturated steam, the pressure drop can be determined from the steam tables or calculation using the steam properties, pipe dimensions, and flow rate.
  3. Select an appropriate pipe diameter:

    • For water, use the Hazen-Williams equation or Darcy-Weisbach equation to determine the required pipe diameter based on the flow rate, pressure drop, and allowable velocity.
    • For saturated steam, use the steam tables to determine the required pipe diameter based on the flow rate, pressure drop, and allowable velocity.
  4. Consider other factors:

    • For water, consider the type of water (potable, non-potable, or wastewater) and any special requirements, such as fire protection or chemical resistance.
    • For saturated steam, consider the material and insulation of the pipe, which can affect the heat loss and condensation.

It's important to note that pipe sizing is a complex process that requires knowledge of engineering principles, fluid properties, and relevant standards. It's recommended to consult with a qualified engineer and follow the appropriate codes and standards, such as ASME B31.1 or ASME B31.3, for water and steam piping systems.

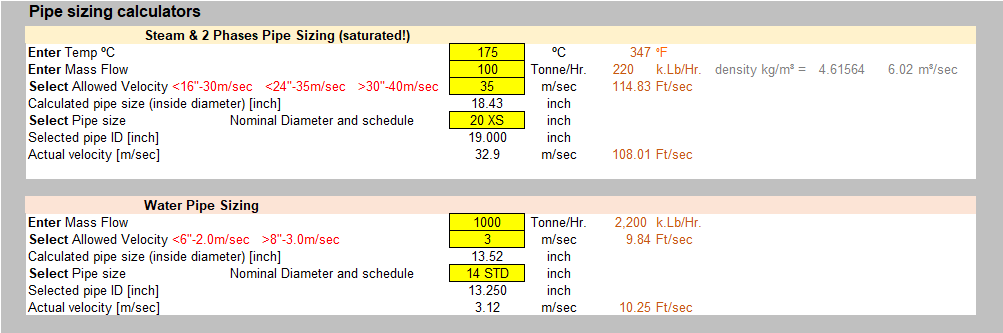

Calculation Preview

Uploaded
22 Sep 2020
Last Modified
25 Apr 2023
File Size:
117.50 Kb
Downloads:
21
File Version:
4
File Author:
David Levy
Rating:
2


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
JohnDoyle[Admin] 3 years ago
Thanks for your contribution I have awarded a 3 month extension to your XLC Pro subscription by way of thanks. [Admin]
