General Section Properties & Stresses

(3/2)

Description

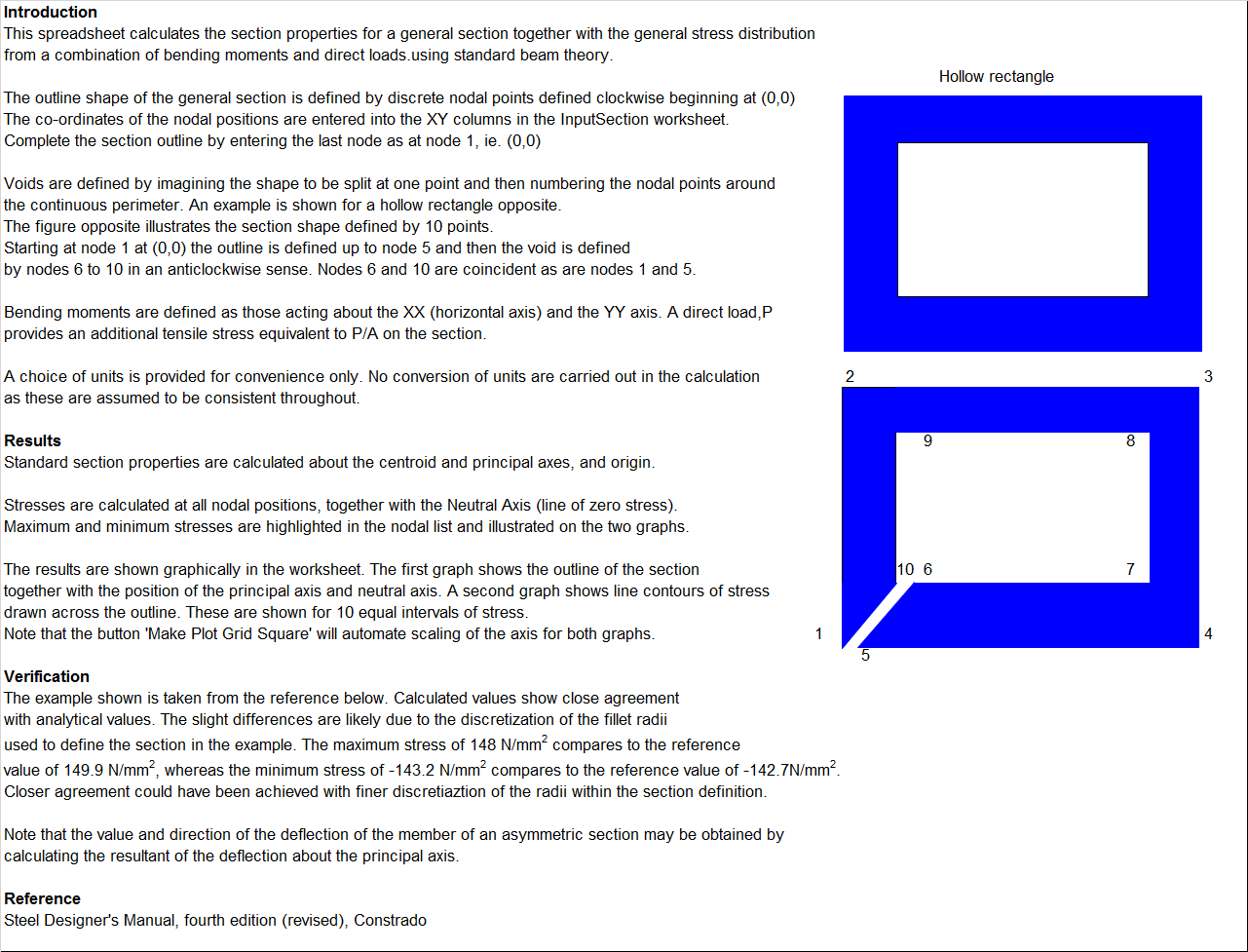

This spreadsheet calculates the section properties of a general shape defined by nodal co-ordinates together with the stress distribution due to a direct axial load and bending moments about the principal axes.

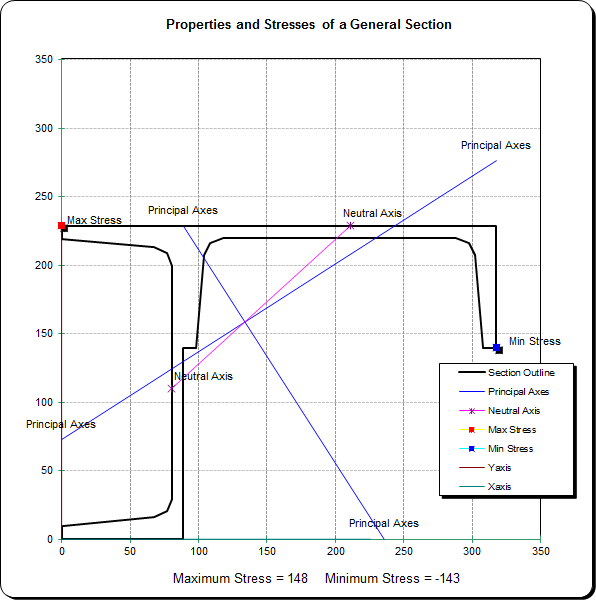

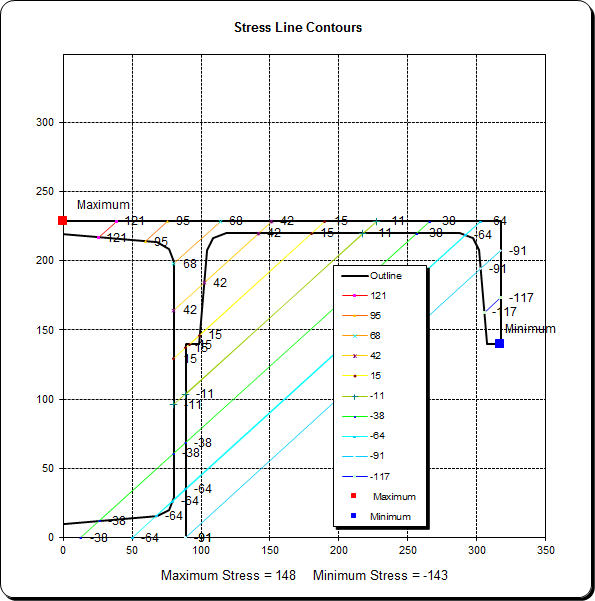

Stresses are calculated at all nodal positions and illustrated by line contours over the outline.

Calculation Reference

Section Properties

Steel Design

Steel Designers Manual

To calculate the section properties of a general shape defined by nodal coordinates along with the stress distribution due to a direct axial load and bending moments about the principal axes, follow these steps:

  1. Define the shape using nodal coordinates: Create a list of nodal coordinates (x, y) that define the shape's geometry. Ensure that the coordinates follow a consistent order, either clockwise or counterclockwise.

  2. Calculate the area (A) and centroid (C) of the shape: Use the following formulae to calculate the area and centroid:

A = (1/2) * Σ[(xi * yi+1) - (xi+1 * yi)]

Cx = (1/(6*A)) * Σ[(xi + xi+1) * ((xi * yi+1) - (xi+1 * yi))]

Cy = (1/(6*A)) * Σ[(yi + yi+1) * ((xi * yi+1) - (xi+1 * yi))]

where (xi, yi) and (xi+1, yi+1) represent adjacent nodal coordinates.

  1. Calculate the moments of inertia (Ix, Iy) and product of inertia (Ixy) of the shape:

Ix = (1/12) * Σ[((yi^2 + yi * yi+1 + yi+1^2) * ((xi * yi+1) - (xi+1 * yi))])

Iy = (1/12) * Σ[((xi^2 + xi * xi+1 + xi+1^2) * ((xi * yi+1) - (xi+1 * yi))])

Ixy = (1/24) * Σ[((xi * yi+1 + 2 * xi * yi + 2 * xi+1 * yi+1 + xi+1 * yi) * ((xi * yi+1) - (xi+1 * yi))])

  1. Calculate the principal moments of inertia (I1, I2) and the orientation of the principal axes:

The principal moments of inertia can be calculated using the following equations:

I1 = (Ix + Iy) / 2 + sqrt(((Ix - Iy) / 2)^2 + Ixy^2)

I2 = (Ix + Iy) / 2 - sqrt(((Ix - Iy) / 2)^2 + Ixy^2)

The orientation angle (θ) of the principal axes can be calculated using:

θ = (1/2) * atan(2 * Ixy / (Ix - Iy))

  1. Calculate the stress distribution due to the direct axial load (P) and bending moments (Mx, My) about the principal axes:

Stress due to axial load: σ_axial = P / A

Stress due to bending moments: σ_bending = (Mx * y - My * x) / I1

Total stress: σ_total = σ_axial + σ_bending

By following these steps, you can calculate the section properties of a general shape defined by nodal coordinates and analyze the stress distribution due to a direct axial load and bending moments about the principal axes.

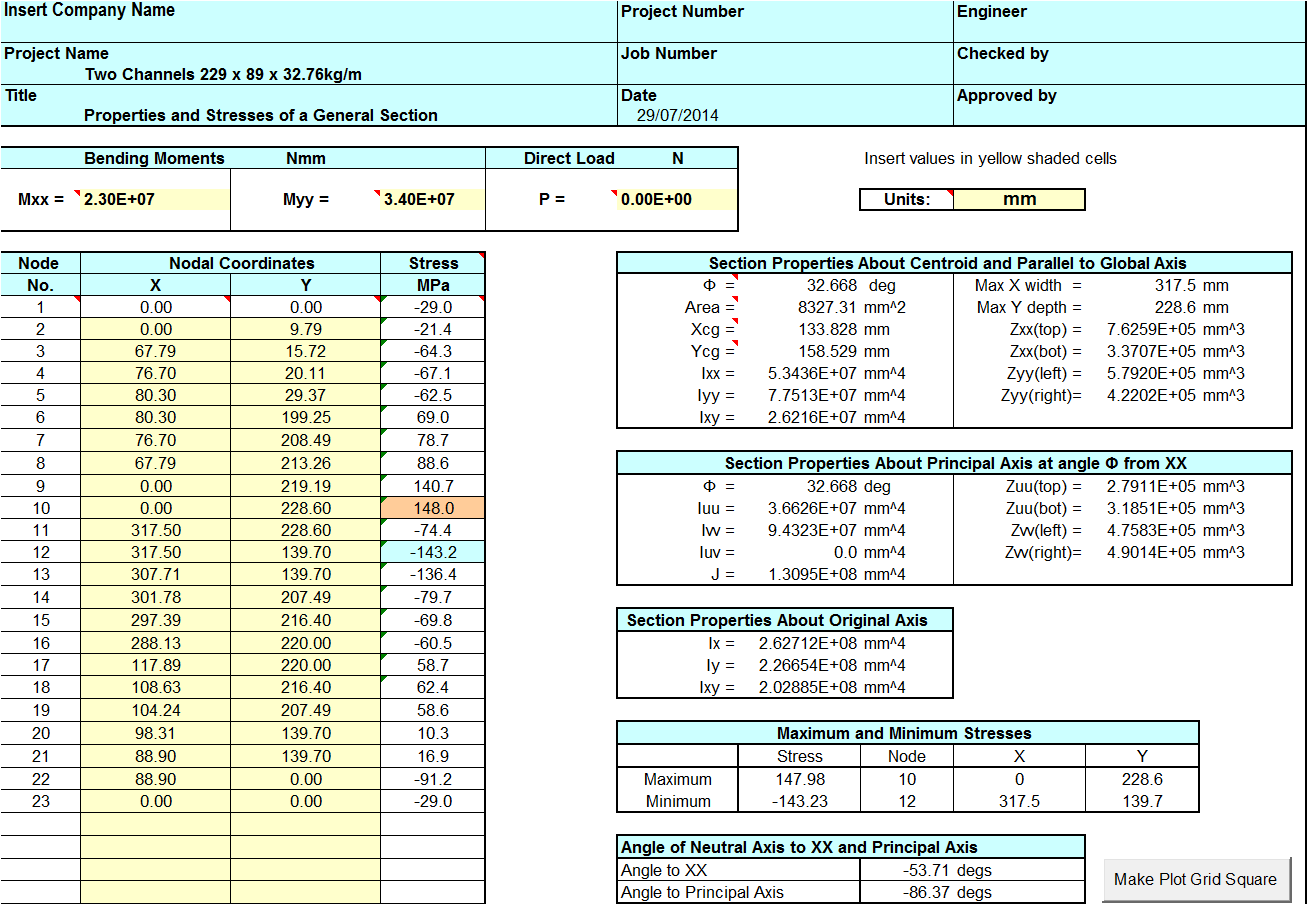

Calculation Preview

28 Apr 2023
File Size: 305.50 Kb
Downloads: 158
File Version: 1.0
File Author: David Backhouse
File Rating (3/2)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
johndoyle-admin 10 years ago
Another great calculation for your ever increasing collection. Enjoy your free lifetime XLC Pro subscription by way of thanks.
