pipe strength base on API 5L

Rating:
1

Description


Calculate pipe strength in two ways: stress and force,base API 21th wsd.

Calculation Reference
Pipe Design
Section Properties
Bending Stress

API 5L specifies requirements for the manufacture of two product specification levels (PSL 1 and PSL 2) of seamless and welded steel pipes for use in pipeline transportation systems in the petroleum and natural gas industries. The standard covers pipe strength and other mechanical properties such as yield strength, tensile strength, elongation, and toughness.

To determine pipe strength based on the API 5L standard, you should consider the following parameters:

  1. Material Grade: The standard specifies different grades of steel pipes (such as A, B, X42, X46, X52, X56, X60, X65, X70, X80, etc.) with each grade representing a specific minimum yield strength in psi (pounds per square inch) or MPa (megapascals).

  2. Product Specification Level (PSL): API 5L has two product specification levels, PSL 1 and PSL 2. PSL 2 pipes have more stringent quality requirements and additional testing compared to PSL 1.

  3. Wall Thickness: The pipe's wall thickness has a significant impact on its strength. Thicker pipes can withstand higher pressures and mechanical loads.

  4. Pipe Diameter: The pipe's diameter is another factor to consider when determining its strength.

  5. Manufacturing Process: API 5L covers both seamless and welded pipes. The manufacturing process can influence the pipe's mechanical properties.

To calculate the pipe strength, you will need to refer to the API 5L standard, specifically the information on yield strength and tensile strength for the selected material grade, PSL, and wall thickness.

Please note that the pipe's strength may also be affected by other factors such as corrosion, temperature, and pressure cycling. Proper design, installation, and maintenance are necessary to ensure the pipe's performance and safety in its intended application.

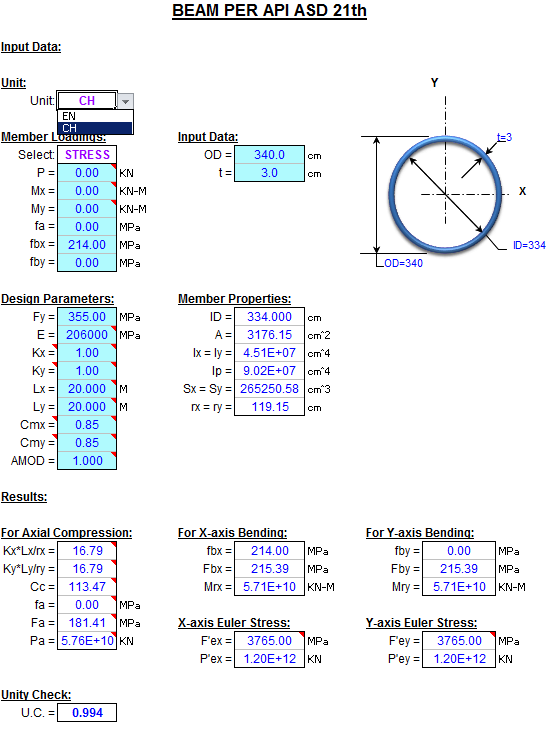

Calculation Preview
