API 610 CHECK for PUMPS

Core Engineering Principle: Pump Nozzle Load Verification This calculation is verifying that a centrifugal pump can safely handle the forces and moments imposed by the connected piping system without damage to the pump casing, impeller, or internal components. The Engineering Logic:

1. Load Transfer Analysis The piping system (due to thermal expansion, pressure, weight, and external loads) transfers forces and moments to the pump through its suction and discharge nozzles. Think of it like checking if a pump can handle being "pulled and twisted" by the pipes connected to it.

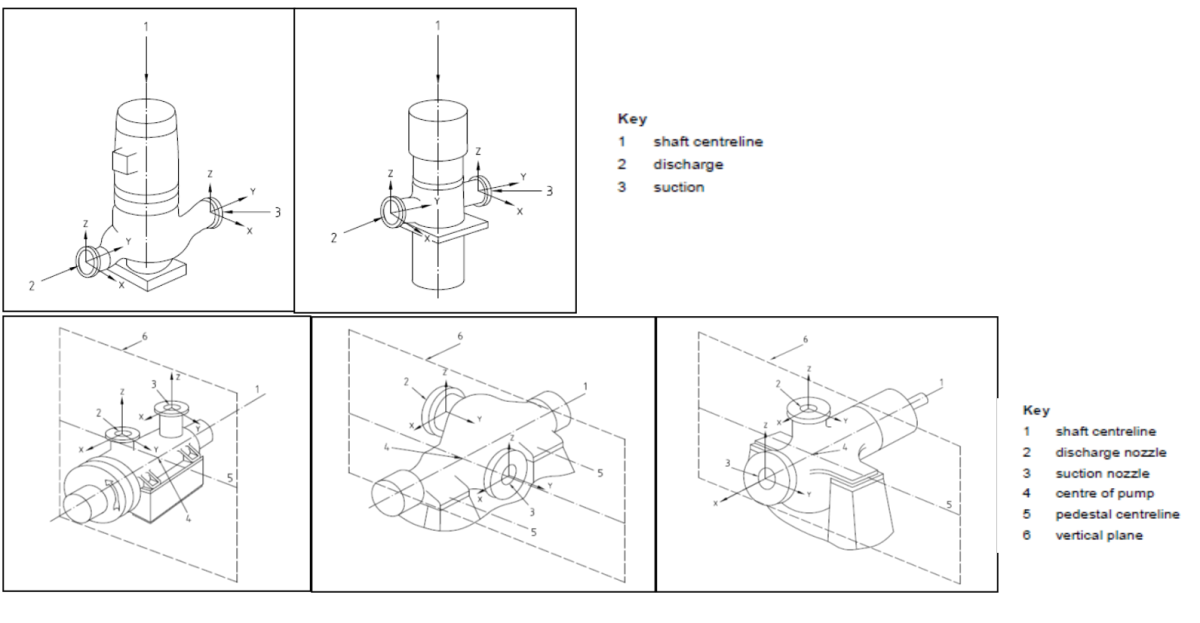

2. Coordinate System & Load Components

Forces: Direct pushing/pulling in X, Y, Z directions Moments: Twisting/bending actions around each axis Resultant loads: Combined effect of all force and moment components Each nozzle (suction at node 220, discharge at node 710) experiences different loads

3. Manufacturer Allowable Limits Every pump has maximum allowable loads specified by the manufacturer - like weight limits on a bridge. These limits protect the pump's:

Casing from cracking Shaft alignment from distortion Bearings from excessive stress Internal clearances from binding

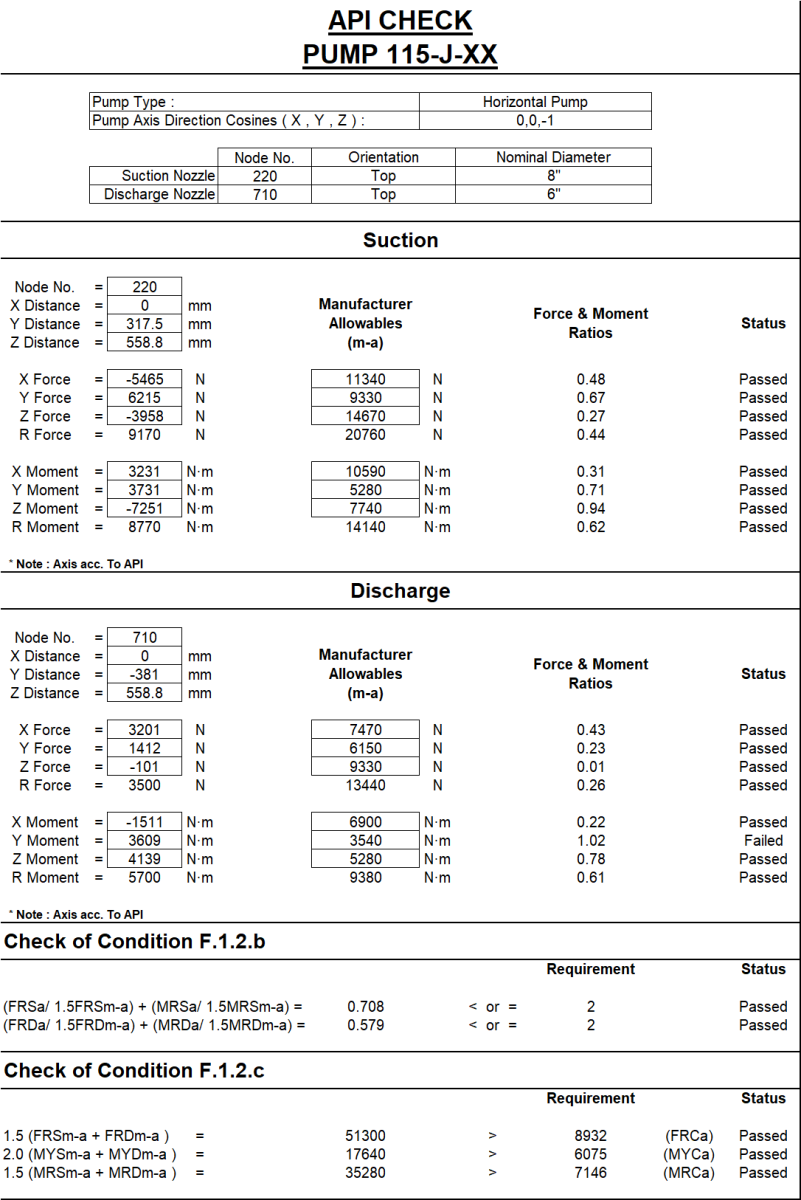

4. Safety Verification Process The calculation compares actual loads vs. allowable loads:

Ratio < 1.0: Safe (Passed) Ratio > 1.0: Unsafe (Failed) - needs piping modification Combined load checks: Ensures multiple loads acting together don't exceed limits

5. API Standard Compliance Follows API 610/685 standards which provide specific formulas for:

How to combine different load types Safety factors to apply Acceptance criteria for pump protection

The Failed Condition: The discharge nozzle Y-moment (1.02 ratio) exceeds the manufacturer's allowable limit, meaning the piping system is bending the pump too much in that direction and requires design changes. The fundamental principle is protecting expensive rotating equipment by ensuring the piping doesn't impose loads that could cause mechanical failure, misalignment, or premature wear.
