Band Brake Check
(0/0)
Description
Checks band brake forces and stresses according to recognised formulae.

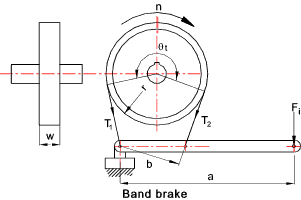

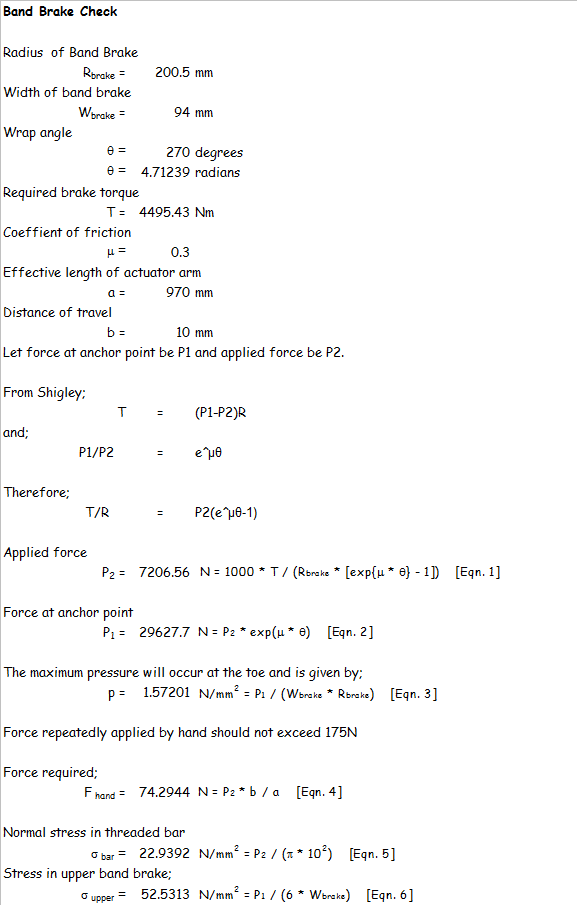

This is a very simple type of brake using the principle that a band is wrapped part round a rotating drum. Tension can be applied to the band using a lever. The restraining torque results from the difference in tension between the two ends of the belt.

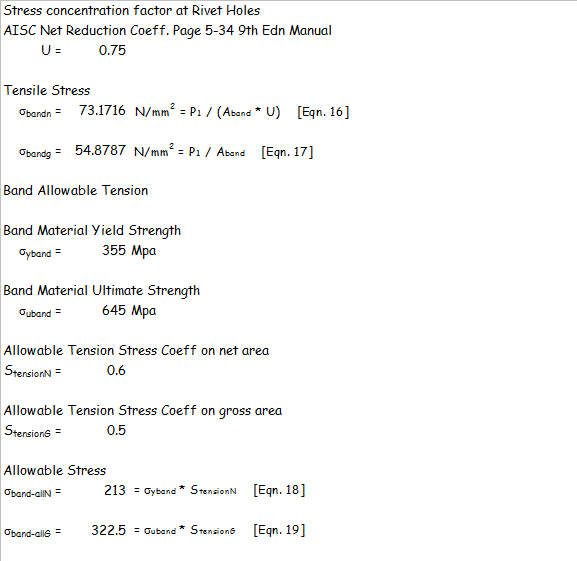

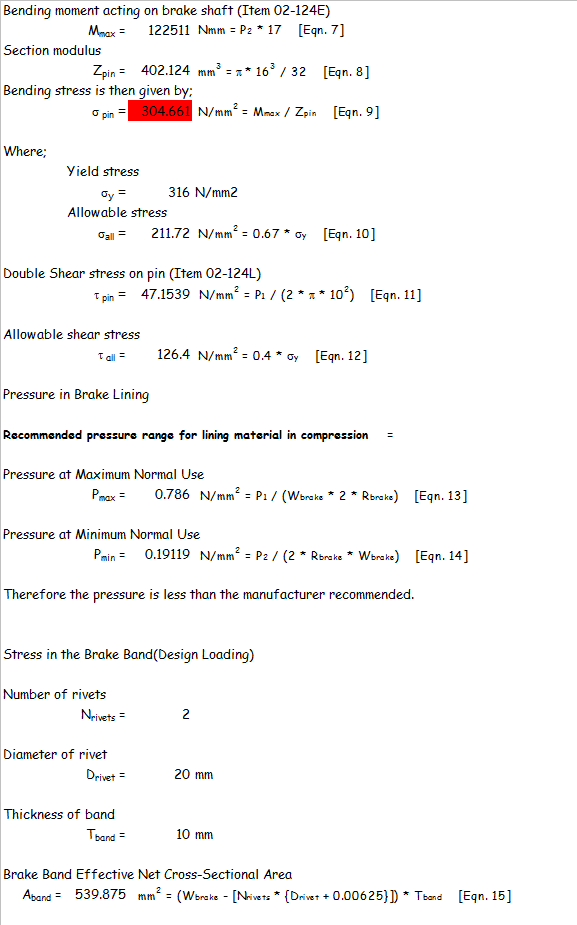

Calculation Reference
Shigley Machine Design
Schaum Machine Design
