Disc Brake Calculations

(5/9)

Description

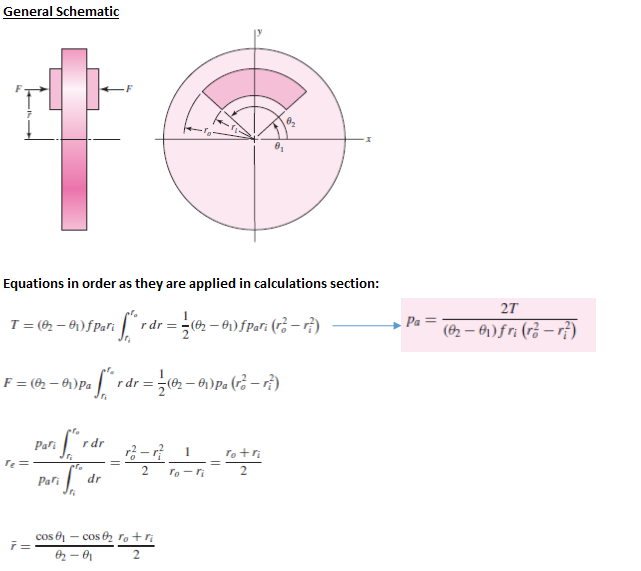

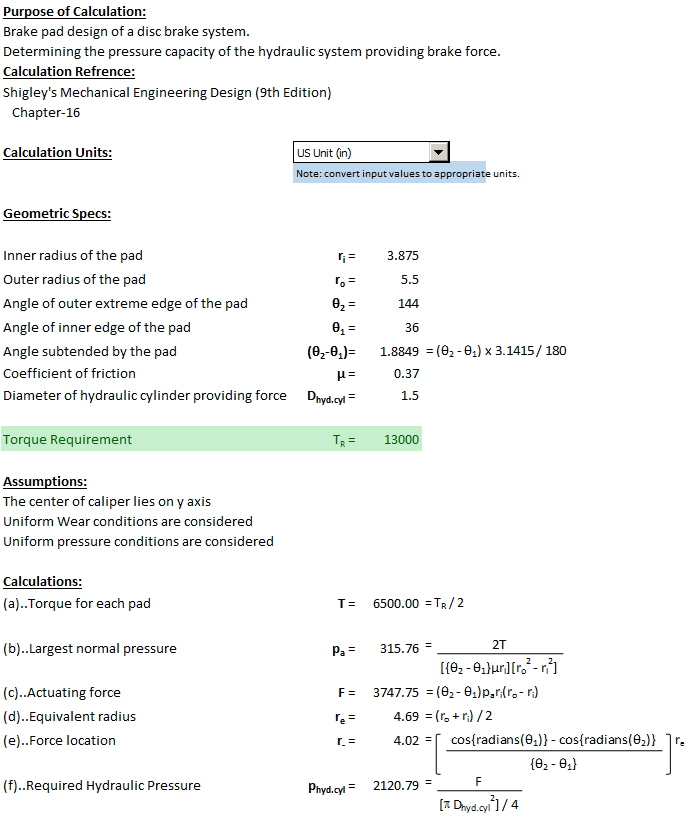

The attached file calculates the disc brake force and hydraulic pressure capacity of the system to stop a rotating wheel with a certain torque.

Calculation Reference

Mechanical Design

Brake Design

Machine Design

Calculation Preview

()
19 Mar 2015
File Size: 155.75 Kb
Downloads: 42
File Version: 1.0
File Author: Reyyan Khalid
File Rating (5/9)
