Butt Weld Geometry & Stress Verification

This calculation provides a comprehensive design and verification tool for T-butt joints with partial penetration butt welds reinforced by fillet welds, in accordance with Eurocode 3 (EN 1993-1-8).

Key Features

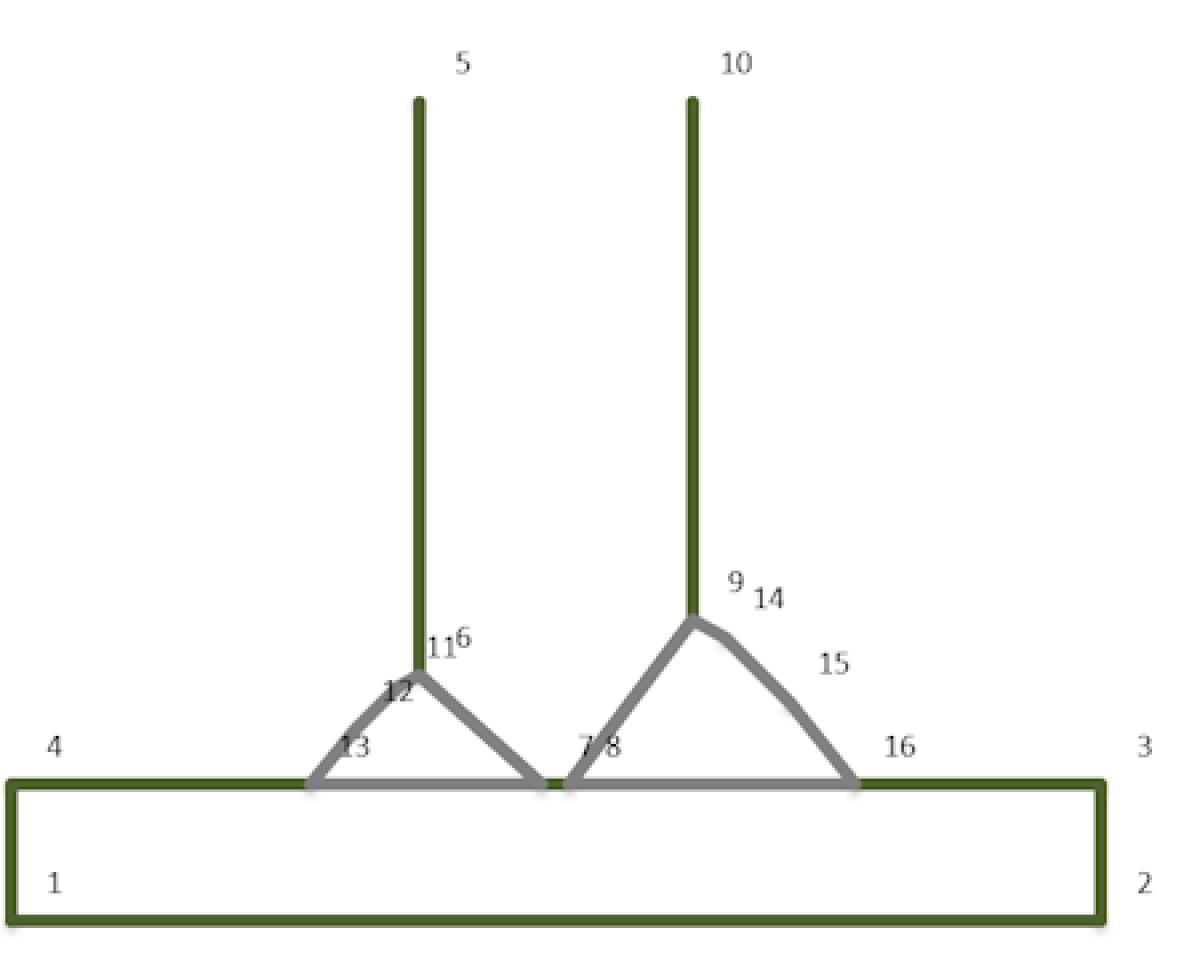

• Live-Updating XY Sketch: A custom Scatter Chart provides an accurate, scale-correct visualization of the joint profile.
• Position-Based Audit: Every vertex in the drafting logic is assigned a unique position number, mapped directly to a fully auditable "Sketch Coordinates" sheet with XLC rendered equations.
• Dual-Mode Verification: Performs both geometric limit checks (throat/gap) and mechanical stress checks (directional method).
• Universal Unit System: Leverage 28 unit categories to work in any system (SI, Metric, or US Customary) with a single dropdown selection. All results and equations update automatically.

How to Use

1. Set the Plate Geometry (Lug thickness and gap).
2. Input the Weld Geometry for both sides.
3. Observe the Weld Sketch for immediate visual confirmation of the fit-up.
4. Verify the Stress Components against the material resistance values.
5. Use the Sketch Coordinates tab for a deep-dive audit of the drafting logic.

Summary

This is a state-of-the-art XLC workbook that sets a new standard for visual auditability in the repository. The combination of dynamic sketching, position-based vertex indexing, and universal unit compatibility makes it both a powerful design tool and an excellent educational resource.

Workbook Structure

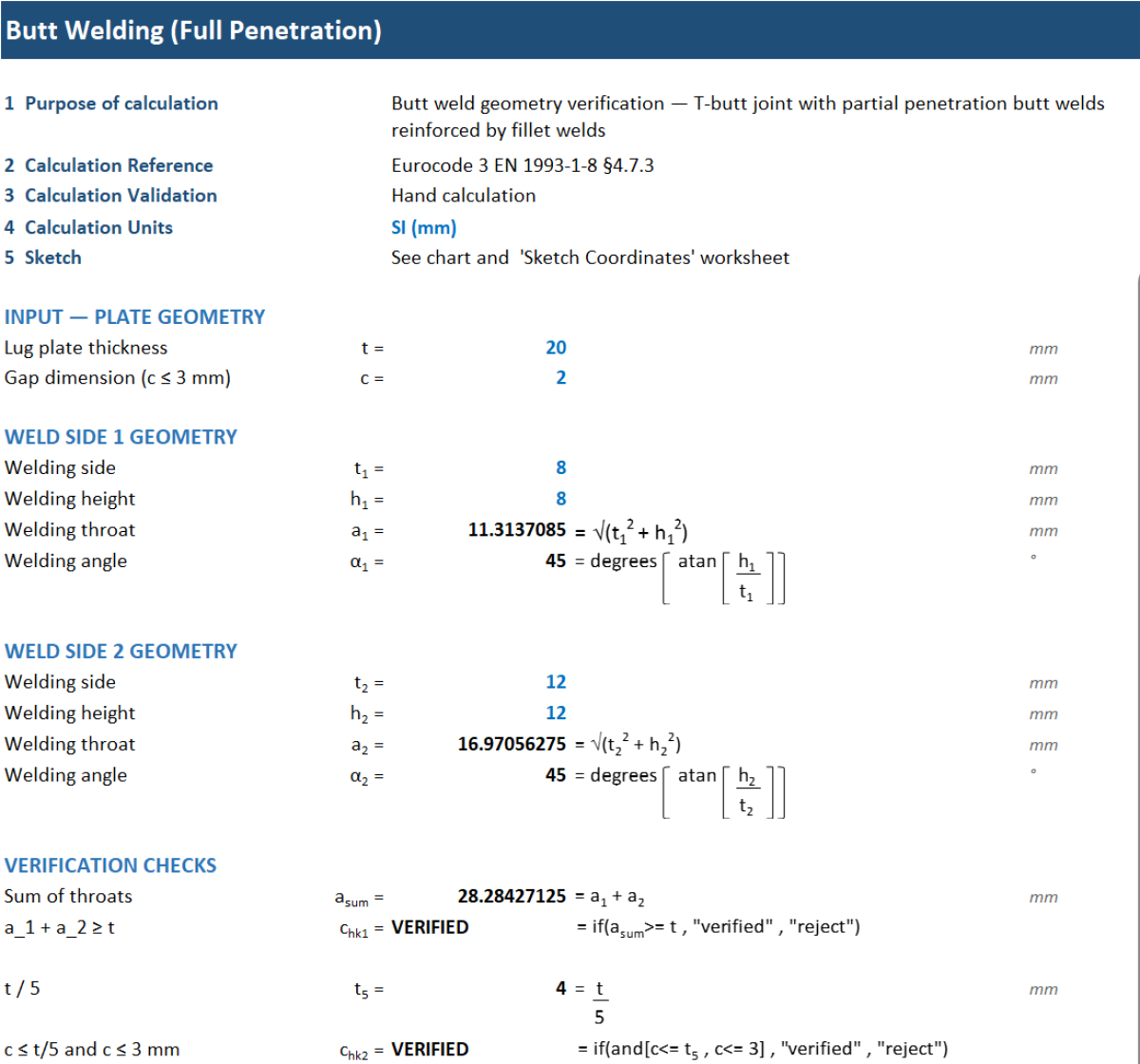

Sheet 1: Butt Weld Geometry

• Header: Purpose, Reference, Validation, Units (Master Dropdown).
• Sketch: Large XY Scatter chart plot.
• Inputs: Plate and weld dimensions.
• Checks: "VERIFIED/REJECT" status cells with logical conditions.

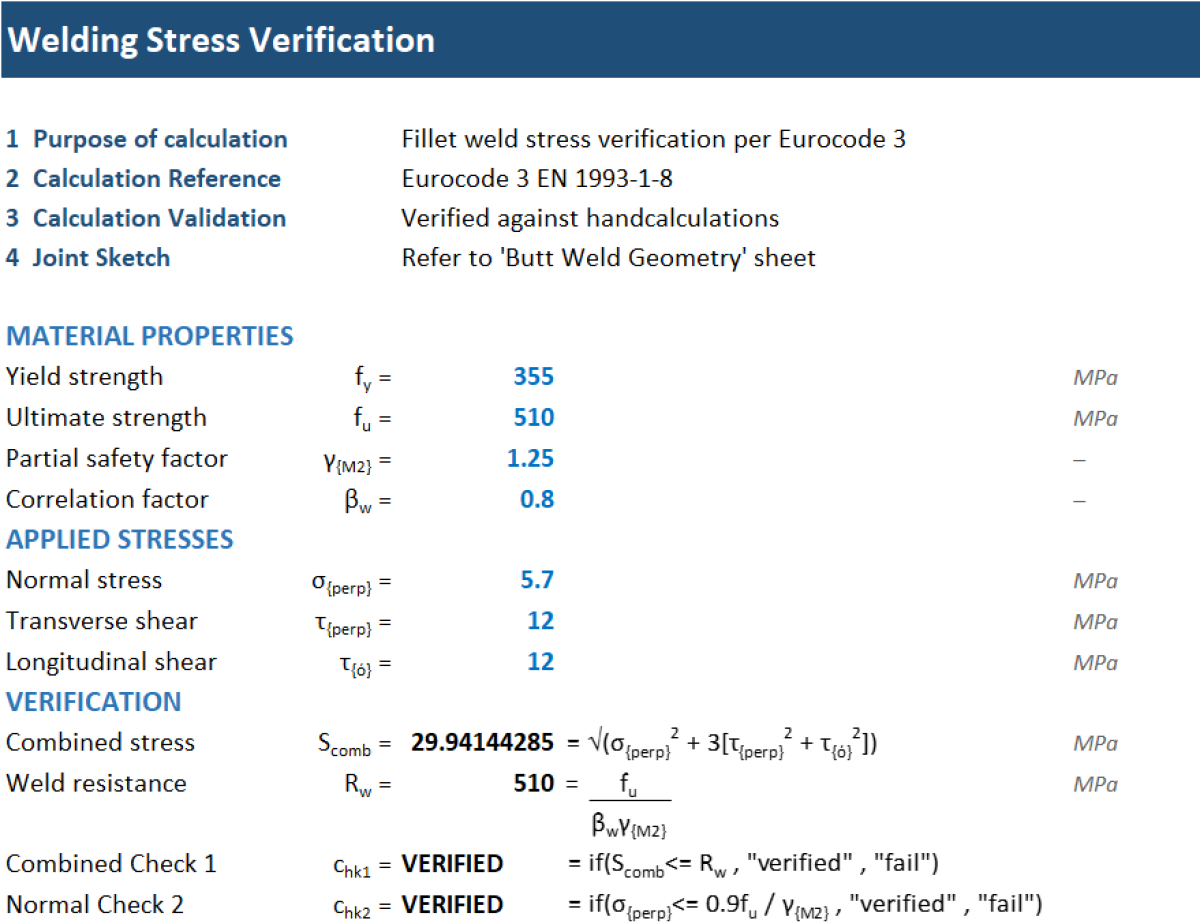

Sheet 2: Weld Stress Check

• Dedicated verification for the stress components.
• Links to Sheet 1 unit system for consistency.

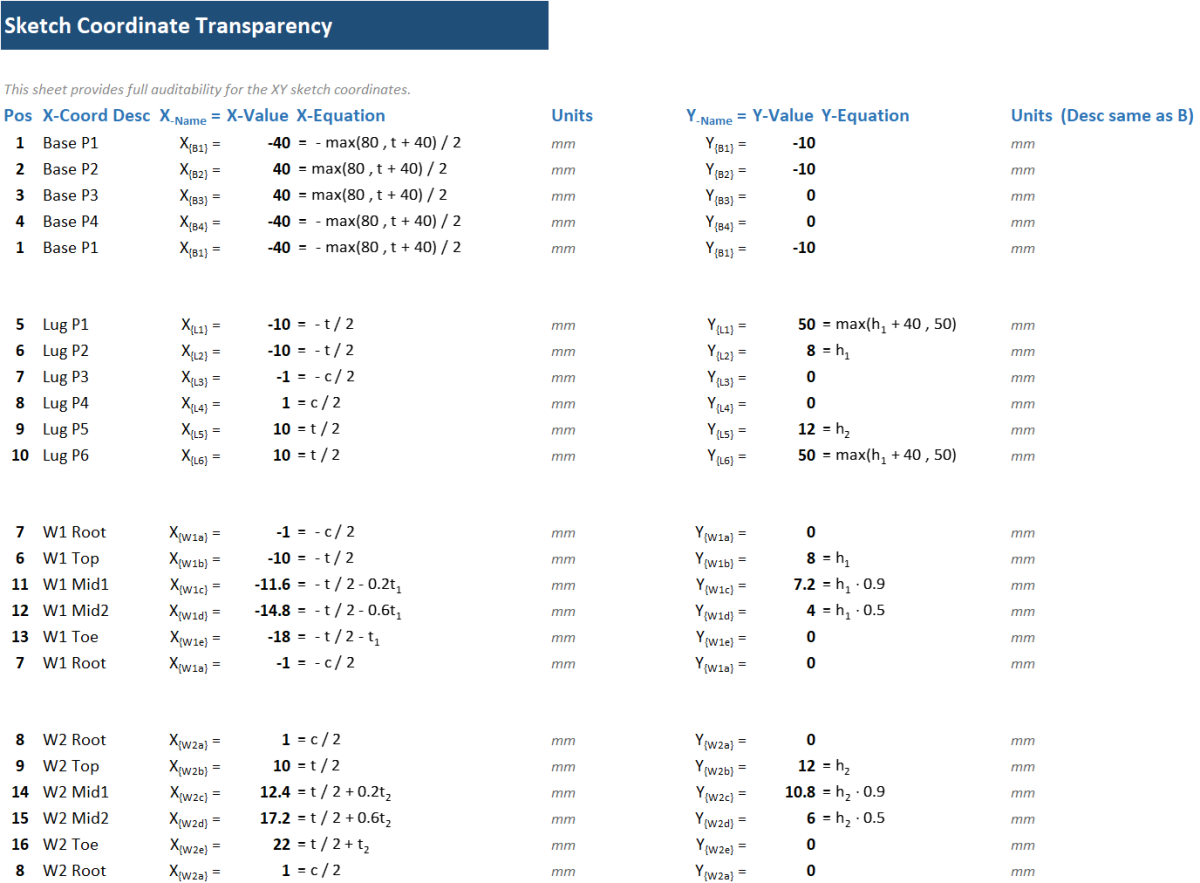

Sheet 3: Sketch Coordinates

• Audit Table: Twin drafting blocks (X and Y) with XLC EQS formulas.
• Pos Mapping: Unique integers (1-16) mapped to chart markers.

Units Sheet

• Universal Lookups: Comprehensive table for 6 unit systems across 28 categories.
• Dynamic Linking: Calculations use variable units (e.g. =Length) rather than static strings, ensuring the workbook is region-independent and future-proof.
