Welding Preheat Temperature and Heat Input Calculator

Welding Preheat Temperature and Heat Input Calculator

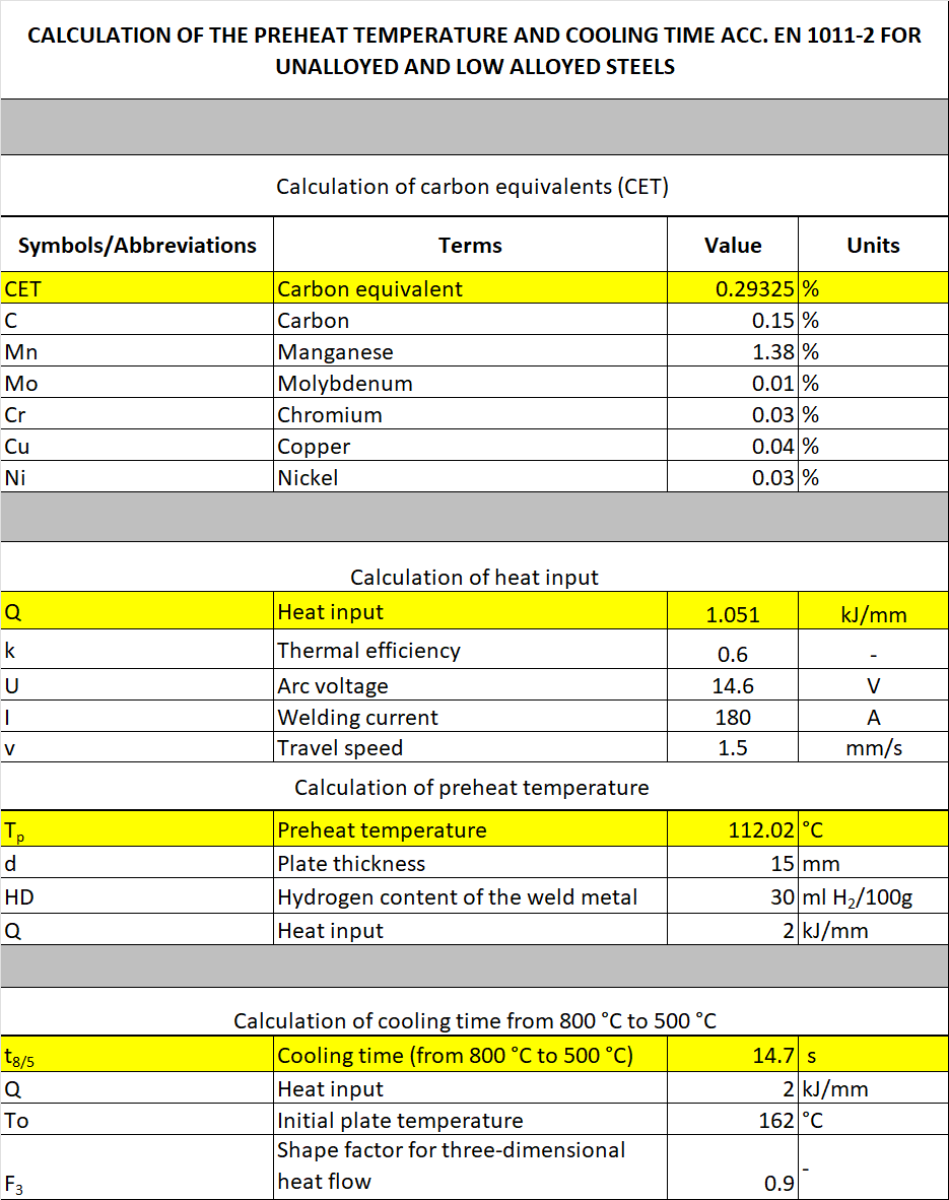

This user-friendly Excel calculator is designed to assist welders and engineers in determining critical parameters for welding processes, specifically focusing on welding preheat temperature, cooling time from 800 to 500 degrees, and heat input, all in accordance with the relevant EN standards (EN 1011-2 and EN 1011-1).

Welding Preheat Temperature: Welding preheat temperature refers to the initial heating of the base material before welding. It is essential for reducing the risk of cracking, especially in high-strength steels and materials with high carbon content. Preheating helps to minimize thermal stresses and ensures a more uniform temperature distribution during the welding process.

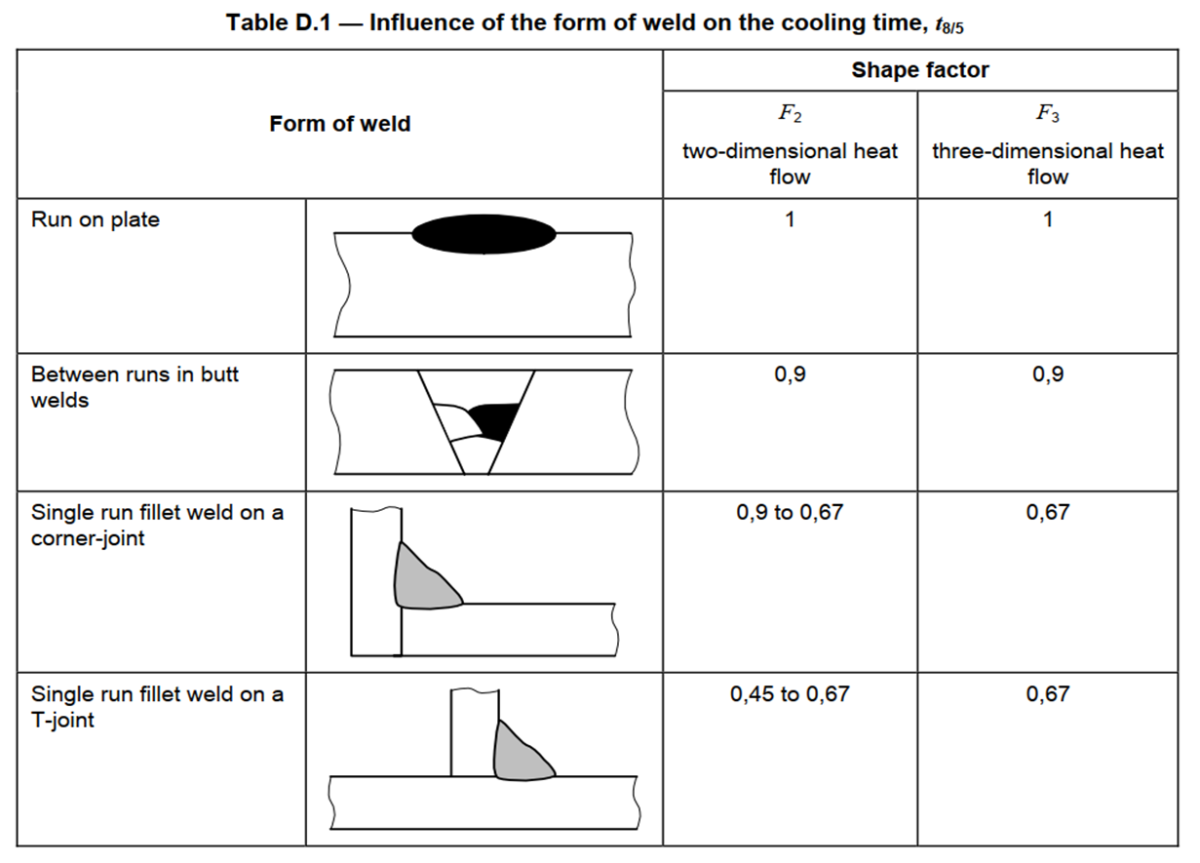

Cooling Time from 800 to 500 °C: The cooling time from 800 to 500 °C is a critical factor in controlling the microstructure of the weld and the heat-affected zone. Proper cooling rates can prevent the formation of brittle microstructures, ensuring the integrity and performance of the welded joint. This calculator provides accurate calculations to help achieve the desired cooling times based on material specifications.

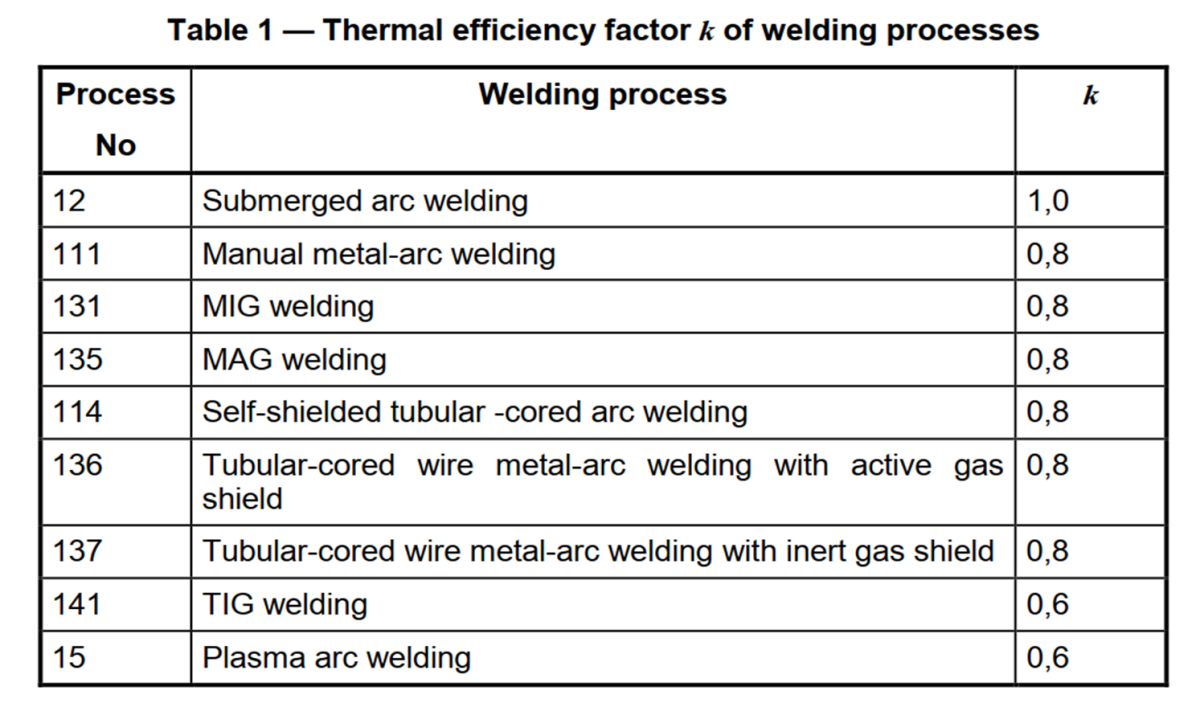

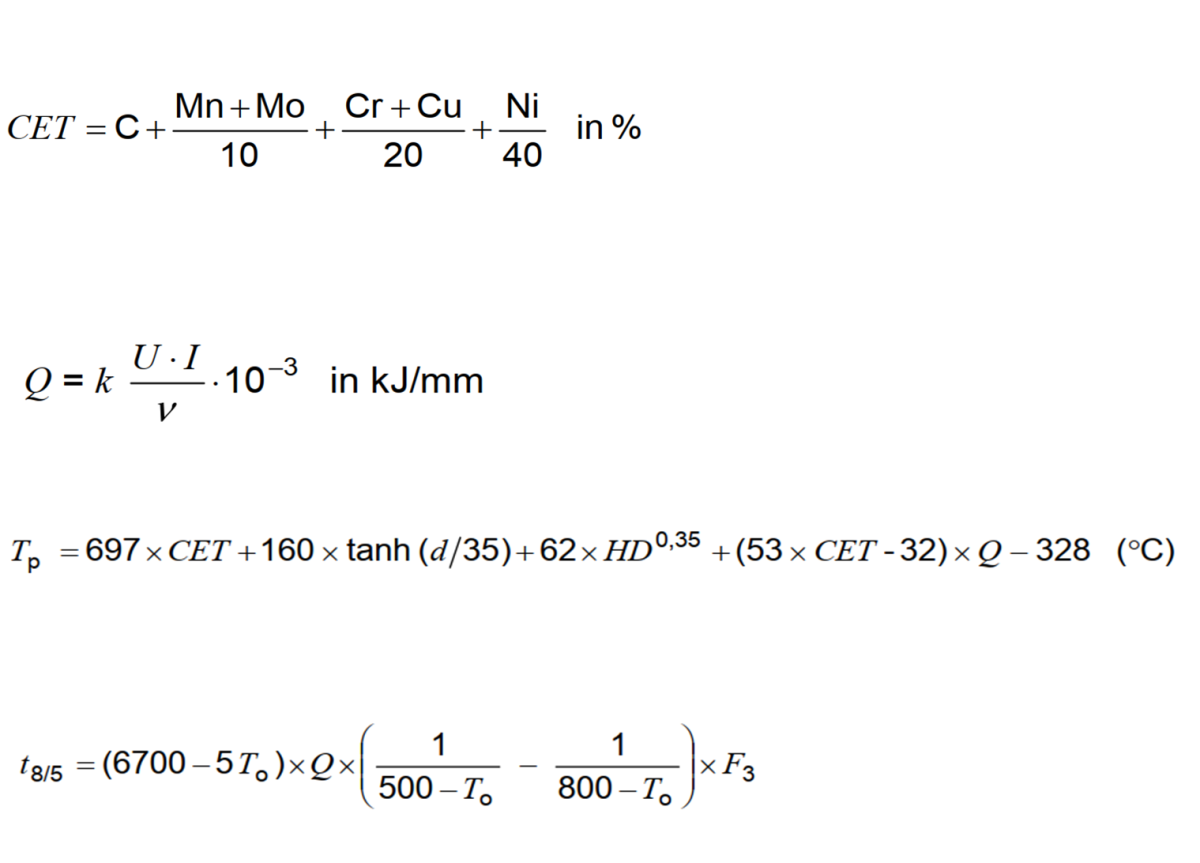

Heat Input: Heat input is a crucial parameter in welding that influences the mechanical properties of the weld. It is defined as the amount of heat energy applied to the workpiece during the welding process. Controlling heat input is vital for achieving optimal weld quality and preventing defects. This calculator incorporates the formulas from EN 1011-1 to ensure precise heat input calculations.

Easy to Use: Designed with user-friendliness in mind, this calculator allows users to input relevant parameters and obtain quick, accurate results. By following the established formulas from valid EN standards, it ensures compliance and reliability in your welding operations.
