ALUMINUM RECTANGULAR TUBE DESIGN
(5/16)
Description

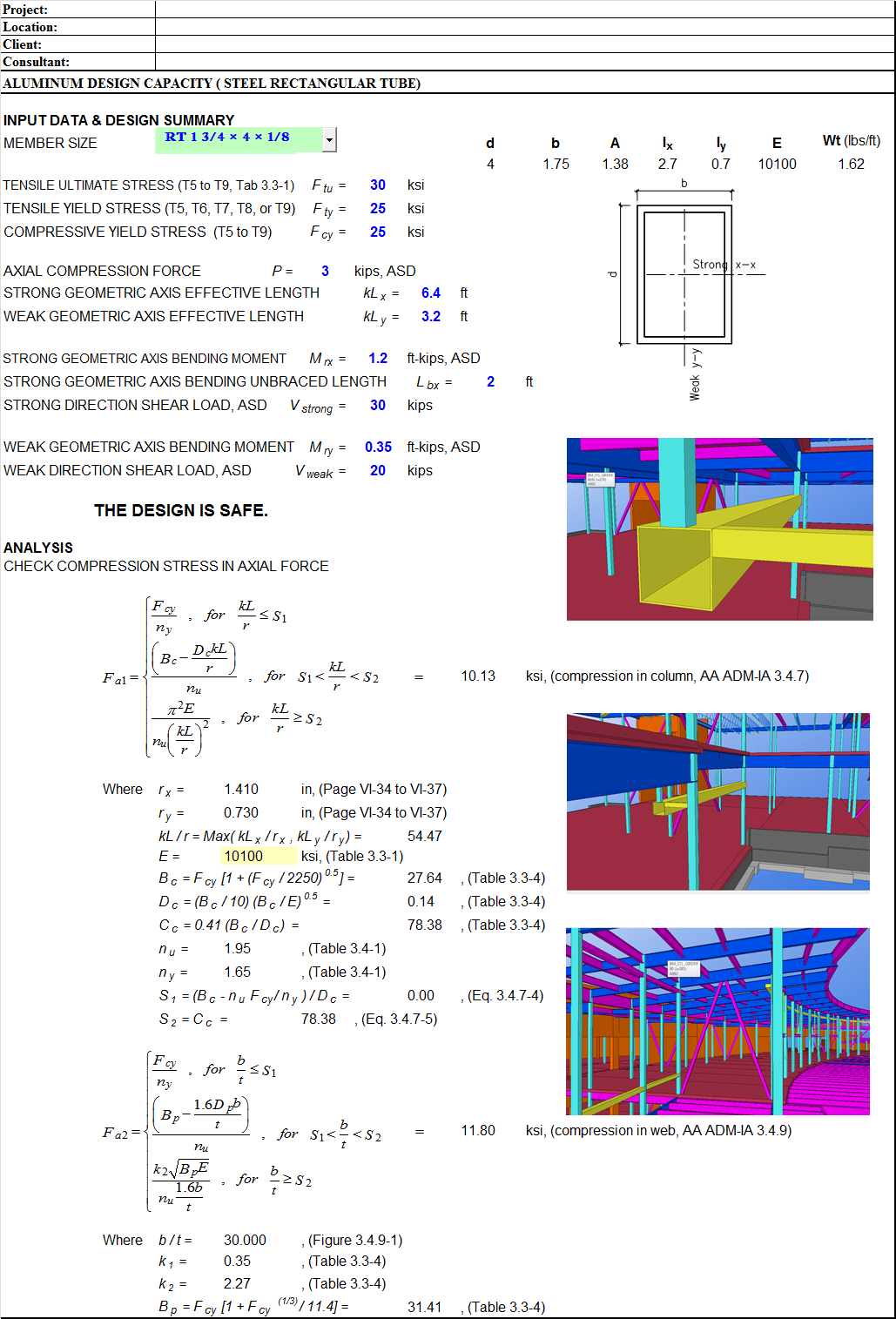

This sheet will help you design structural and architectural tube on your building construction whether it is residential, commercial & plant projects. It optimizes the aluminum tube so that designer can attain the effective, efficient, safe and economical sizes of aluminum rectangular tube.
Calculation Reference
Strength of Aluminium
Structural Design
Aluminium Design

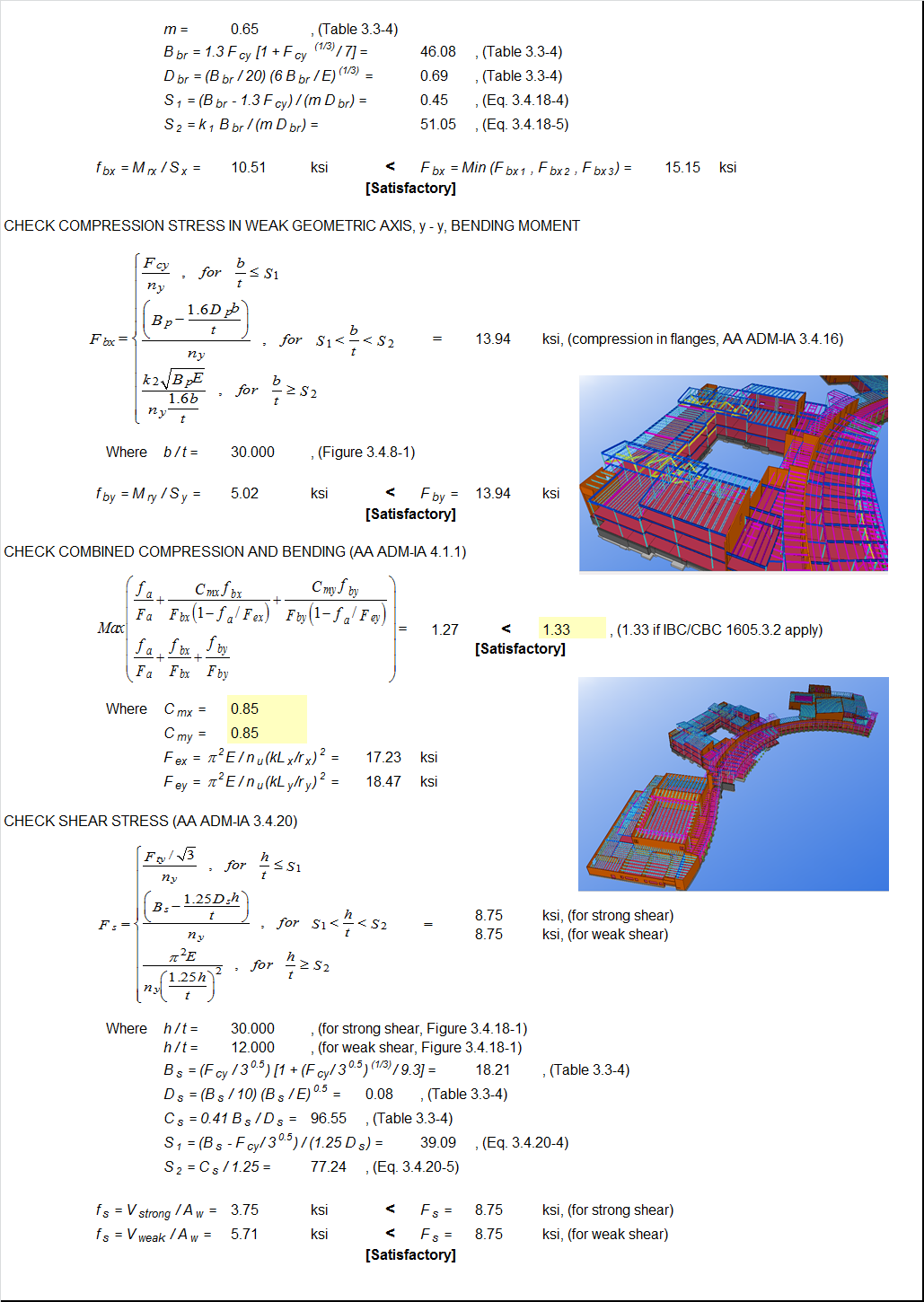

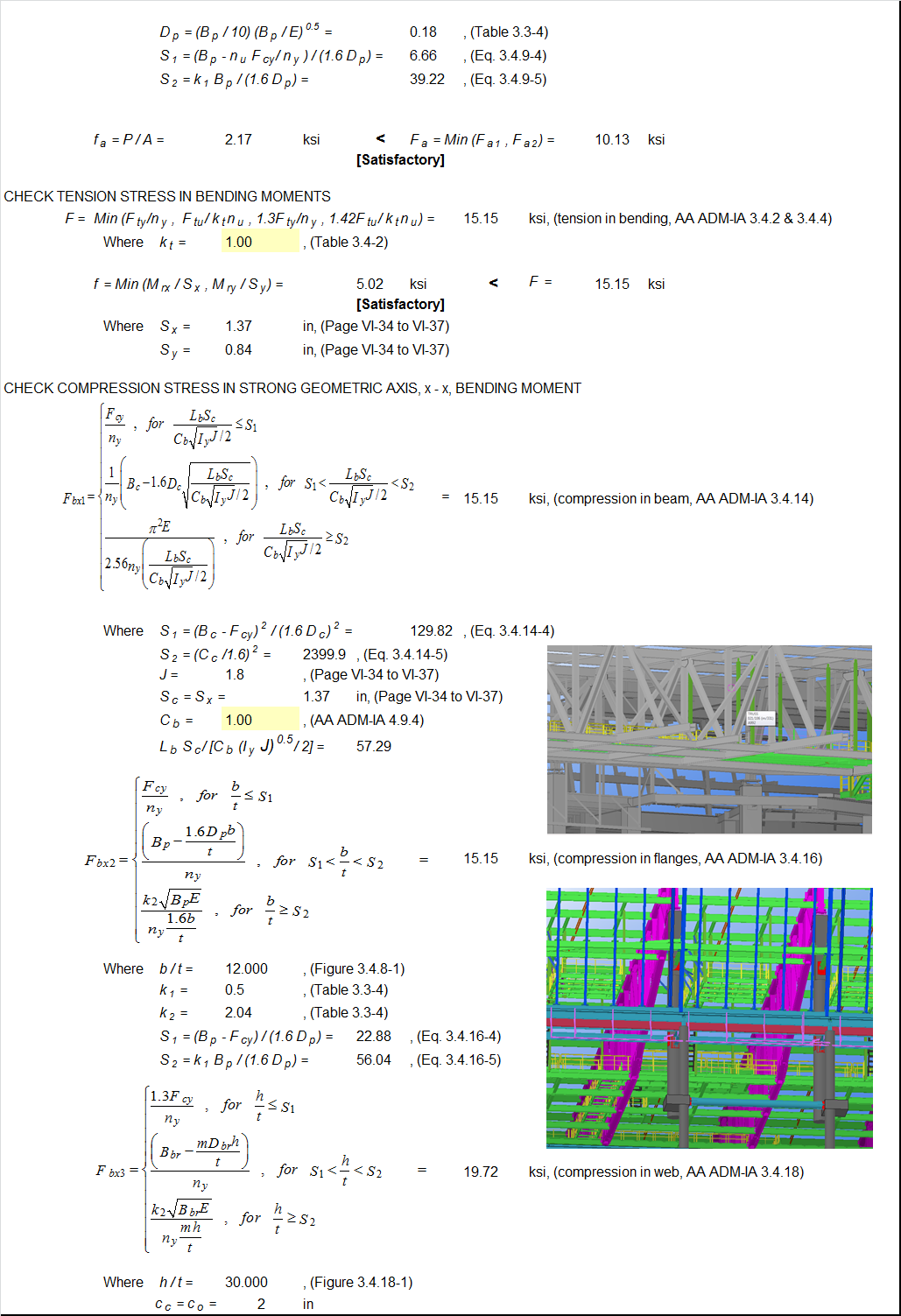

Calculation Preview
(5/16)
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
×
6 years ago
thanks
13 years ago
I have extended your XLC Pro subscription by way of thanks.
Area of web resisting shear (should be as follows:
Strong axes: Aw = 2 * t *(d - 2 * t)
Weak axes: Aw = 2 * t * (b – 2 * t)
Please let me know if you agree.
