Grating Aluminum Beam Design

(4/17)

Description


This spreadsheet calculates the capacity of an Aluminum Wide Flange Beam or Channel subjected to strong axis bending.

It is in accordance with the 2000 Aluminum Design Manual.

Aluminum Design Manual
Table of Contents
IA Specification for Aluminum Structures –Allowable Stress Design
IB Specification for Aluminum Structures –Building Load and Resistance Factor Design
IIA Commentary on Specification for Aluminum Structures – Allowable Stress Design
IIB Commentary on Specification for Aluminum Structures –Building Load and Resistance Factor Design
III Design GuideIV MaterialsV Material PropertiesVI Section PropertiesVII Design Aids
VIII Illustrative Examples of Design
IX Guidelines for Aluminum Sheet Metal Work in Building Construction
Appendix 1 Metric Guide for Aluminum Structural Design

Calculation Reference

Aluminium Design Manual

Structural Design

Buckling of Slender Members

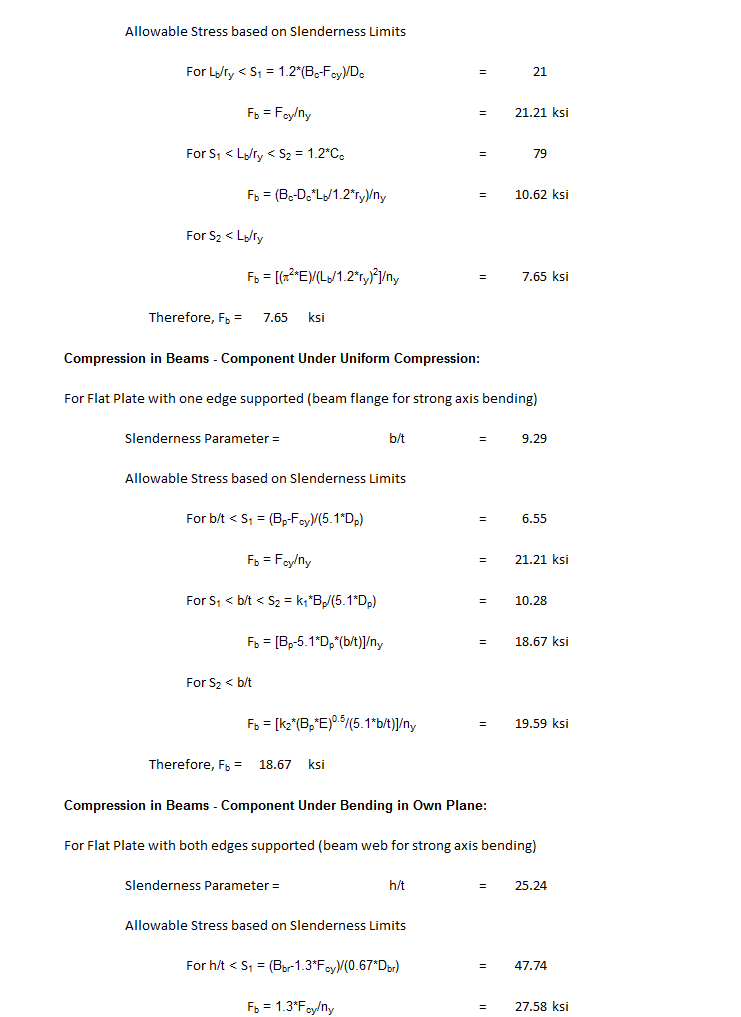

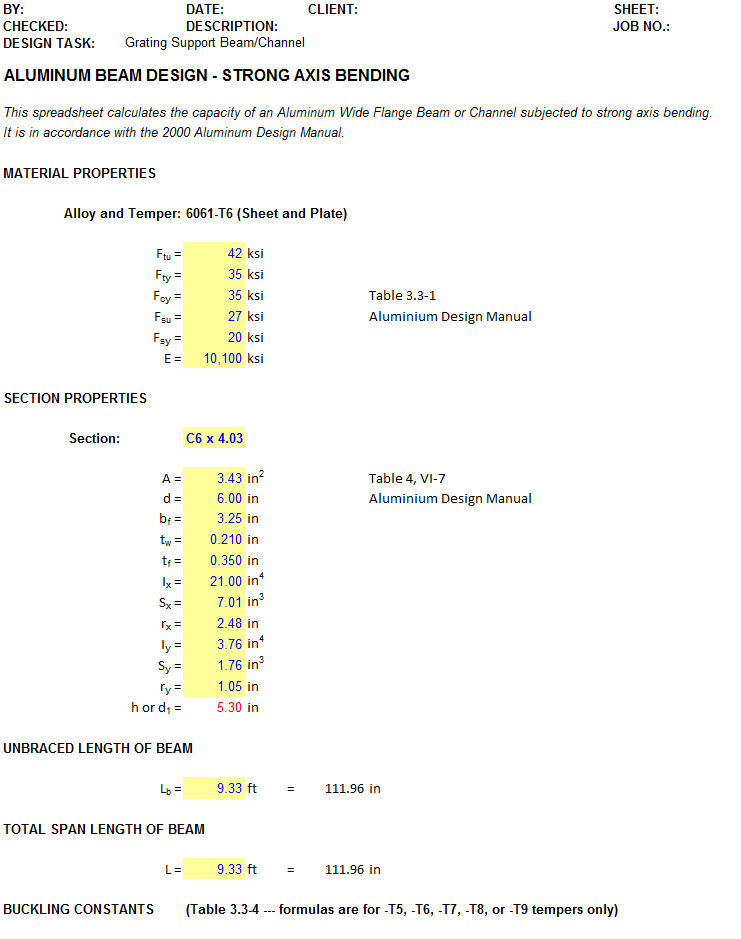

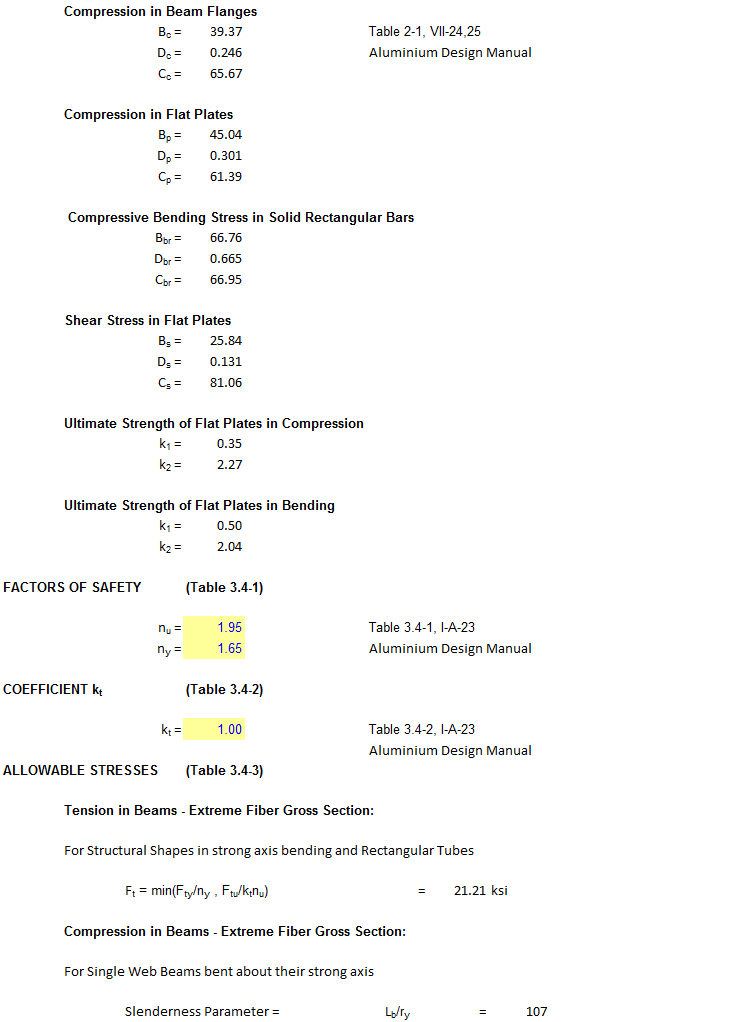

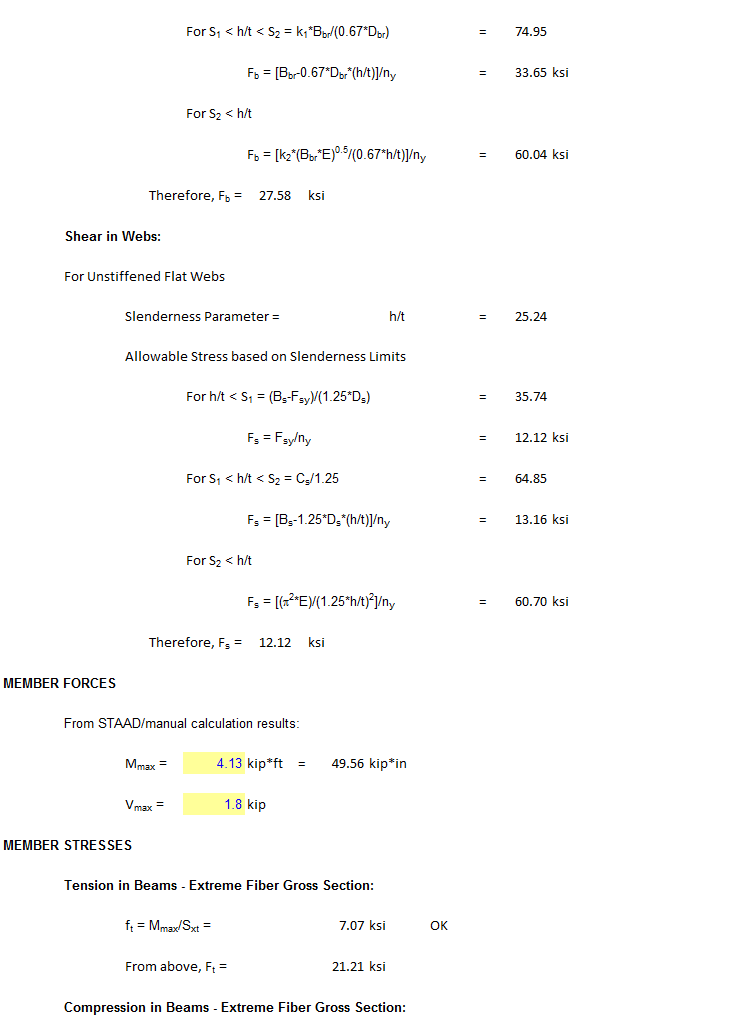

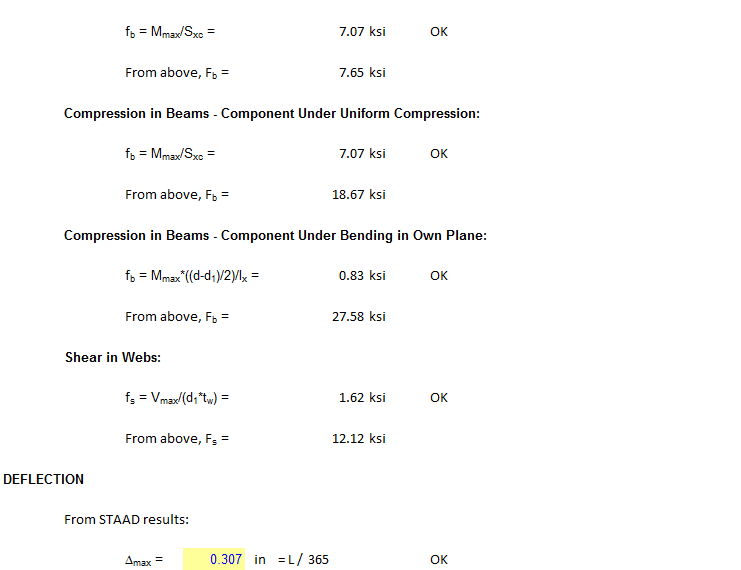

Calculation Preview

05 Sep 2012
File Size: 24.31 Kb
Downloads: 232
File Version: 1.0
File Author: Manoj Jaiswal
File Rating (4/17)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
hesham1988723 2 years ago
excellent
johndoyle-admin 12 years ago
I have added a link to [The Aluminum Design Guide](http://www.scribd.com/doc/37945845/Aluminum-Design-Manual-2005). It would be useful if the calculation included some explanatory sketches. I have awarded a free 3 month extension to your XLC Pro Subscription by way of thanks. [Admin]
