Bored Piles Wall and Ground Anchors

(4/39)

Description

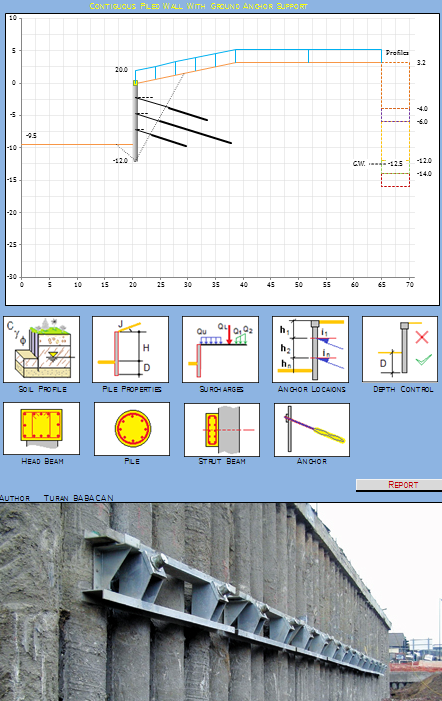

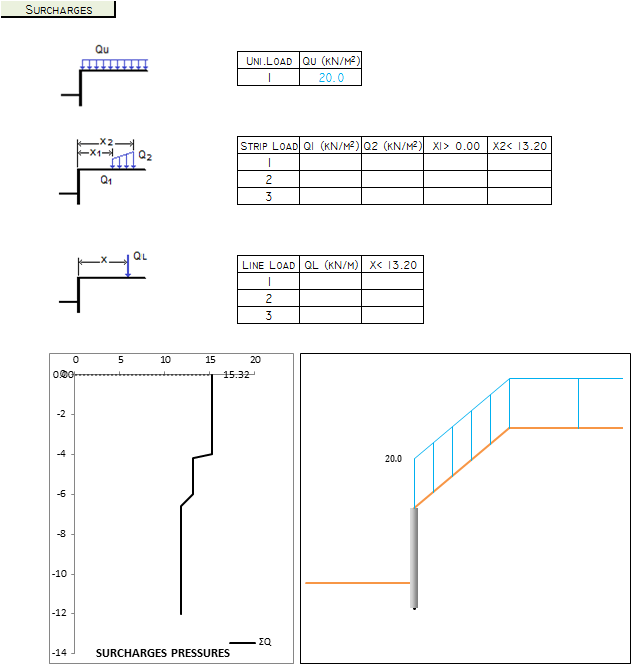

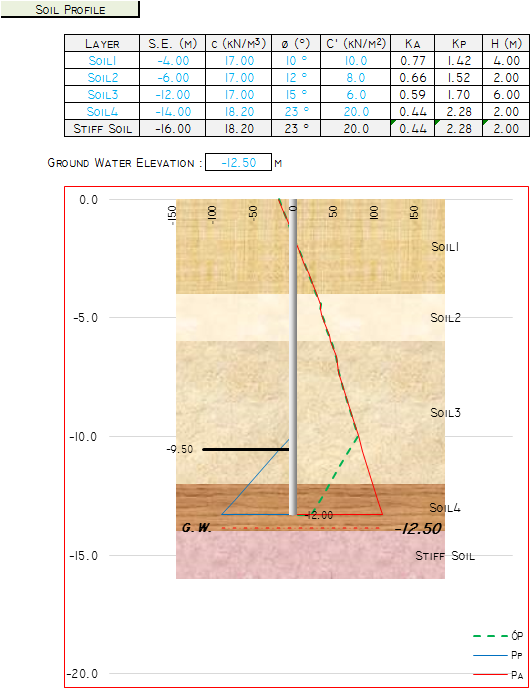

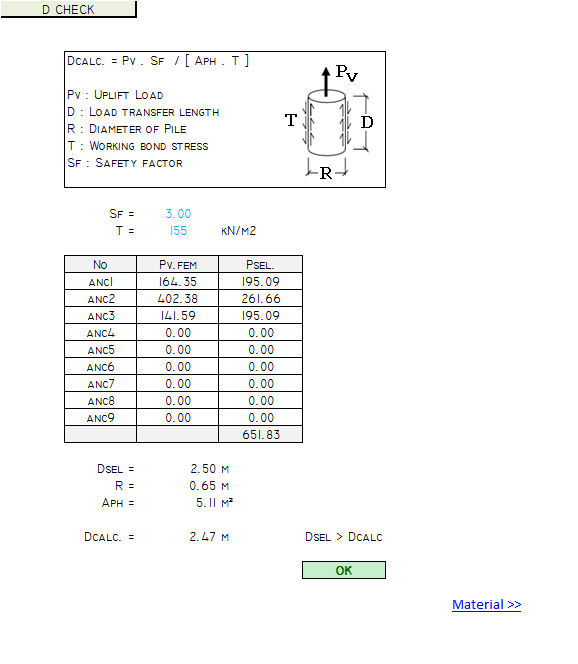

Contiguous piling is a highly effective method of creating a retaining wall before excavations even begin. An ideal solution for earth retention where existing structures are close to site boundaries and excavations where ground water is present, piled walls create a temporary or permanent retaining structure enabling safe excavation to take place after installation of the piles. This download will help you design them.

Calculation Reference

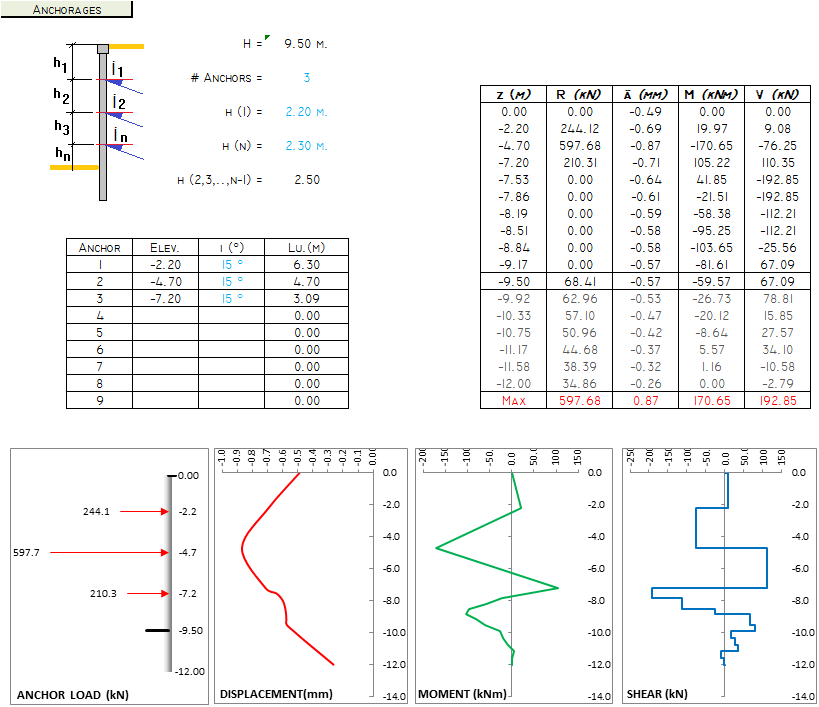

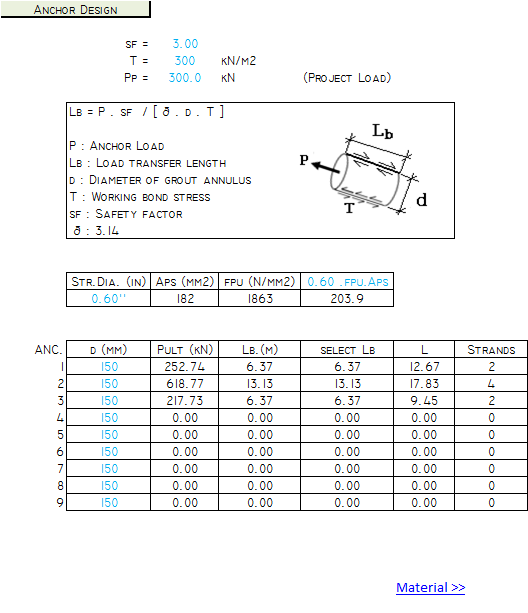

Ground Anchor Supports

Structural Analysis

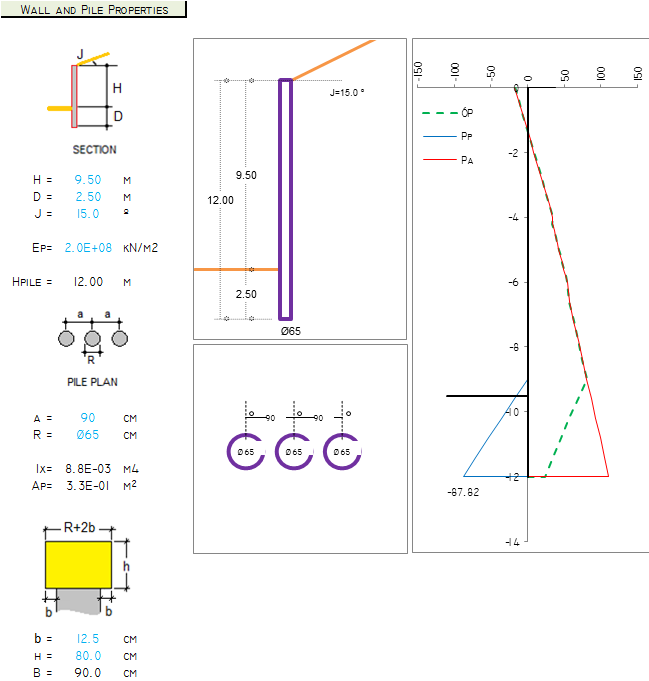

Contiguous Piled Wall

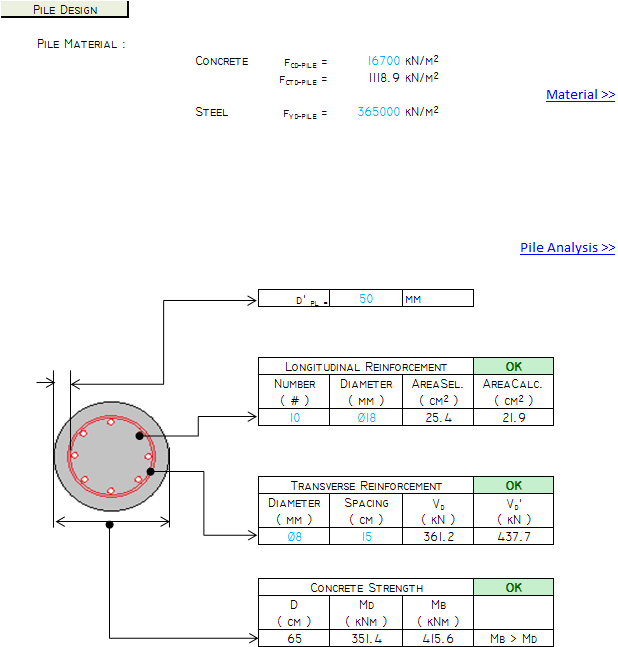

Pile Design

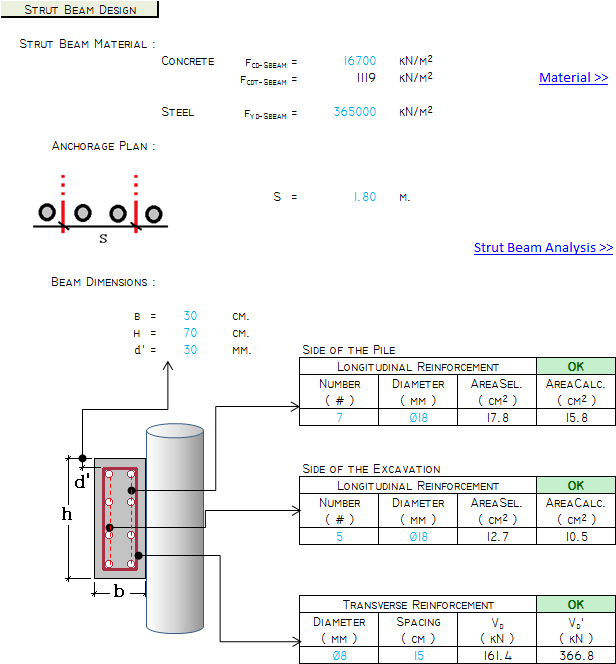

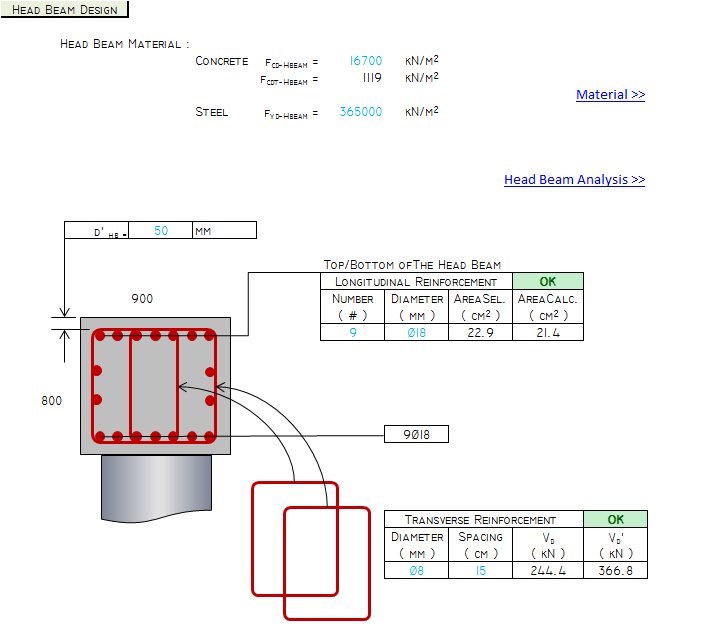

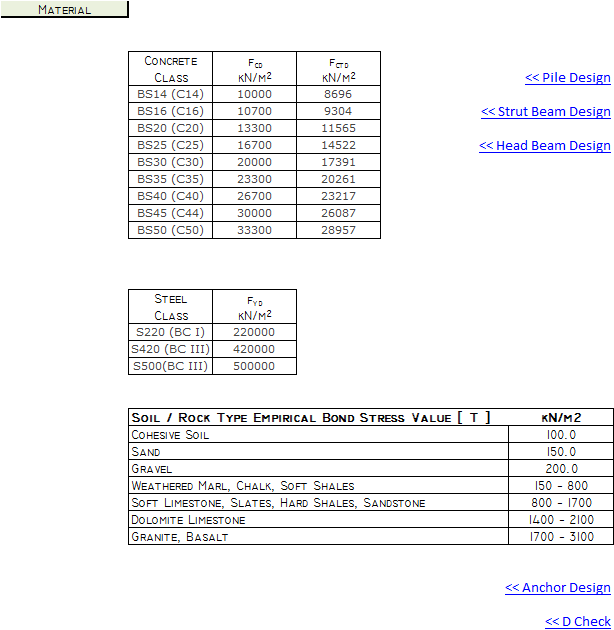

Calculation Preview

Turan Babacan (babacan)
12 Mar 2014
File Size: 368.18 Kb
Downloads: 735
File Version: 1.6
File Author: Turan Babacan
File Rating (4/39)
