Calculation of Modulus of Subgrade Reaction

(4/12)

Description

Modulus of subgrade reaction or coefficient of subgrade reaction is the reaction pressure sustained by the soil sample under a rigid plate of standard diameter per unit settlement measured at a specified pressure or settlement. It is a stiffness parameter that is commonly used to define the support conditions of footings and mat foundations. This parameter explains a linear elastic response. Hence during the design, the pressure generated by the modulus of subgrade reaction is limited to the allowable bearing pressure of the soil. The coefficient of sub-grade reaction (k) is the primary parameter used in the design of pavements, foundation, and soil-structure interaction studies.

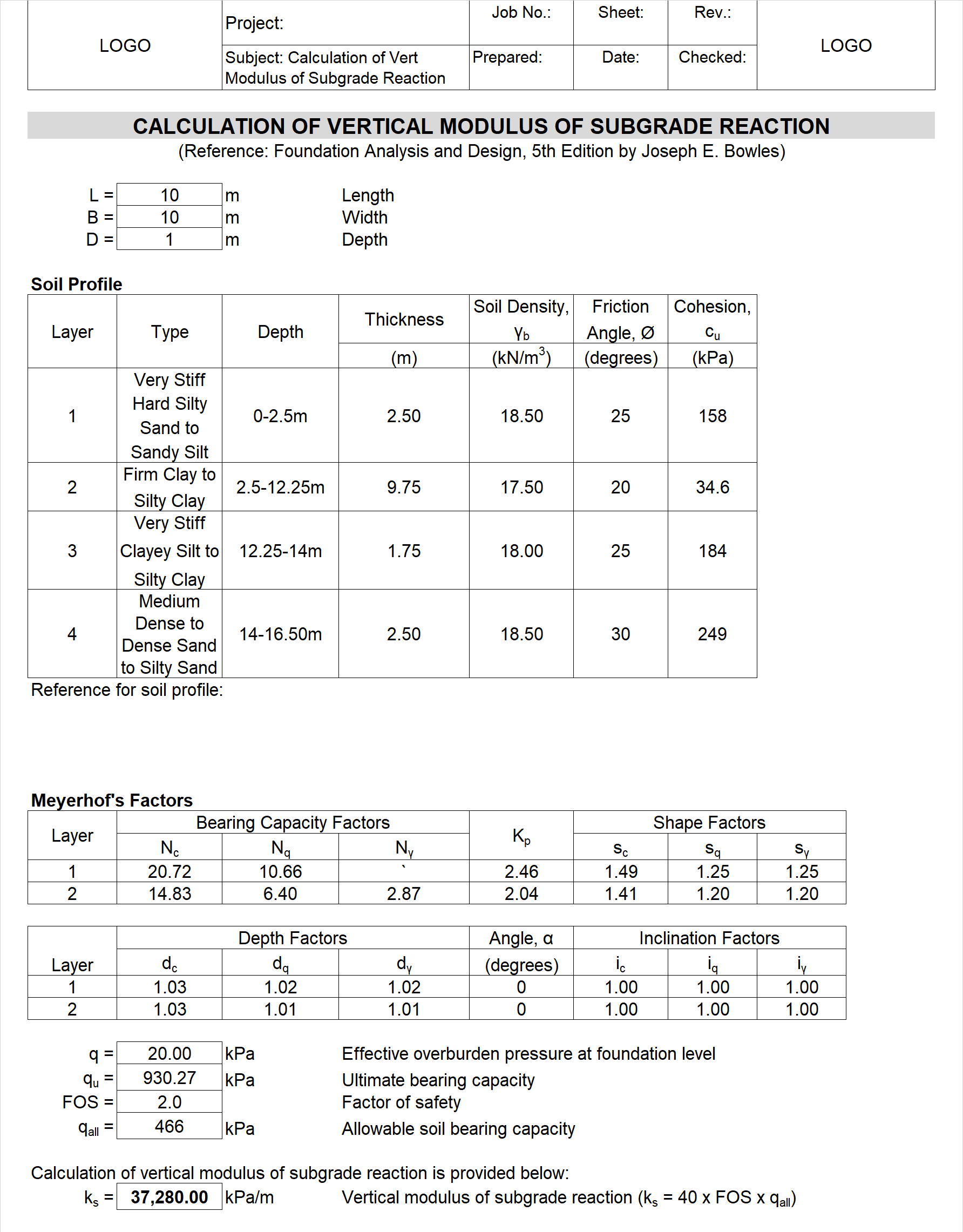

Calculation Preview

26 Oct 2021
File Size: 17.03 Kb
Downloads: 107
File Version: 1.0
File Author: Sureshbabu NArayanasamy
File Rating (4/12)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
nsureshbabu1980 3 years ago
yes you can
pepo 3 years ago
If we can trail this calculation sheet?
johndoyle[admin] 3 years ago
Thanks for your contribution I have awarded a 3 month extension to your XLC Pro subscription by way of thanks. [Admin]
