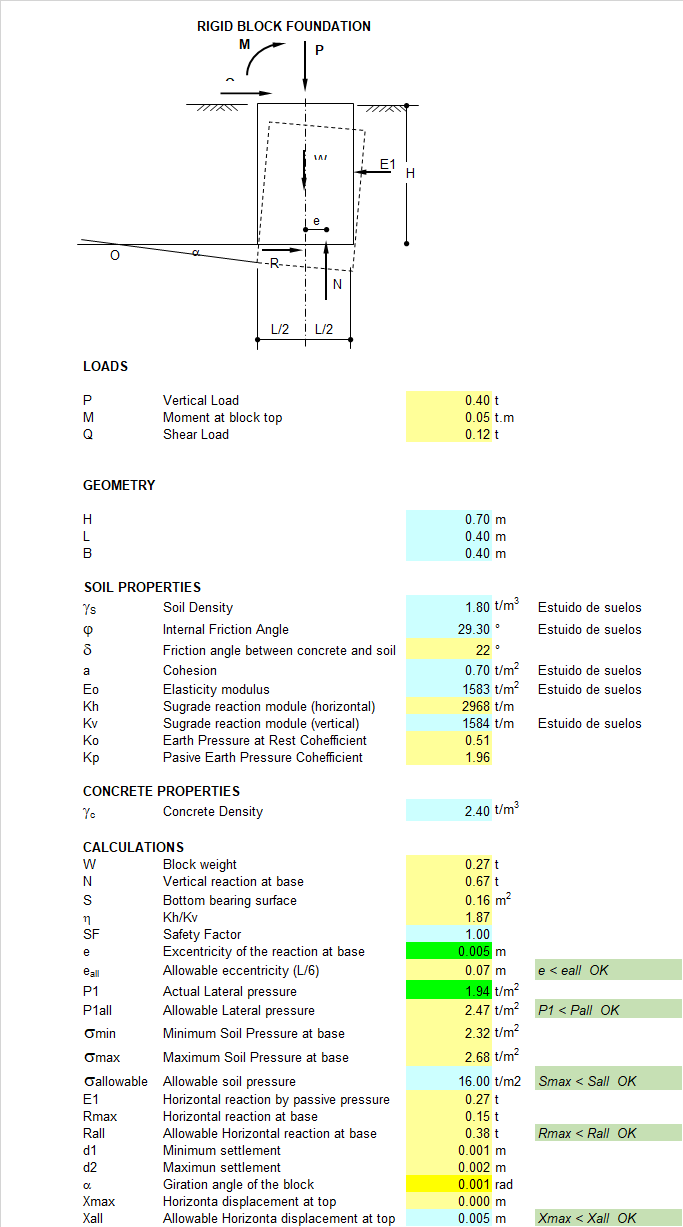

FOUNDATION DESIGN
(4/9)
Description
Vertical Load
Moment at block top
Shear Load
Soil Density
Internal Friction Angle
Friction angle between concrete and soil
Cohesion
Elasticity modulus
Sugrade reaction module (horizontal)
Sugrade reaction module (vertical)
Earth Pressure at Rest Cohefficient
Pasive Earth Pressure Cohefficient
Concrete Density
Block weight
Vertical reaction at base
Bottom bearing surface
Kh/Kv
Safety Factor
Excentricity of the reaction at base
Allowable eccentricity (L/6)
Actual Lateral pressure
Allowable Lateral pressure
Minimum Soil Pressure at base
Maximum Soil Pressure at base
Allowable soil pressure
Horizontal reaction by passive pressure
Horizontal reaction at base
Allowable Horizontal reaction at base
Minimum settlement
Maximun settlement
Giration angle of the block
Horizonta displacement at top
Allowable Horizonta displacement at top
Calculation Reference
Foundation Design
Concrete Design
Stability of Buildings
Calculation Preview
