Foundation Support of a Tank

Rating:
1

Description

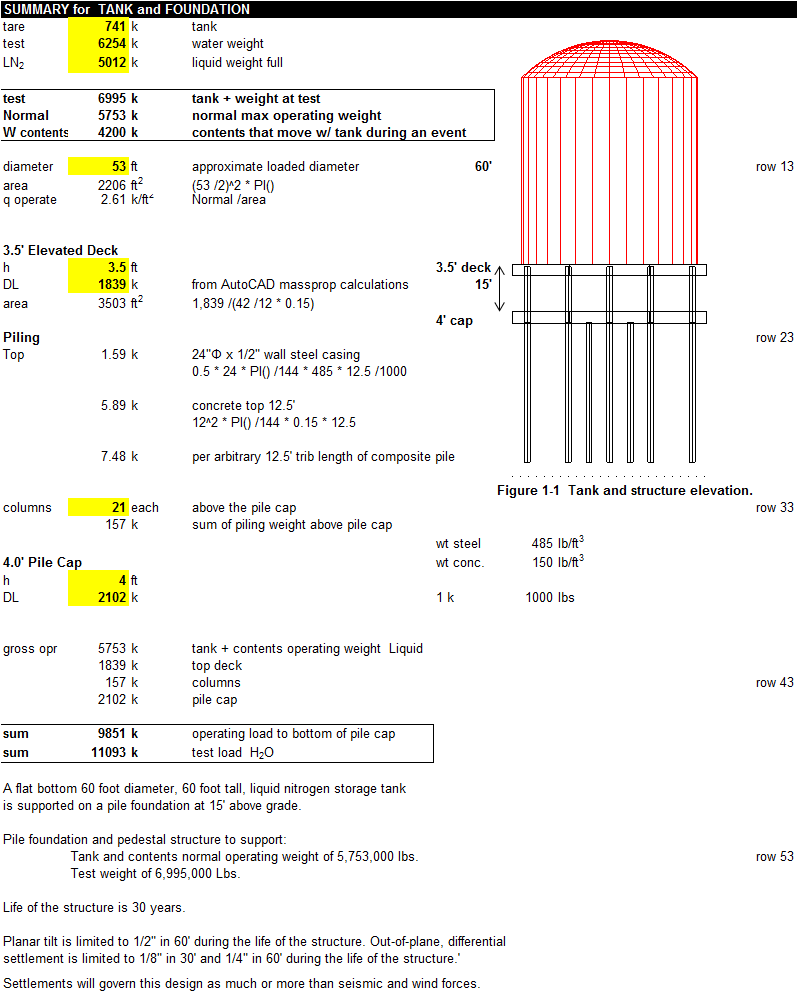

SUMMARY
A flat bottom 60 foot diameter, 60 foot tall, liquid nitrogen storage tank is supported on a pile foundation at 15' above grade. Pile foundation and pedestal structure to support:
Life of the structure is 30 years. Planar tilt is limited to 1/2" in 60' during the life of the structure. Out-of-plane, differential settlement is limited to 1/8" in 30' and 1/4" in 60' during the life of the structure. Settlements will govern this design as much or more than seismic and wind forces.

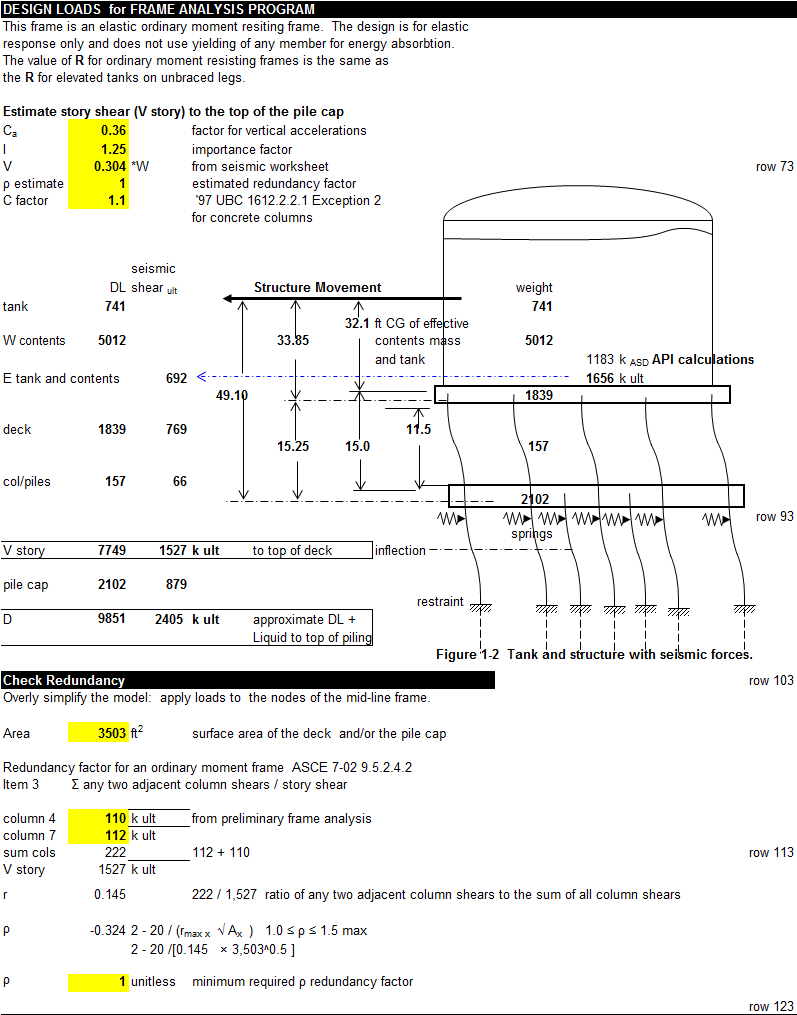

DESIGN LOADS  for FRAME ANALYSIS PROGRAM
This frame is an elastic ordinary moment resiting frame.  The design is for elastic response only and does not use yielding of any member for energy absorbtion. The value of R for ordinary moment resisting frames is the same as the R for elevated tanks on unbraced legs.

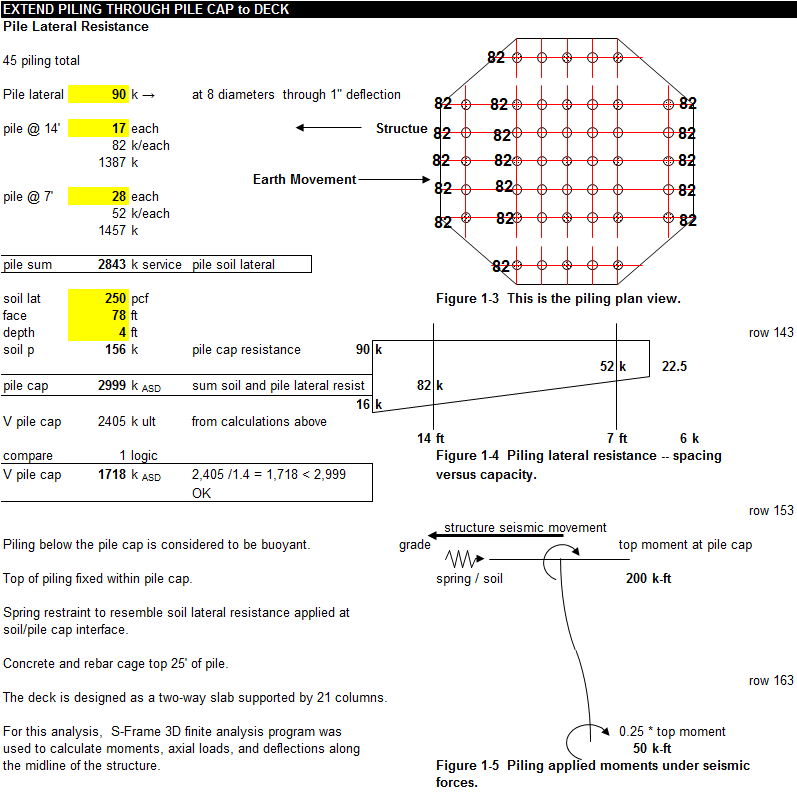

EXTEND PILING THROUGH PILE CAP to DECK
Piling below the pile cap is considered to be buoyant. Top of piling fixed within pile cap.Spring restraint to resemble soil lateral resistance applied at soil/pile cap interface. Concrete and rebar cage top 25' of pile. The deck is designed as a two-way slab supported by 21 columns.For this analysis,  S-Frame 3D finite analysis program was used to calculate moments, axial loads, and deflections along the midline of the structure.

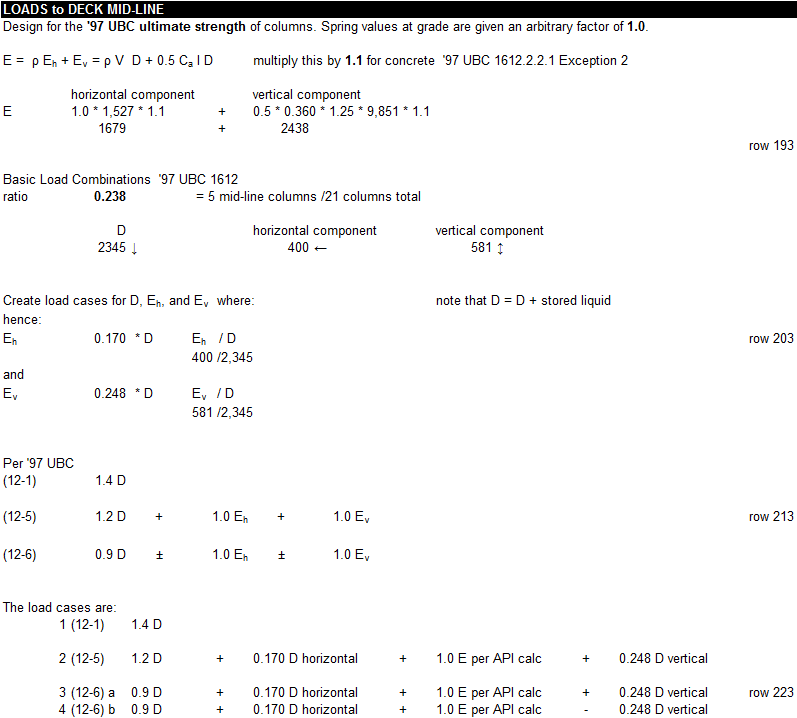

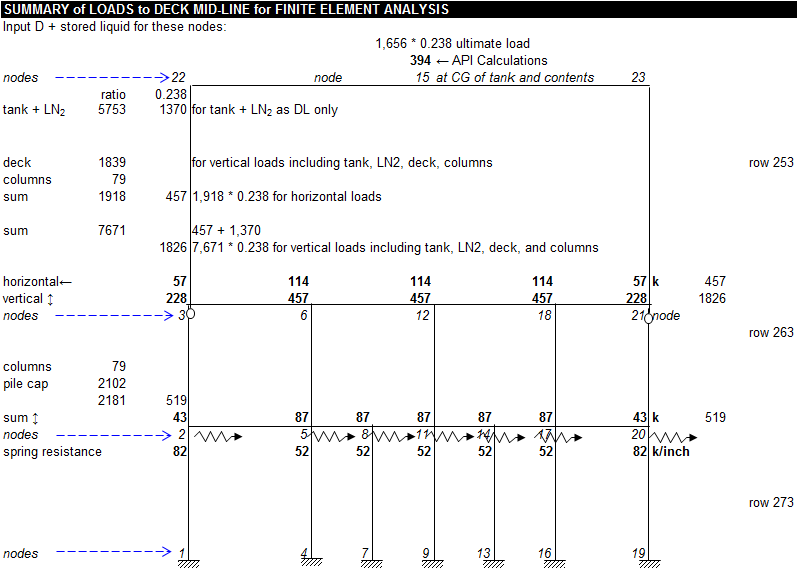

LOADS to DECK MID-LINE
Design for the '97 UBC ultimate strength of columns. Spring values at grade are given an arbitrary factor of 1.0.

Calculation Reference
Pile Foundation
Pile Design UBC
Pile Design ASCE

Calculation Preview

Uploaded
29 Oct 2012
Last Modified
03 Nov 2012
File Size:
262.00 Kb
Downloads:
395
File Version:
1.0
File Author:
Ryan Darwin
Rating:
1


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
JohnDoyle[Admin] 11 years ago
I was a little unsure if we should publish this calculations given that it relates to a pretty specific design and relies upon access to a finite element program. Generally we prefer calculations to be generic self contained calculations. After some reflection I thought it at least shows the process that you have gone though and this in itself might be of interest. I have extended your XLC Pro subscription by 3 months by way of thanks. [Admin]
