Steel Detailing Guide - Wrench and socket Clearance

Rating:
0

Description

Includes details for bolting clearances for below list :
OPEN JAW WRENCHES
SINGLE ENDED OPEN JAW SLUGGING WRENCHES
SOCKET WRENCH  AND OPEN WRENCH
SINGLE ENDED BI HEXAGONAL SLUGGING WRENCHES
SOCKETS-MANUAL & Impact
RING WRENCHES
T_HANDLE WRENCHES

A description of the types of wrenches you've listed:

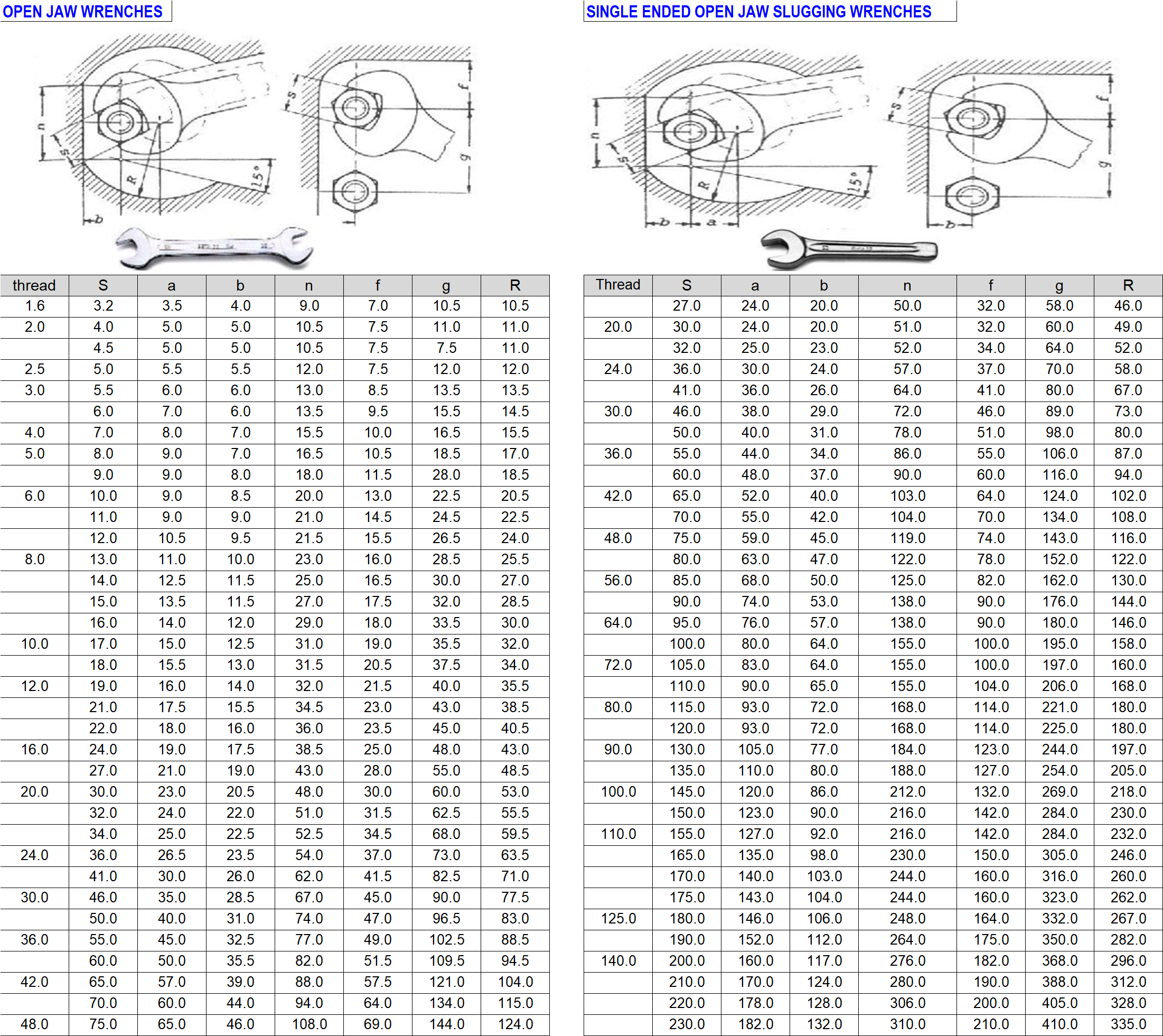

  1. Open Jaw Wrenches:

    • These wrenches have jaws that are open at one end. They are versatile for gripping nuts and bolts in tight spaces.
  2. Single Ended Open Jaw Slugging Wrenches:

    • Similar to open jaw wrenches, these are designed for heavy-duty applications. The term 'slugging' suggests they are capable of handling high impact or slugging forces.

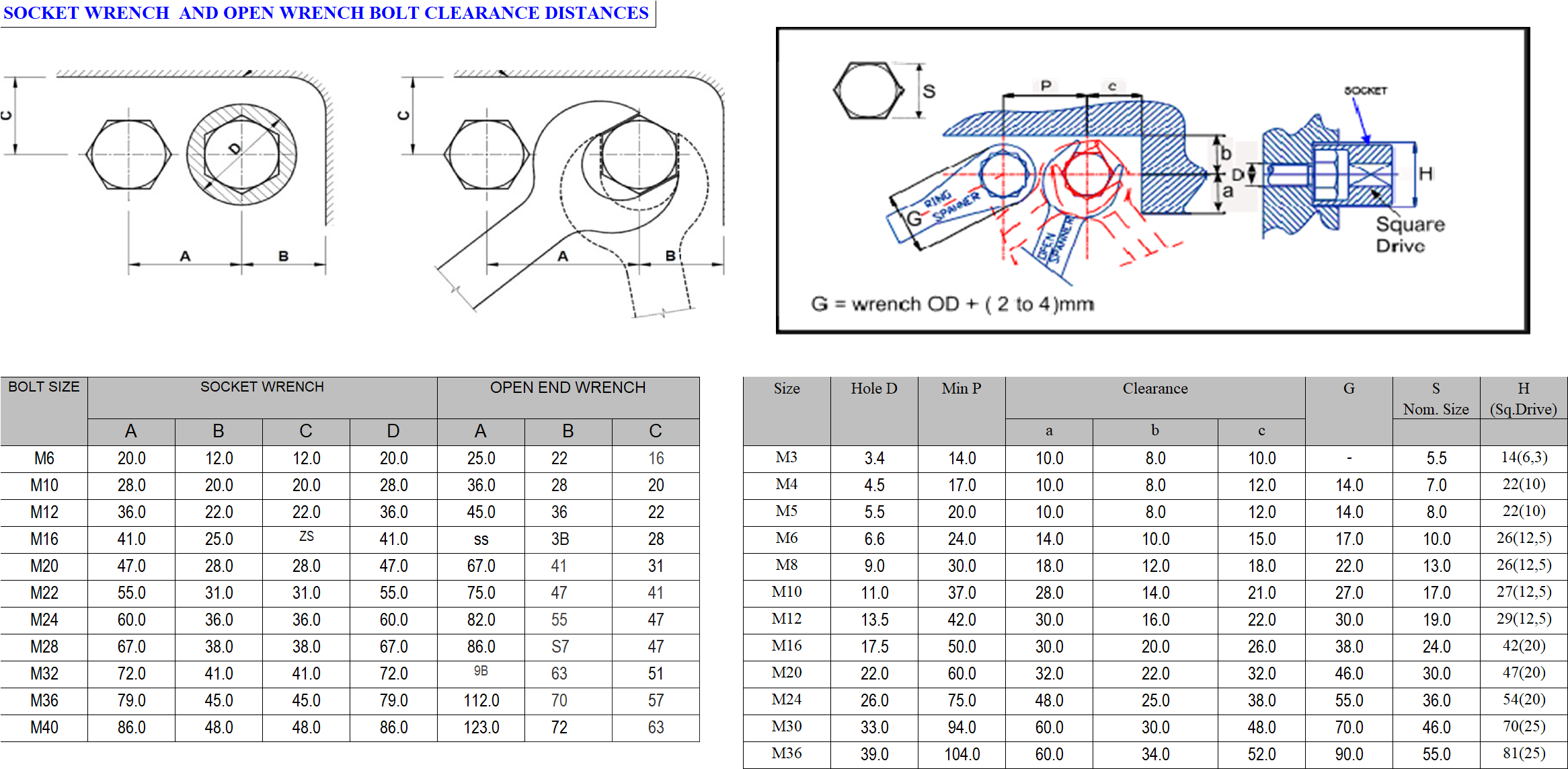

  3. Socket Wrench and Open Wrench:

    • This likely refers to a combination tool that has both a socket wrench (which uses socket attachments) and an open wrench (with a fixed-width open end).

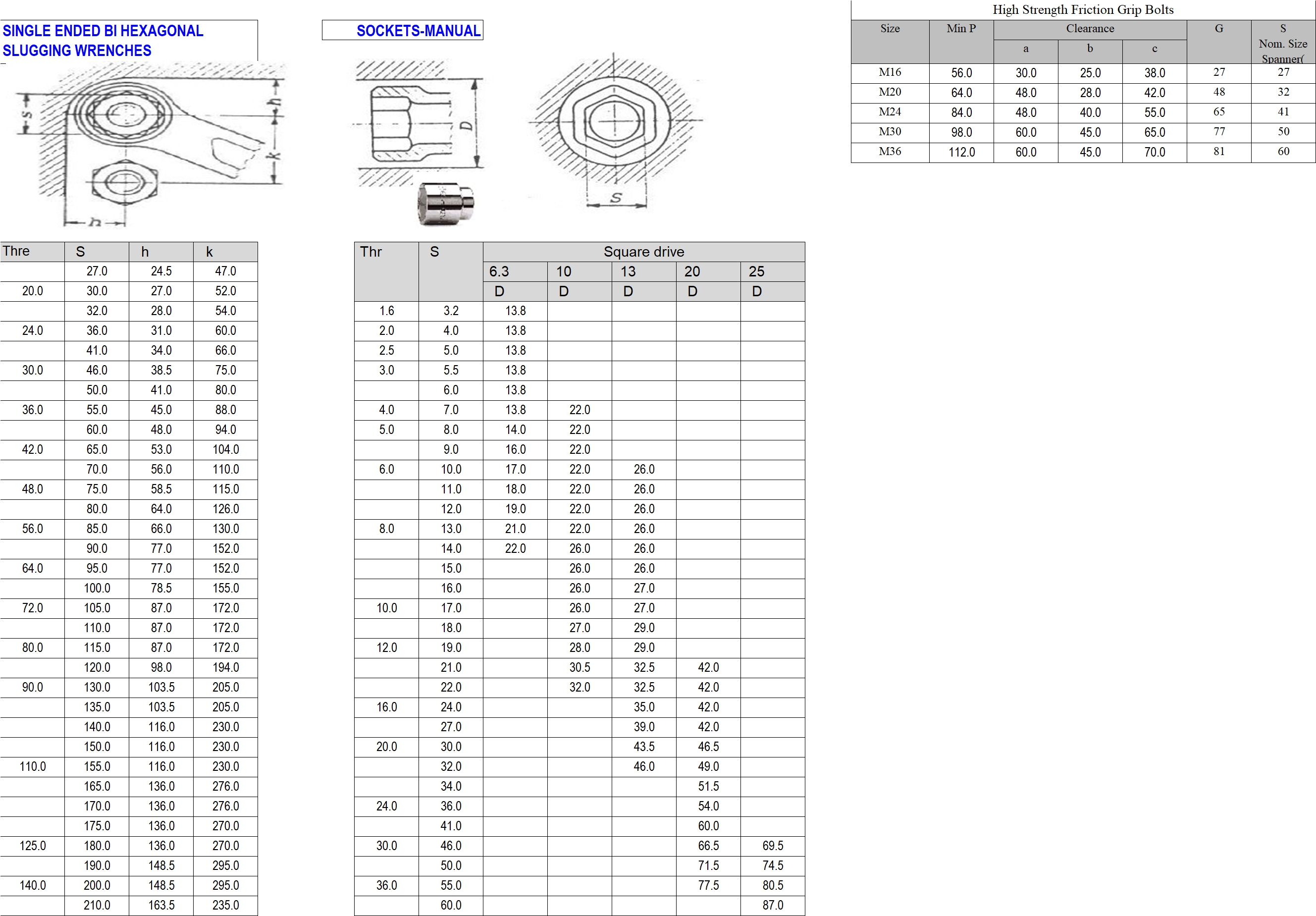

  4. Single Ended Bi-Hexagonal Slugging Wrenches:

    • These wrenches have a bi-hexagonal (12-point) configuration at the open end, providing more points of contact with the nut or bolt. Like the single-ended slugging wrenches, these are designed for heavy-duty applications.

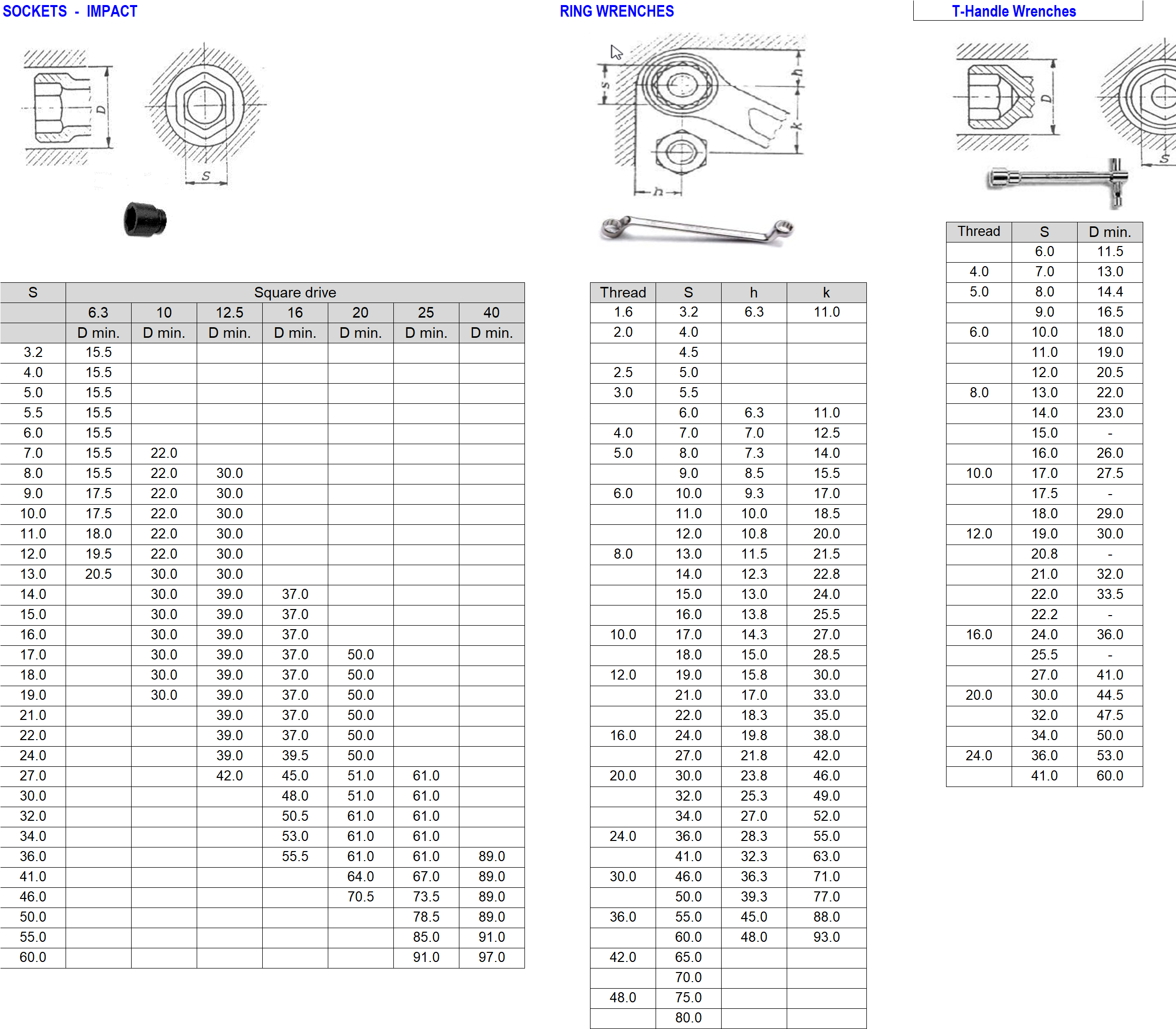

  5. Sockets - Manual & Impact:

    • Sockets are designed to fit onto a socket wrench or impact wrench. Manual sockets are for hand-operated wrenches, while impact sockets are built to withstand the higher torque produced by impact wrenches.
  6. Ring Wrenches:

    • These wrenches have a closed ring at both ends, providing a more secure grip on the fastener. They are suitable for situations where the wrench needs to be repeatedly repositioned.
  7. T-Handle Wrenches:

    • T-handle wrenches have a T-shaped handle for a comfortable grip and increased torque. They are commonly used in situations where higher torque is required, and they provide good leverage.

Each type of wrench serves specific purposes, and having a variety in your toolkit allows you to handle different tasks and challenges effectively.

Calculation Preview

Uploaded
20 Sep 2023
Last Modified
10 Nov 2023
File Size:
266.71 Kb
Downloads:
24
File Version:
1.0
File Author:
ALEX IMMANUEL THAINESE
Rating:
0


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
JohnDoyle[Admin] 6 months ago
I am sorry I seem to have overlooked this when you sent it in September 2023. I have added some details now and extended your XLC Pro subscription by 3 months by way of thanks.
