US Steel Sheet Pile Design

(4/27)

Description


US Steel Sheet Pile Design - Cantilevered Wall (Granular Soil) with Cooper E80 Surcharge

Spreadsheet Description:
Computes the depth required, maximum moment, and section modulus required for Sheet Pile Design based on US Steel's Sheet Piling Design Manual. There is a sheet to analyze the effects of Cooper E80 loading per AREMA Specifications. However,  normal traffic or equipment surcharge loads can be used as well. Graphs are provided for Log Spiral Active and Passive coefficients.

Table of Contents:

  1. Background and Instructions
  2. Calculations for Pile Depth
  3. Equation Solver and Graphical Check of Results

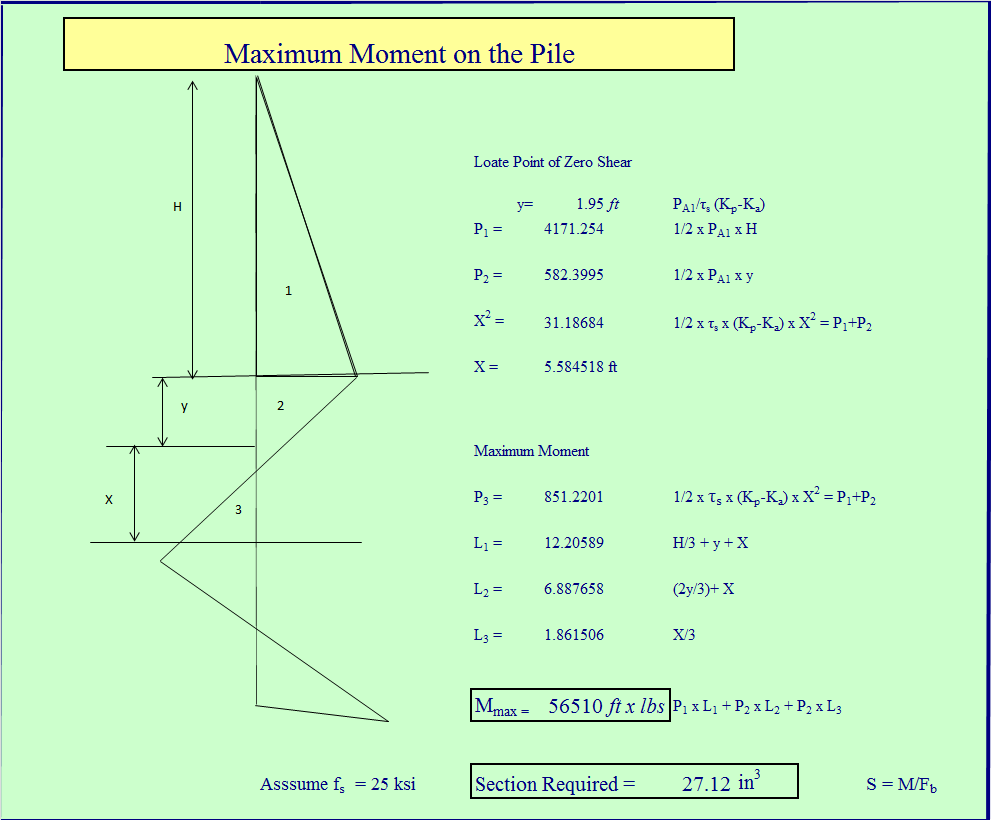

  4. Maximum Moment and Section Modulus

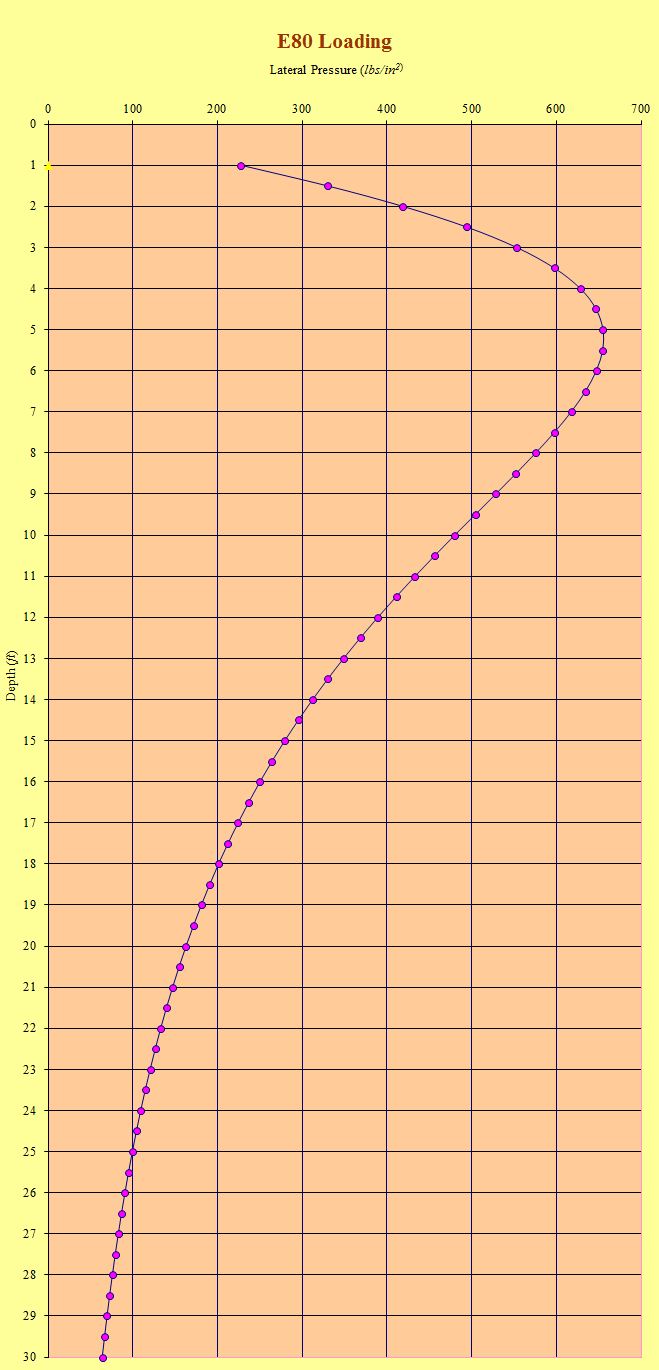

  5. Calculations and Graph of E80 AREMA Loading

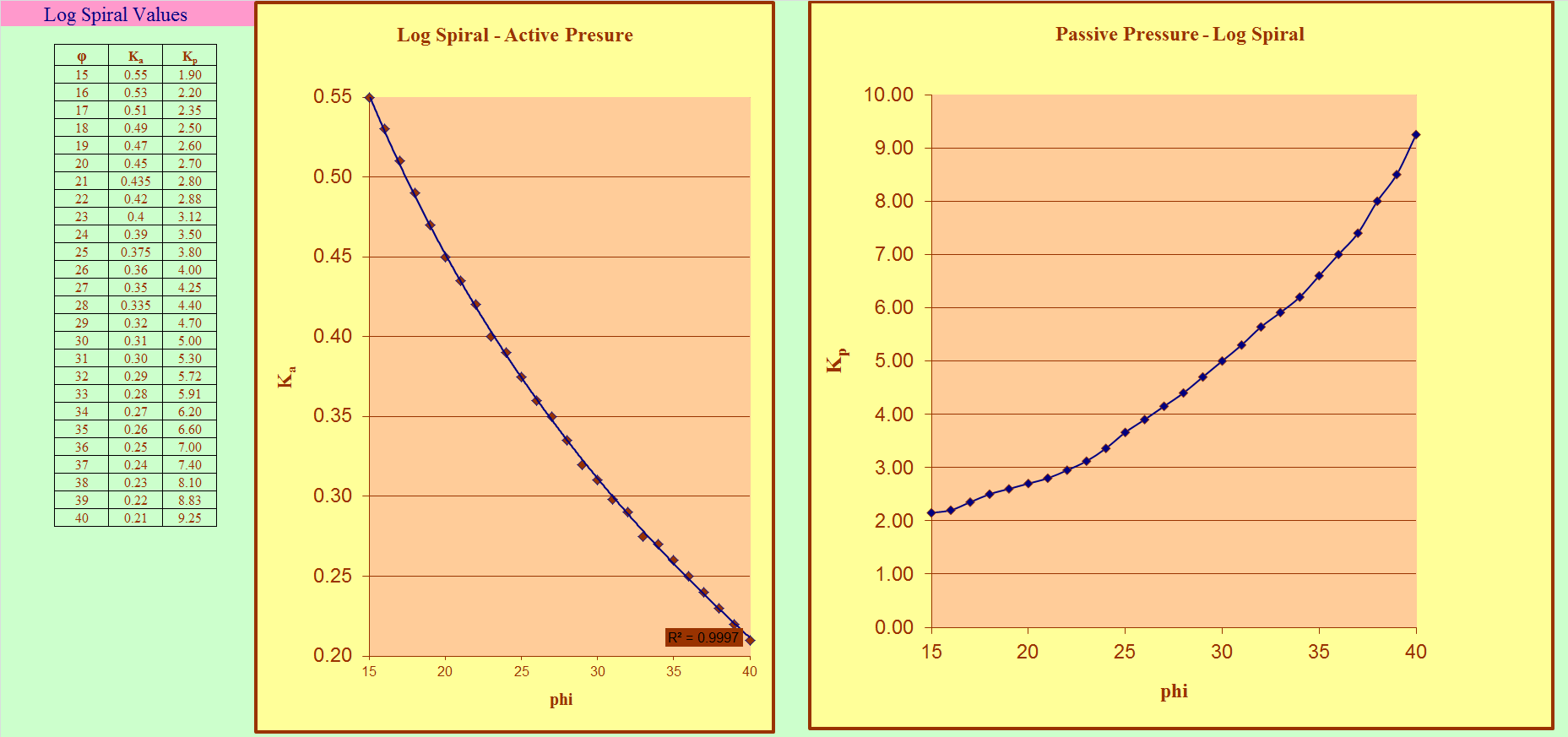

  6. Tables and Graphs of Log Spiral Curves Used for Active and Passive Coefficients


    Instructions For Users:
  7. Go to Pile Depth. Fill in white boxes with the appropriate data using drop lists

    Assumptions:
  8. For use cohesionless soils
  9. Ground water is lowered to the bottom of excavation

Calculation Reference

Soil Mechanics in Engineering Practice, K Terzaghi and R Peck

A Theoretical and Expermantal Analysis of Sheet Pile Walls, P. W. Rowe

Mechanics of Soils, Alfredo Jumikis

Pile Foundations, Robert Chellis

NAVFAC DM7-01 and DM7-02, US Gov't

Foundation Design, Wayne C Teng

Calculation Preview

09 Nov 2010
File Size: 509.00 Kb
Downloads: 561
File Version: 1.0
File Rating (4/27)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
ahmedhammad 5 years ago
I would like to have it seems very interesting
johndoyle[admin] 8 years ago
Units are a bit of a bug bear but maybe this could help [/support/faqs/trouble-with-units/](/support/faqs/trouble-with-units/)
