Excel Mini Graphics

(5/3)

Description

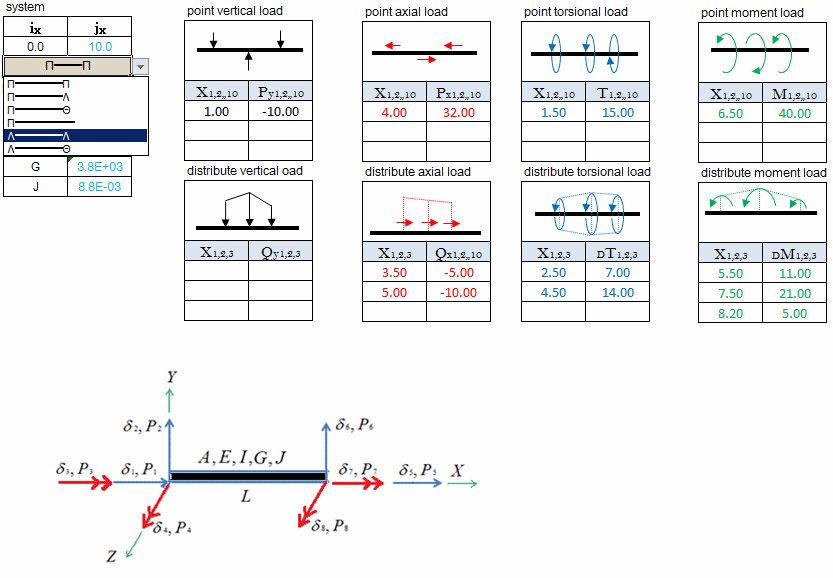

Apply axial, vertical,moments,torsion loading.

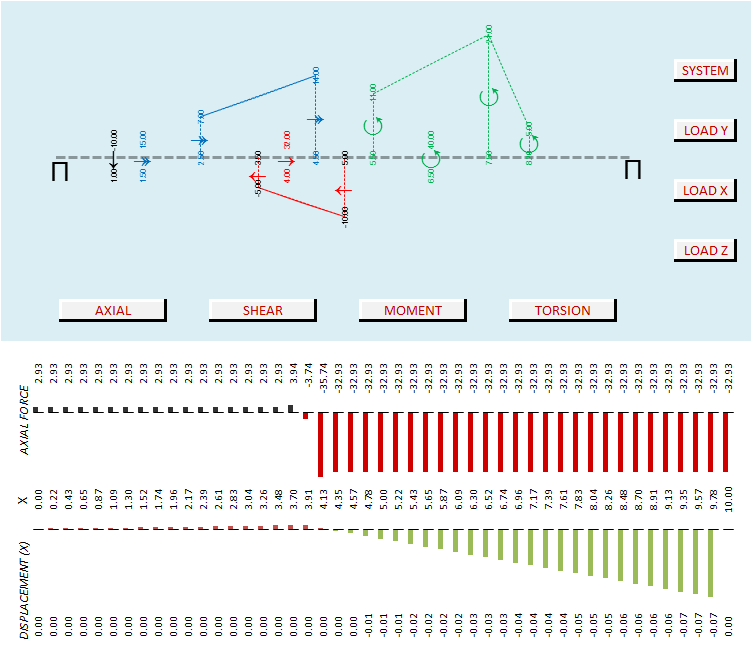

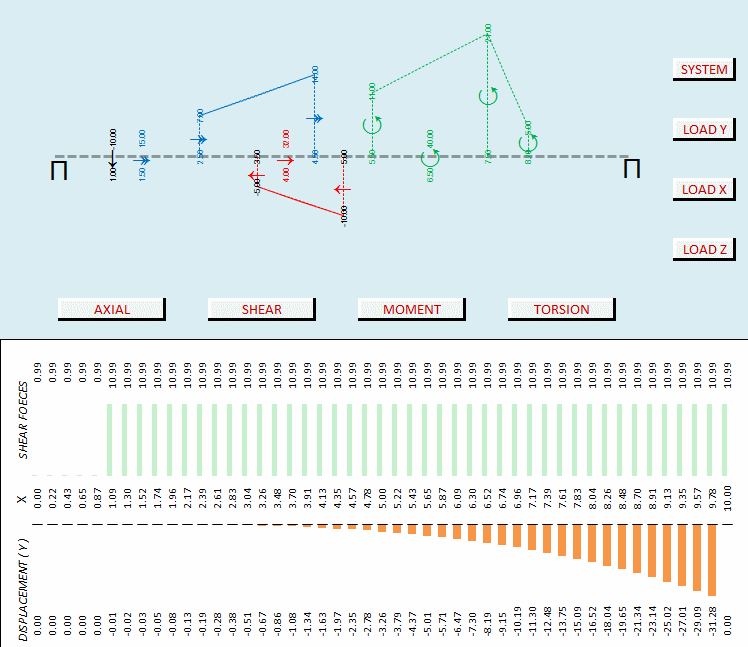

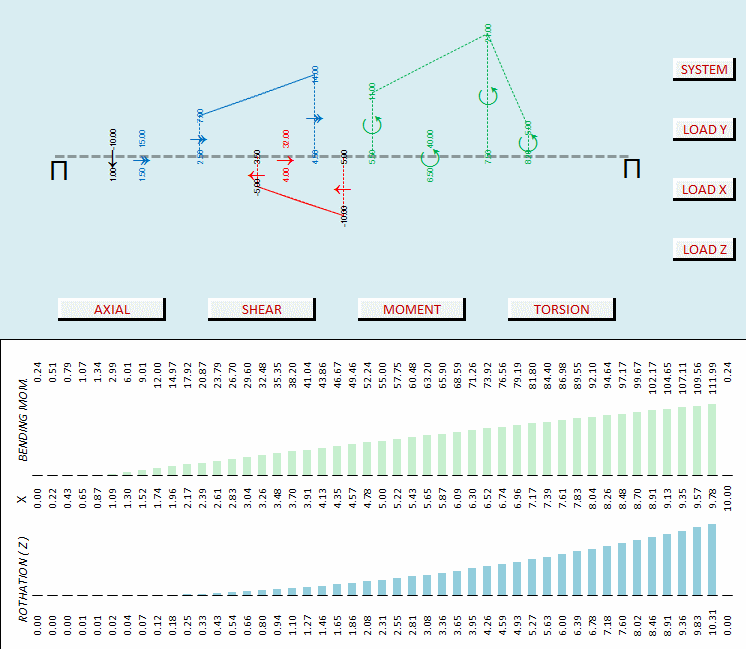

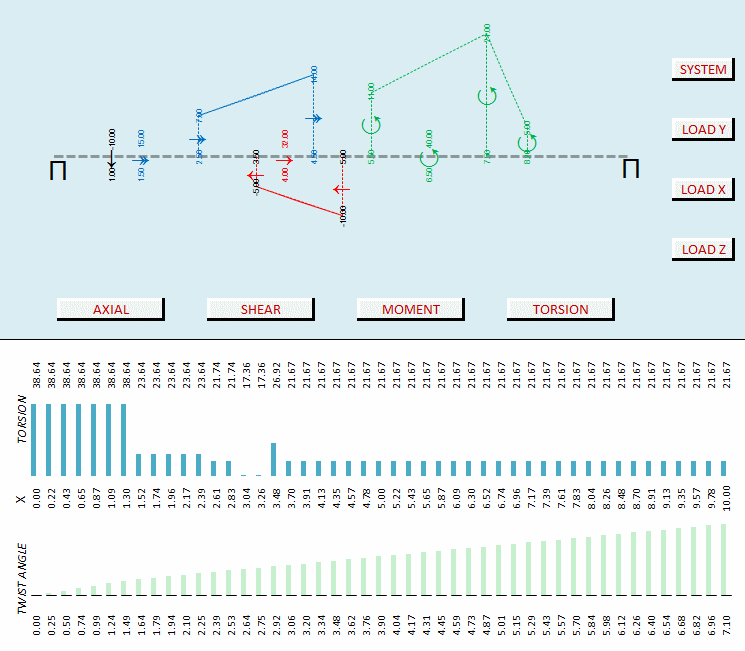

Excel mini graphics displays/force and torsion/displacement curves.

Select any support types (built in, simply supported and guided).

Calculation Reference
Beam Analysis

Structural Design

Stress Analysis

Calculation Preview

Turan Babacan (BABACAN)
29 Jan 2013
File Size: 109.81 Kb
Downloads: 198
File Version: 1.0
File Author: Turan Babacan
File Rating (5/3)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 3
DRT 11 years ago
Hi
I have just tried a simple support beam with one Y load in the centre and the results show an error in that the left and right side of the beam are not equal - it looks like there is a support (not shown) towards the right of the beam (please see picture)
![Image uploaded by user](http://i1180.photobucket.com/albums/x402/tuizner/2013-04-0310_54_31-MicrosoftExcel-LOADS_zps4754cfb6.jpg)
.
Aaron Biedenbach 11 years ago
Can the locations of the supports be changed?
JohnDoyle[Admin] 11 years ago
Well done again Turan once again you help me work faster, achieve more and make my bookshelves lighter :-)
