True Stress Strain Curve Generation

(5/13)

Description


Purpose of Calculation
Develop a true stress vs. true strain curve for use in design calculations requiring strain hardening to be considered. Typically used for non-linear finite element analysis.

Calculation Reference
ASME VIII Div 2 App 3D

Calculation Validation
Independently verified.
Formulae checked using XLC add-in for Excel.

Applicable Materials
Ferritic Steel
Stainless Steel and Nickel based alloys
Duplex stainless steel
Precipitation hardenable Nickel Base
Aluminium
Copper
Titanium and Zirconium

Calculation Reference
Non-Linear Structural Models

Strain Hardening

ASME VIII

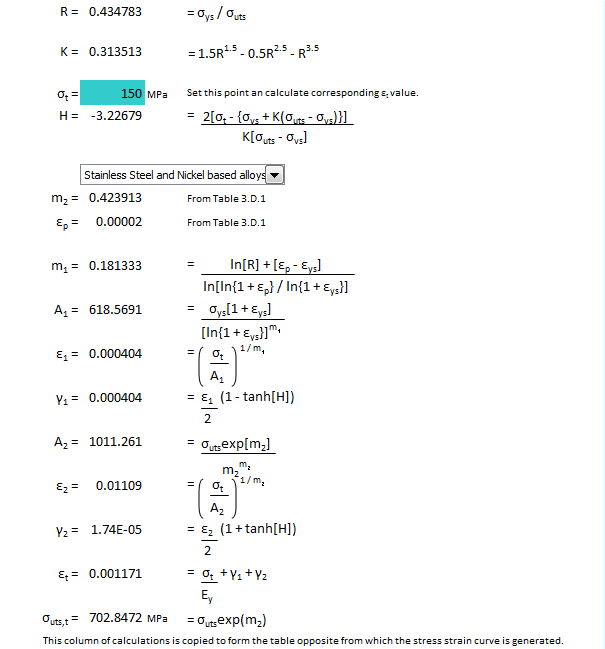

Calculation Preview
