PLATE CONNECTION

(5/1)

Description

Steel connections are a critical part of any steel structure, and the choice between bolted and welded connections can have a significant impact on the design, construction, and performance of the structure. Here are some of the key differences and considerations:

Bolted Lap Connection:

Merits:

  1. Ease of Assembly: Bolted connections are generally easier and faster to assemble on site, which can reduce construction time and costs.
  2. Inspection: It's easier to inspect bolted connections for proper installation and tightness.
  3. Adjustability: Bolted connections can be adjusted or disassembled if needed, which can be beneficial during construction or for future modifications.
  4. No Special Equipment: Bolted connections don't require special equipment or skilled labor for welding.

Drawbacks:

  1. Size: Bolted connections can be larger and heavier than welded connections due to the need for bolt holes and additional material for bearing stresses.
  2. Maintenance: Bolted connections may require periodic inspection and maintenance to ensure that the bolts remain tight.
  3. Aesthetics: Some people may find bolted connections less aesthetically pleasing than welded connections.

Welded Lap Connection:

Merits:

  1. Strength: Welded connections can provide a continuous connection between elements, which can result in a stronger and more rigid connection.
  2. Size: Welded connections can be smaller and lighter than bolted connections, which can be beneficial in situations where space or weight is a concern.
  3. Aesthetics: Welded connections can provide a smoother and more seamless appearance, which may be preferred for architectural or aesthetic reasons.

Drawbacks:

  1. Skill and Equipment: Welding requires special equipment and skilled labor, which can increase costs.
  2. Inspection: Inspecting the quality of a weld can be more difficult and may require special techniques or equipment.
  3. Adjustability: Once a weld is made, it's difficult to adjust or disassemble, which can be a disadvantage during construction or if future modifications are needed.

In general, the choice between bolted and welded connections will depend on a variety of factors, including the specific requirements of the project, the available resources and skills, and the local building codes and standards.

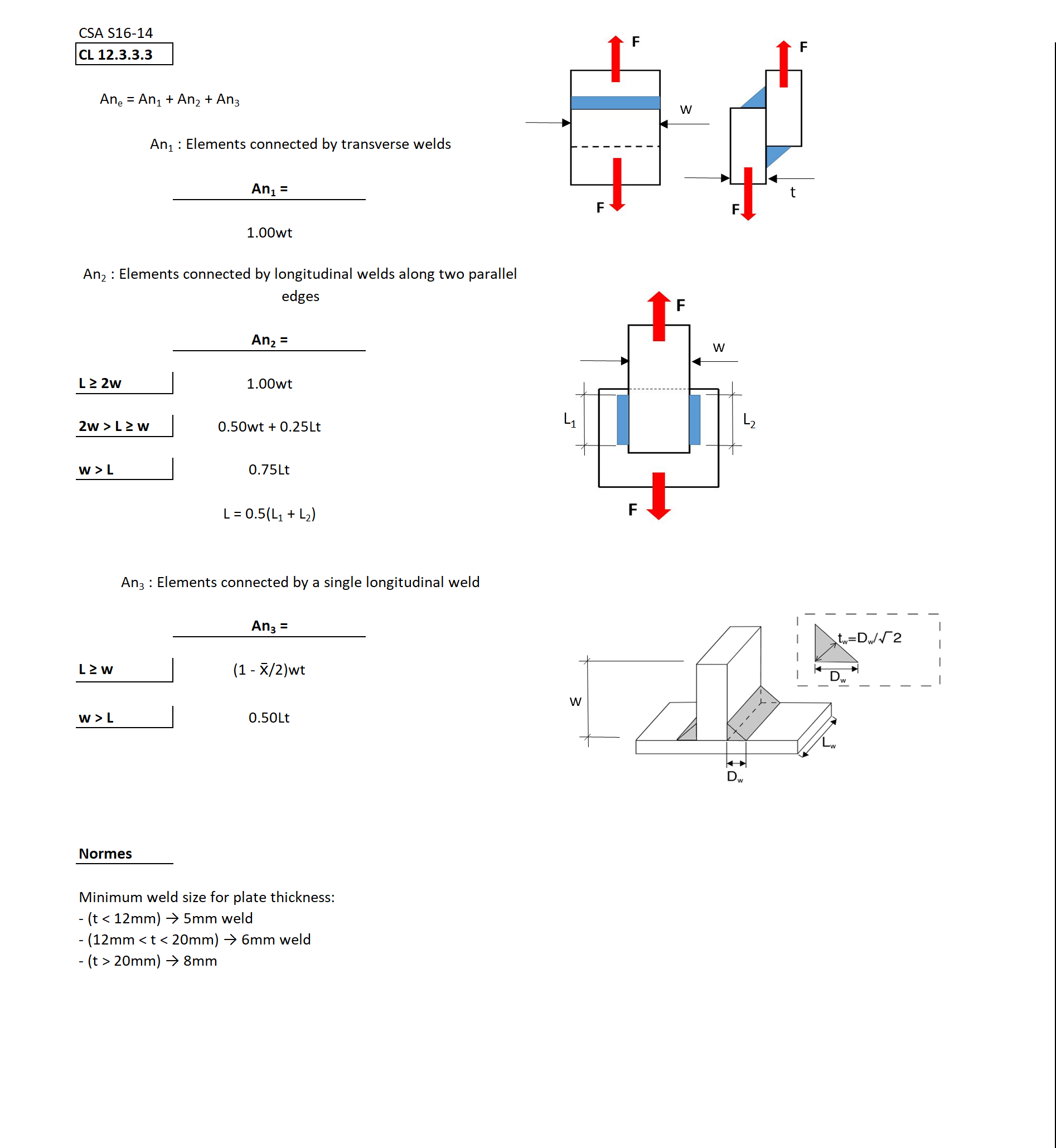

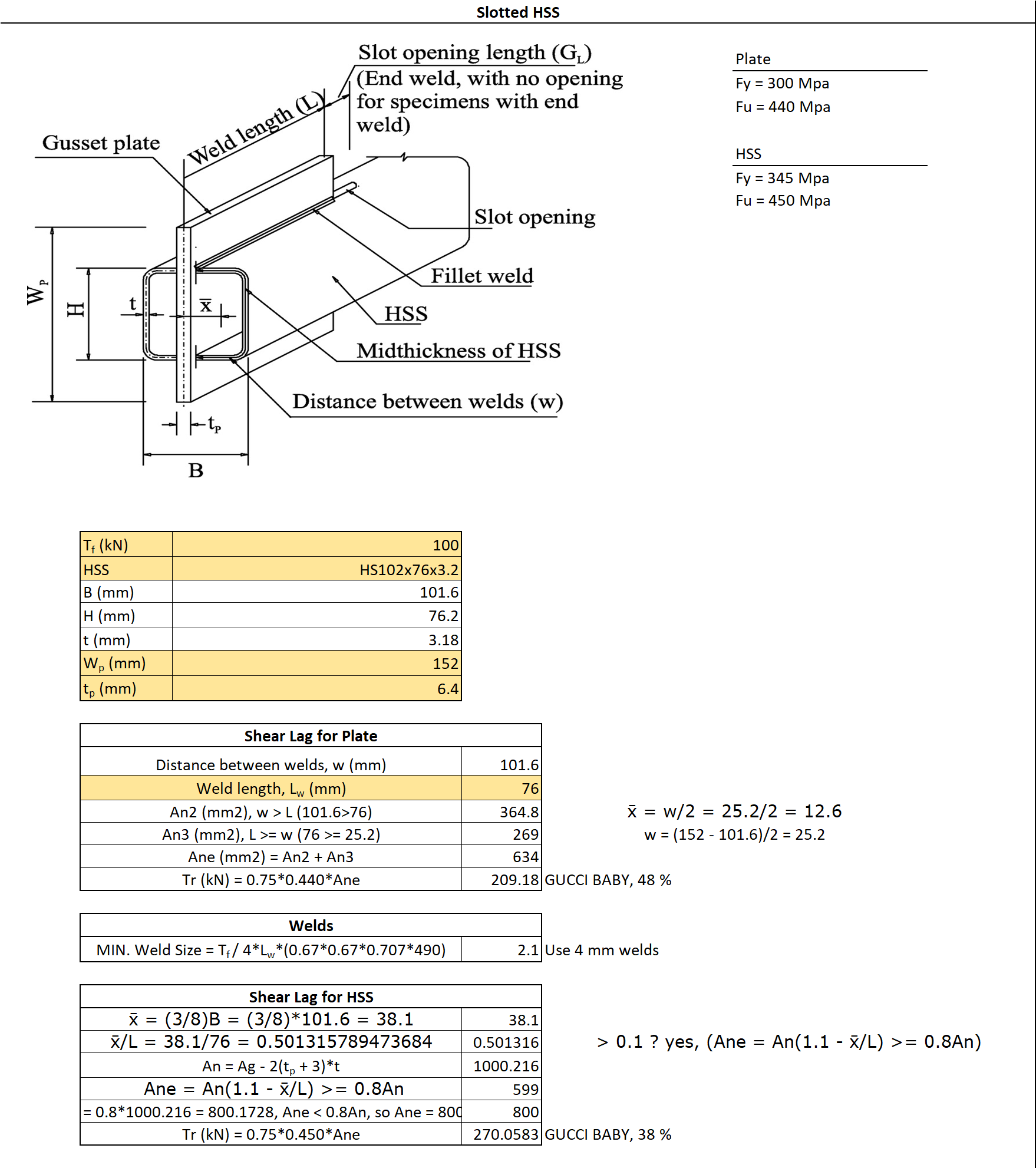

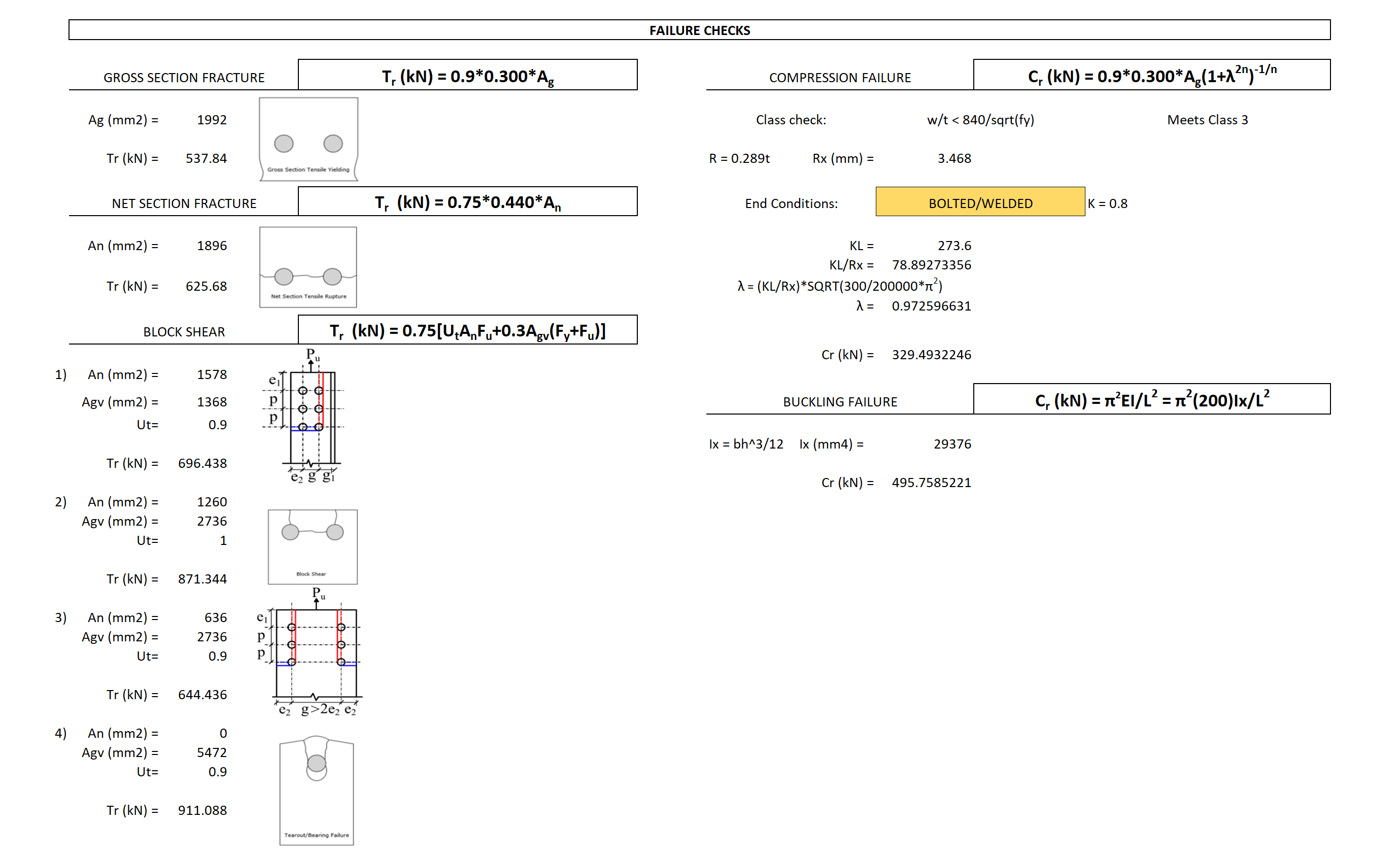

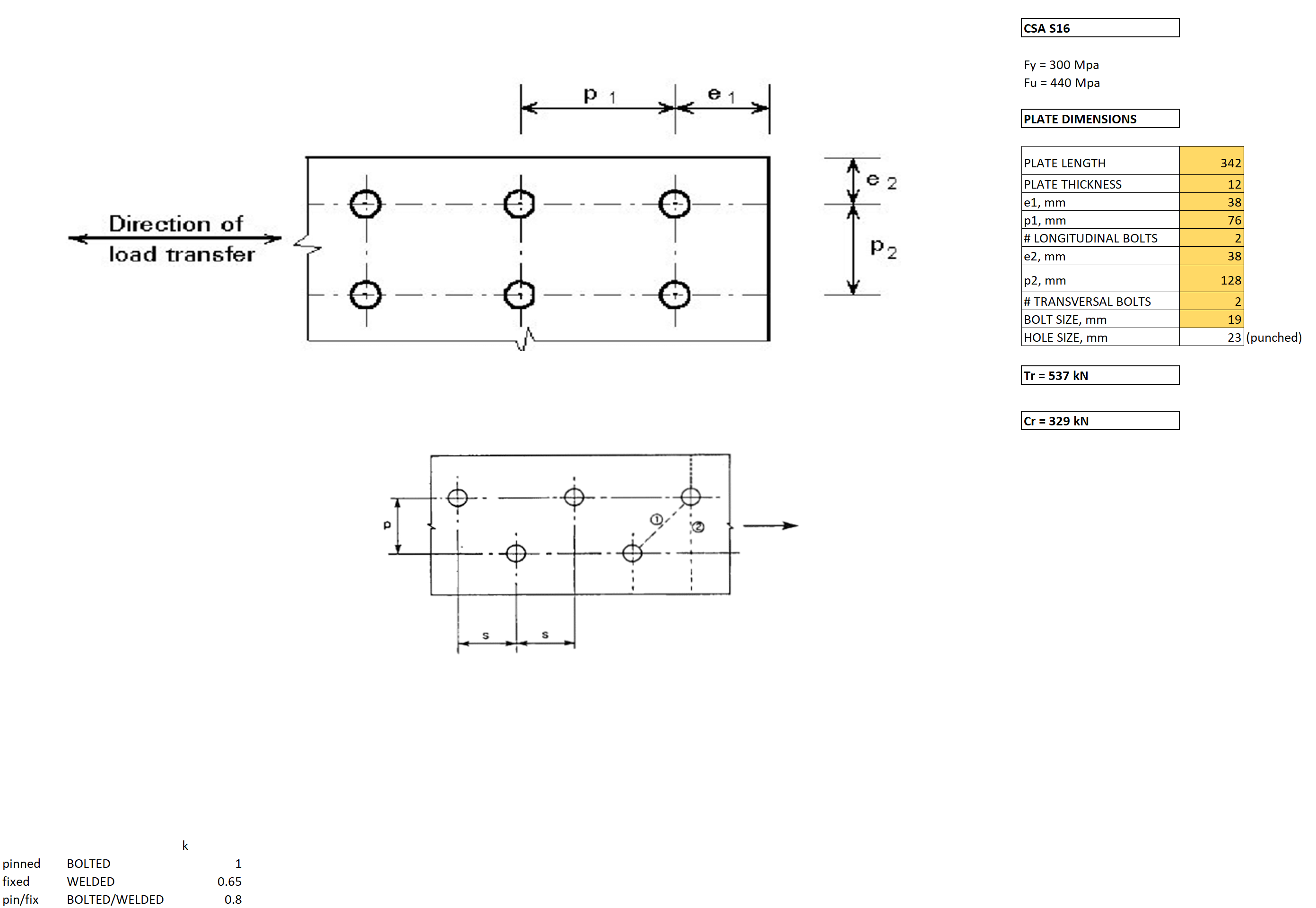

Calculation Preview

john doe (john-doe)
17 Jul 2023
File Size: 331.78 Kb
Downloads: 15
File Version: 1.0
File Author: john doe
File Rating (5/1)


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
johndoyle[admin] 1 year ago
A nice debut calculation! I have awarded a three month XLC Pro subscription by way of thanks.
