Shells Under Internal Pressure and External Loads
Description

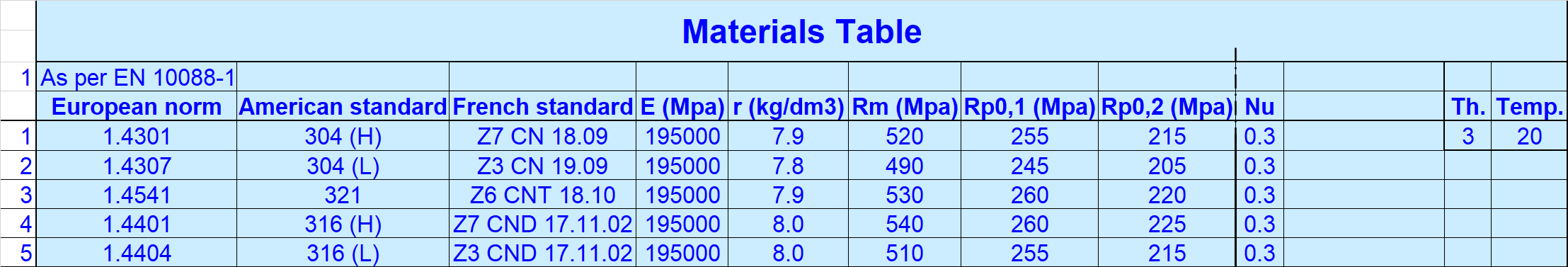

- This Sheets intends to design pressure vessels as per European Union code EN13445-3. The material properties are taken from EN10088 norm.

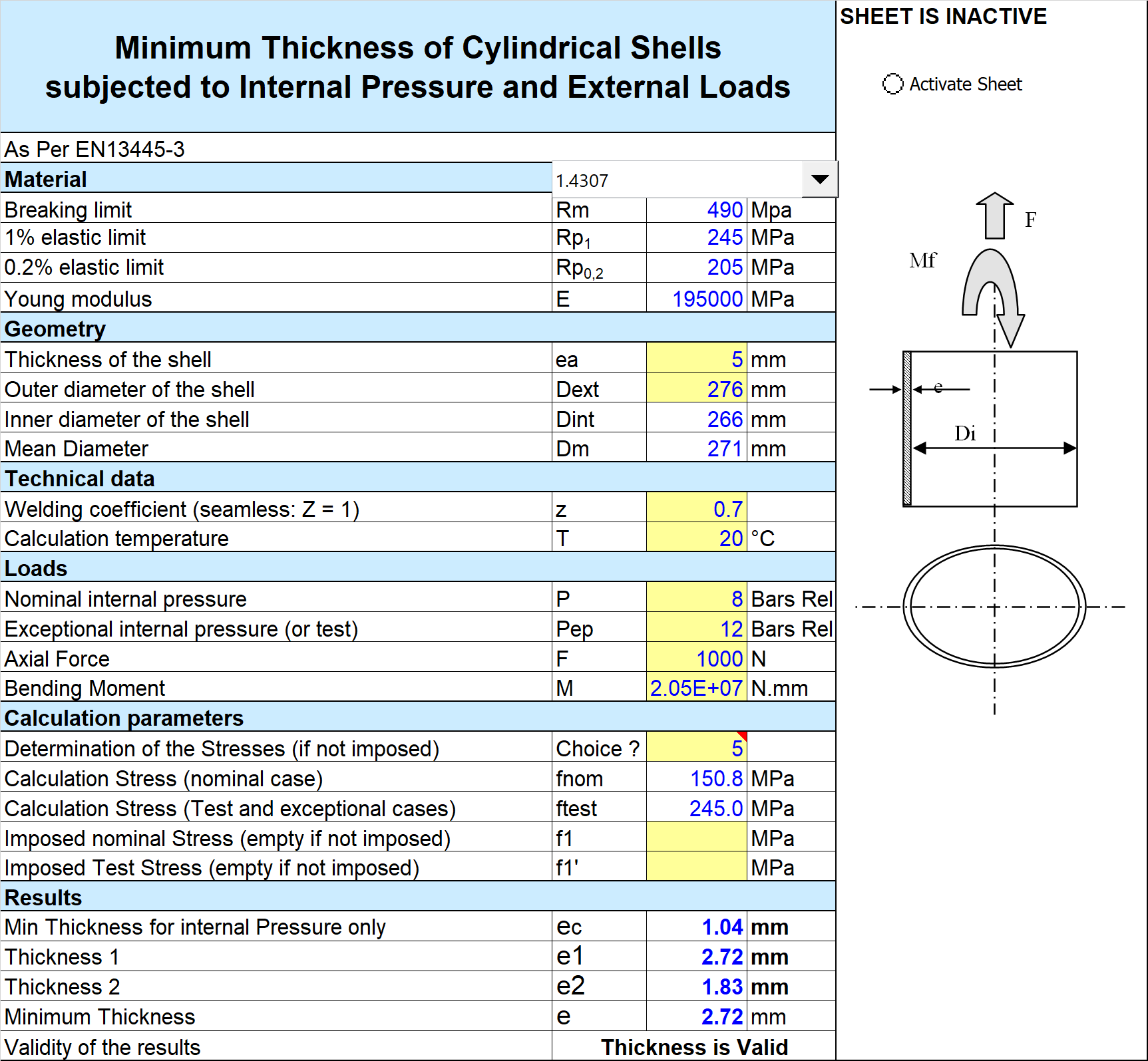

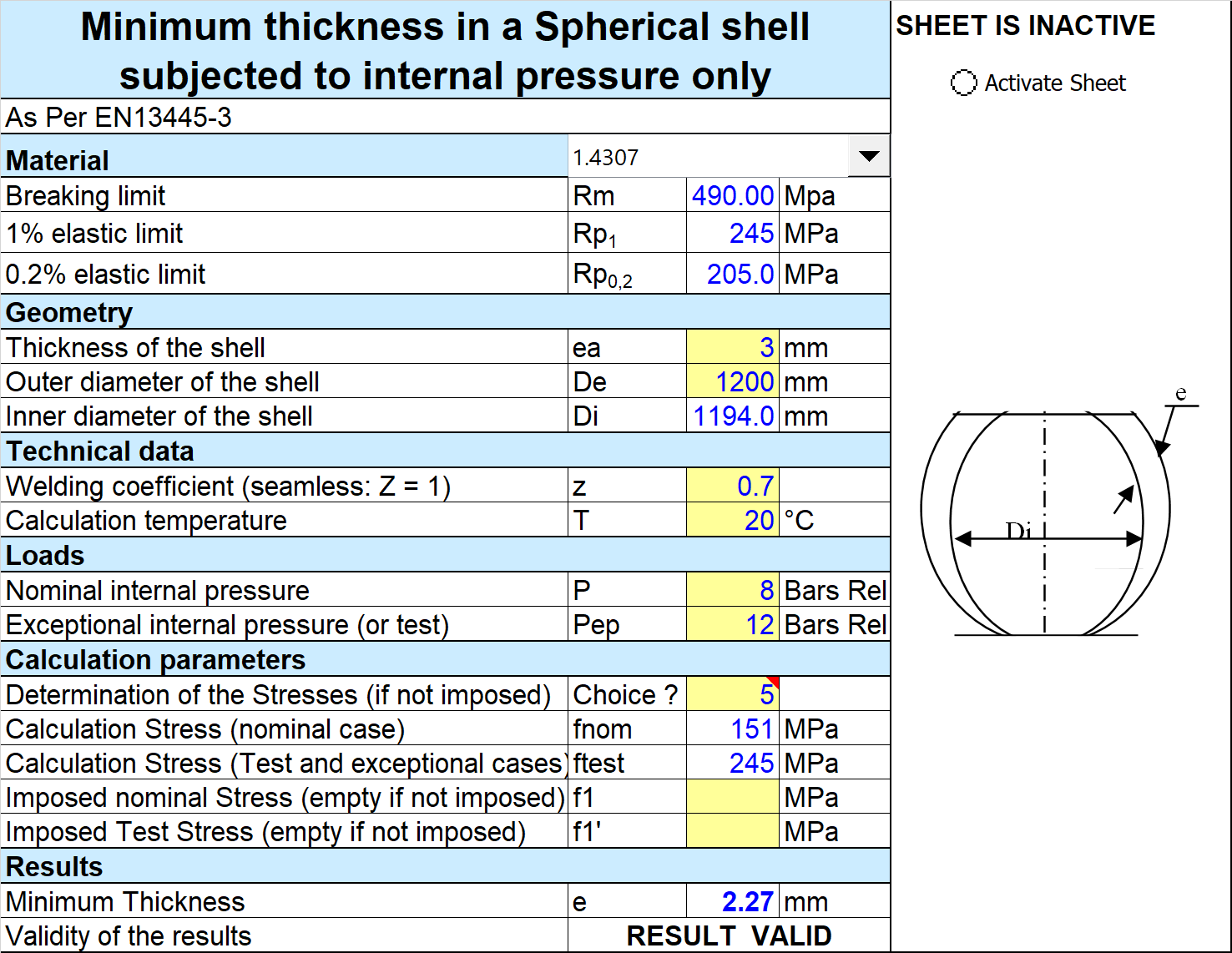

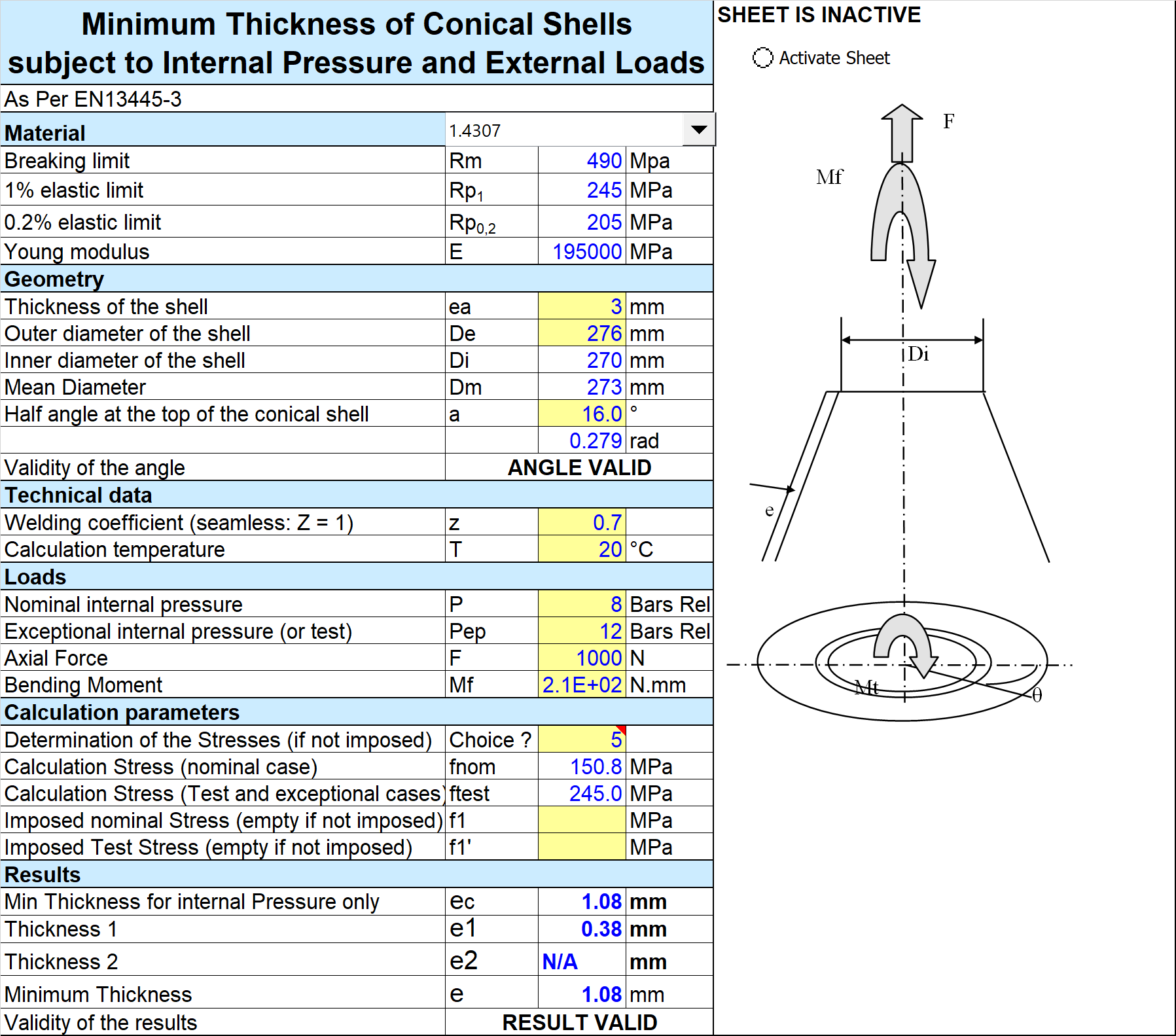

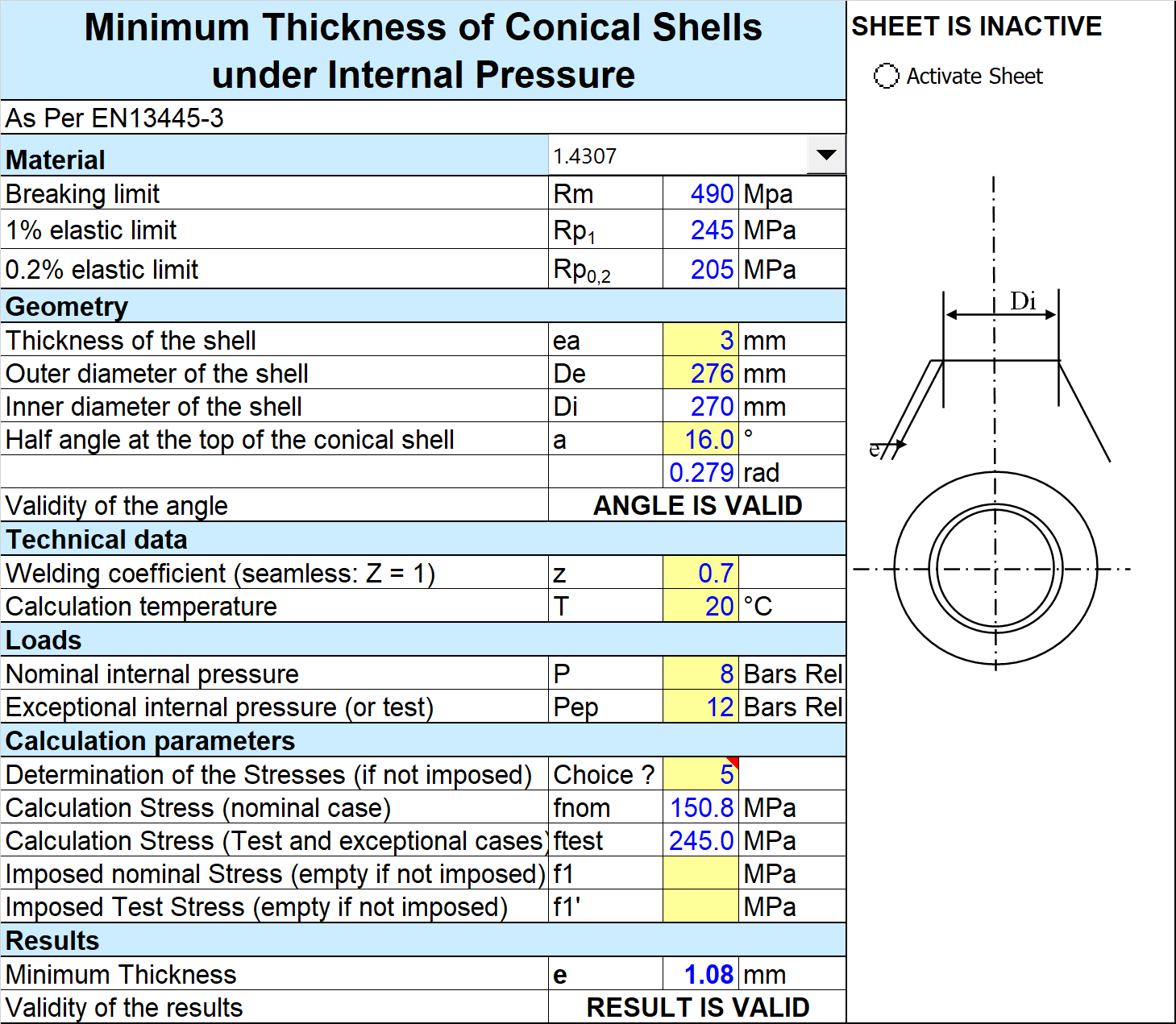

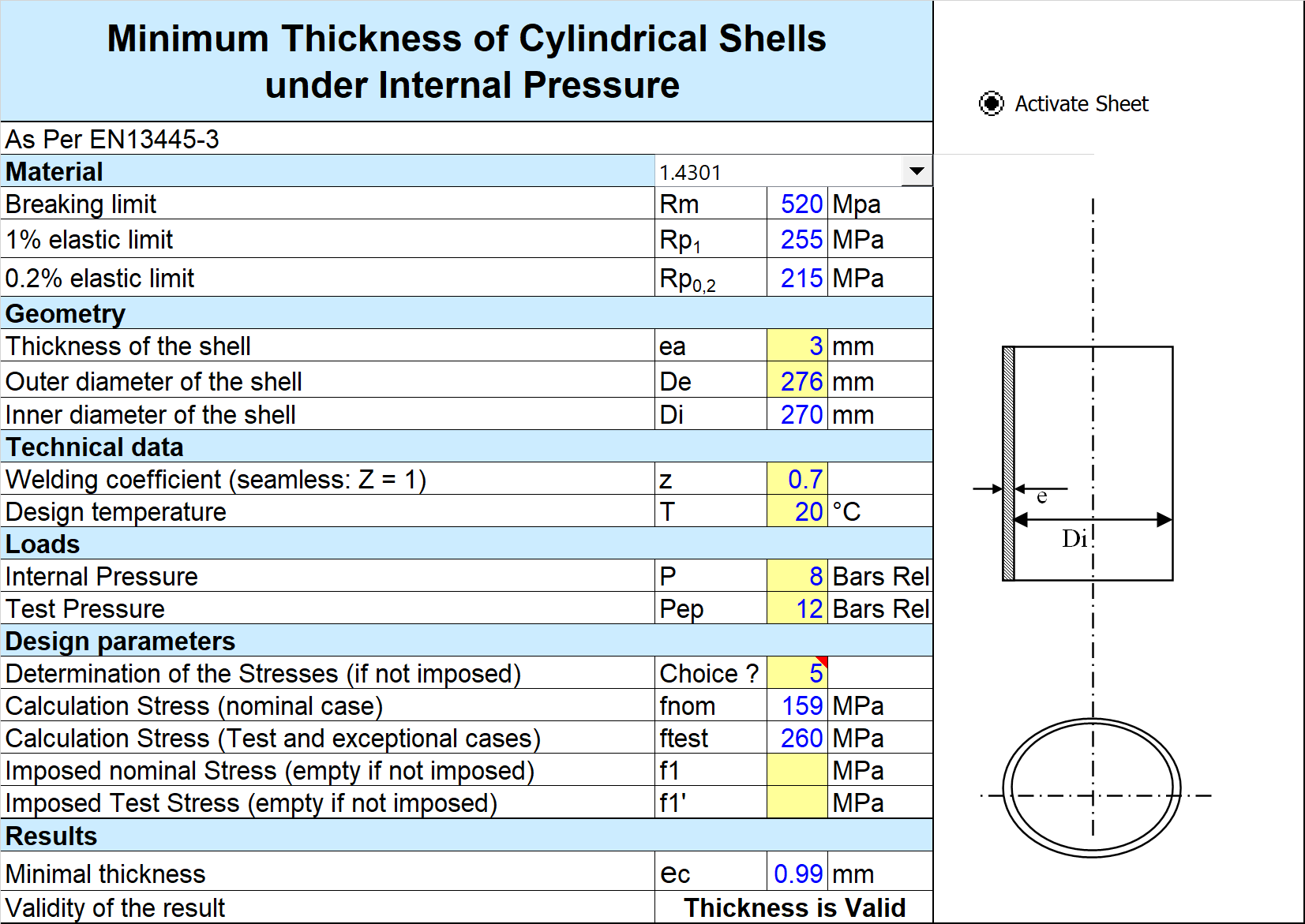

- Cylindrical, Conical and Spherical Shells are available for calculation. Both Internal Pressure and Internal Pressure + External Loads cases are available.
- Don't hesitate to contact me for improvements to the sheet.
Calculation Preview
Submitted By:
Submitted On:
20 Sep 2021
File Size:
108.12 Kb
Downloads:
14
File Version:
1.0
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Thumbnails:
Comments: 1
×
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png){kind=small}
JohnDoyle[Admin]
2 years ago
Another great contribution. Many thanks!
