AISC-LRFD-Baseplate with Large Moment

Rating:
16

Description


This spread sheet is useful to calculate the thickness of Base plate and check the dimensions of base plate with Column is subjected Axial Compression+Large Moment.

The Design is Based n AISC LRFD. (REference AISC-DG 1- Example 4.7  ). Small Error in Design guide is correctd. Additional check for BP thickenss for Tension included. However Pullout check is excluded because , The designer shall not satisfy with only pullout check and confirming all concrete checks are ok. A seperate concrete checks to be carriedout.

Another Goodthing about the spread sheet is clone equation is simplified and without XLC software also .I am looking for your valuable suggestion.

Calculation Reference
Structural Steel Design
Base Plate Design
Steel Design Guide

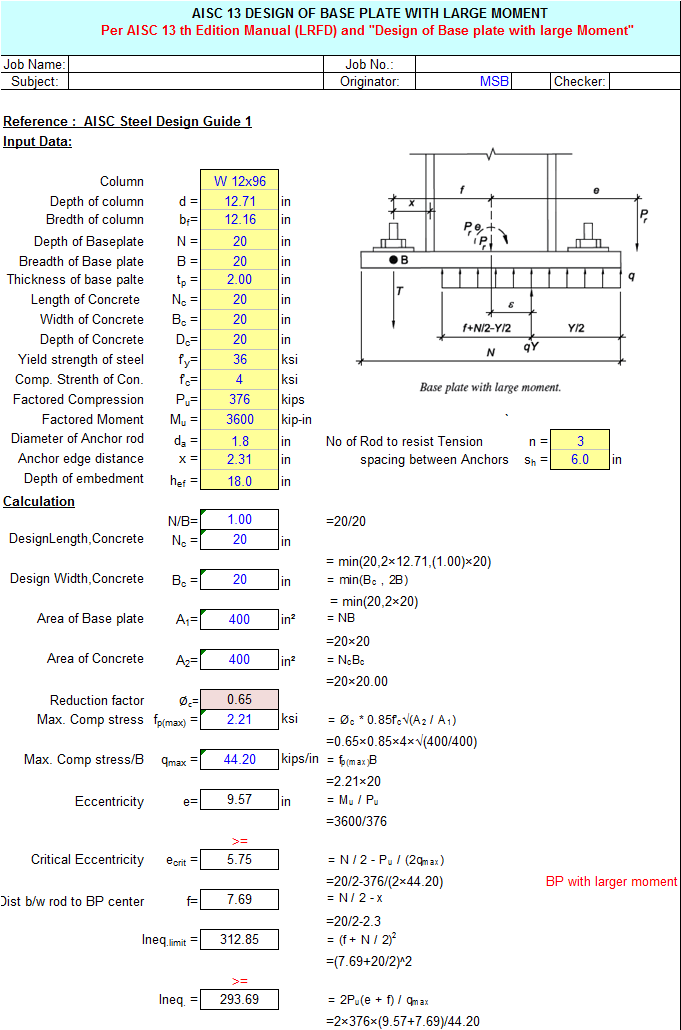

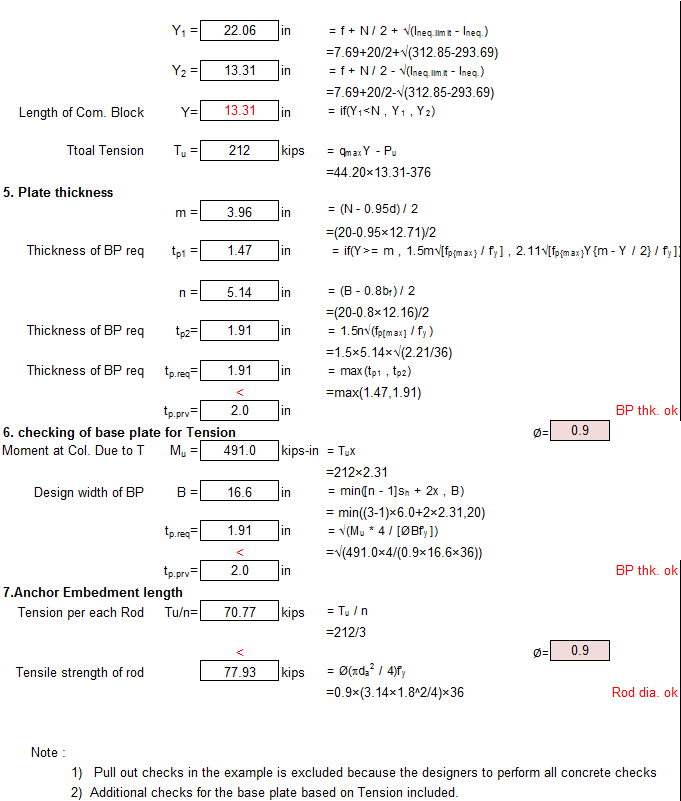

Calculation Preview

Submitted On:
15 Dec 2014
File Size:
87.23 Kb
Downloads:
394
File Version:
1.0
File Author:
SIDDHANATHABOOBATHI
Rating:
16


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
