AISC-LRFD HSS BRACING PUNCH PLATE CONNECTION

Rating:
14

Description

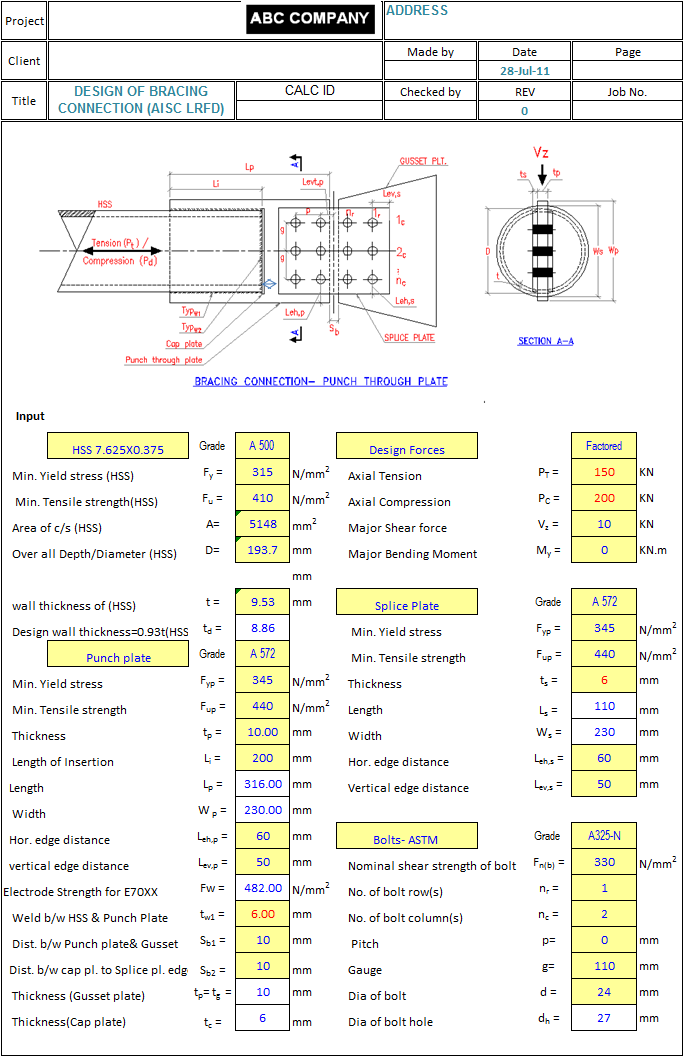

The above spread sheet shall be used to design PUNCH THROUGH PLATE CONNECTION for HSS member based on AISC- LRFD code ( Steel design guide 24).

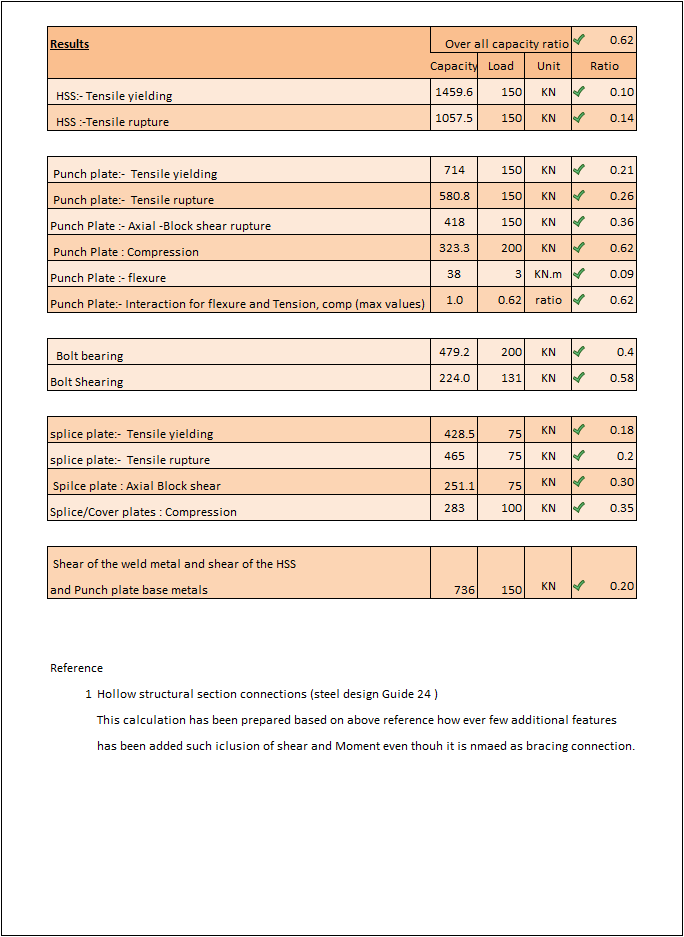

Design Checks:

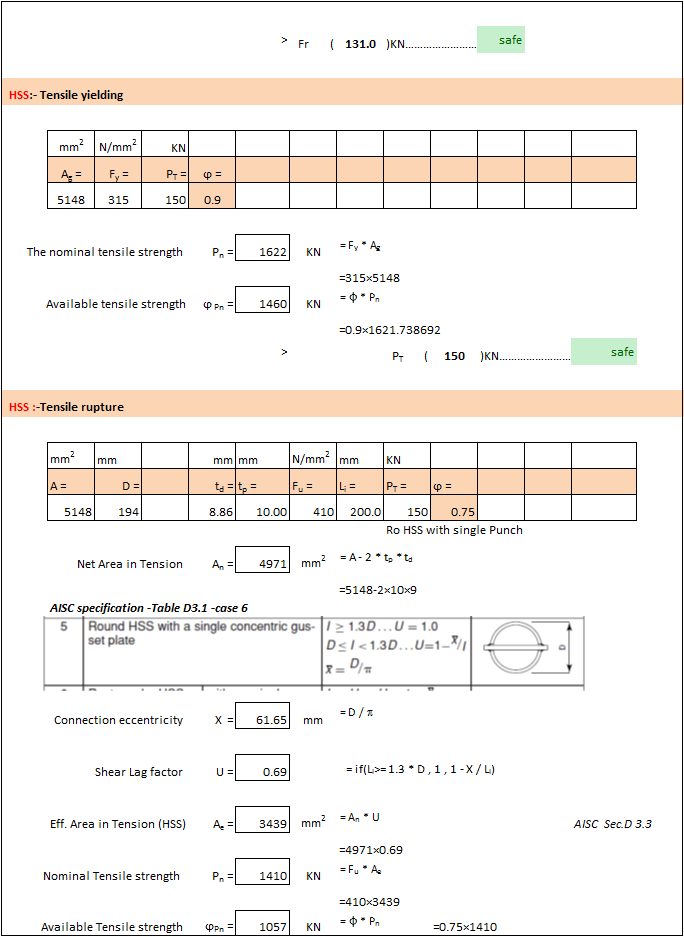

HSS:- Tensile yielding
HSS :-Tensile rupture
Punch plate:-  Tensile yielding
Punch plate:-  Tensile rupture
Punch Plate :- Axial -Block shear rupture
Punch Plate : Compression
Punch Plate :- flexure
Punch Plate:- Interaction for flexure and Tension, comp (max values)

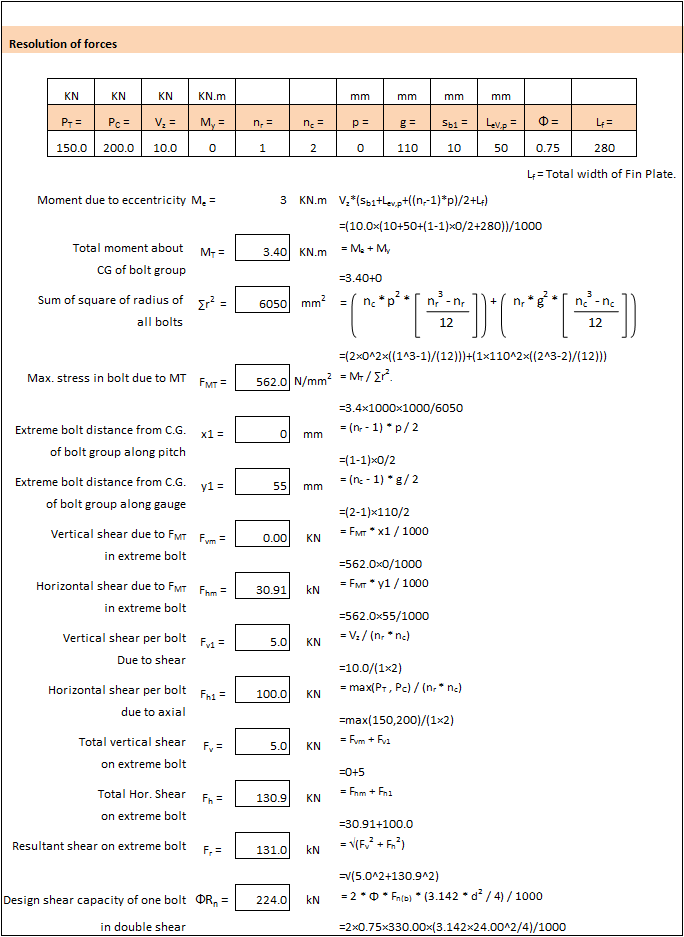

Bolt bearing
Bolt Shearing
splice plate:-  Tensile yielding
splice plate:-  Tensile rupture
Spilce plate : Axial Block shear
Splice/Cover plates : Compression
Shear of the weld metal and shear of the HSS and Punch plate base metals


Calculation Reference
AISC - LRFD code
Steel Designers Manual
Structural Steel

Calculation Preview

Uploaded
28 Jul 2011
Last Modified
28 Jul 2011
File Size:
457.61 Kb
Downloads:
277
File Version:
1.0
File Author:
SIDDHANATHABOOBATHI
Rating:
14


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
