Analysis of Sheet Pile Wall - Cantilevered and Anchored
Description

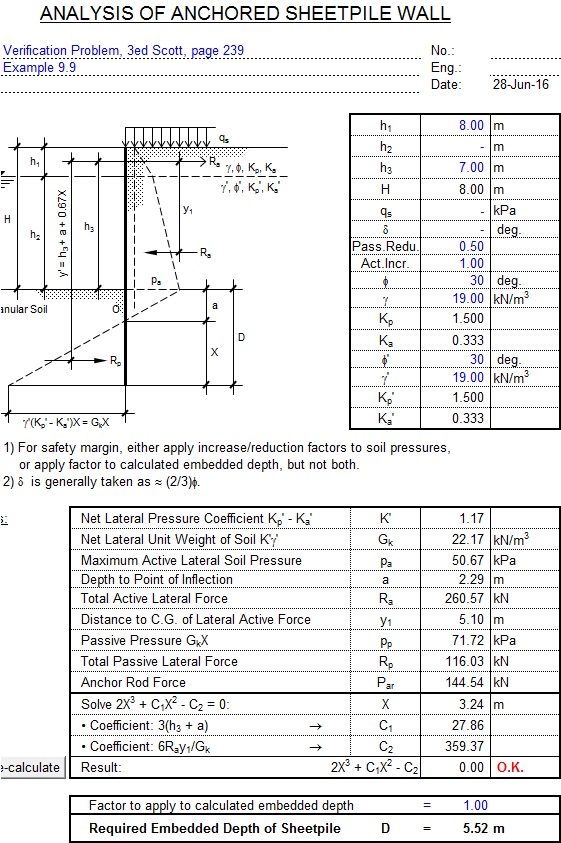

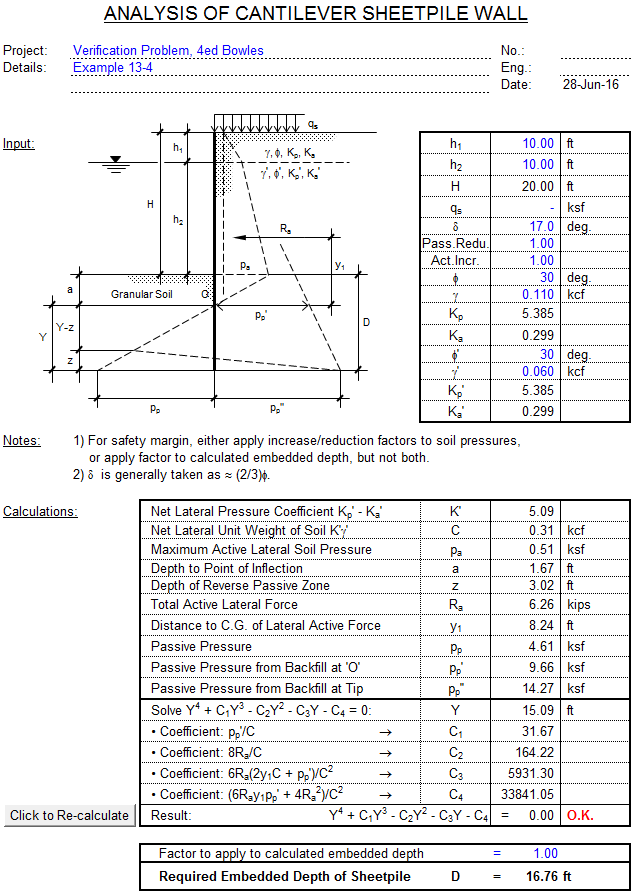

Spreadsheet calculated total active/passive demands on a sheet pile wall (considers anchored and cantilevered walls). Ultimate output = required sheet pile embedment depth.
Net Lateral Pressure Coefficient
Net Lateral Unit Weight of Soil
Maximum Active Lateral Soil Pressure
Depth to Point of Inflection
Depth of Reverse Passive Zone
Total Active Lateral Force
Distance to C.G. of Lateral Active Force
Passive Pressure
Passive Pressure from Backfill at 'O'
Passive Pressure from Backfill at Tip
Net Lateral Unit Weight of Soil
Maximum Active Lateral Soil Pressure
Depth to Point of Inflection
Depth of Reverse Passive Zone
Total Active Lateral Force
Distance to C.G. of Lateral Active Force
Passive Pressure
Passive Pressure from Backfill at 'O'
Passive Pressure from Backfill at Tip
