BEARING STRENGTH OF A PIN IN A DRILLED HOLE

Rating:
4

Description


The bearing strength of a pin in a drilled hole is a critical aspect of many mechanical and structural designs. It's typically governed by various codes of practice depending on the specific application and industry. Here are some general steps and principles that are often used in such calculations:

  1. Determine the Applied Load: The first step is to determine the load that will be applied to the pin. This could be a shear load, a tensile load, or a combination of both.

  2. Material Properties: The strength of the pin and the material in which the hole is drilled are crucial. This includes the yield strength and ultimate tensile strength of the materials.

  3. Hole and Pin Diameter: The diameter of the drilled hole and the diameter of the pin are important factors. The hole should be slightly larger than the pin to allow for easy insertion but not so large that it allows excessive movement or reduces the bearing area.

  4. Bearing Stress Calculation: The bearing stress is calculated as the applied load divided by the bearing area. The bearing area is typically calculated as the diameter of the pin times the thickness of the material in which the hole is drilled.

  5. Compare to Allowable Stress: The calculated bearing stress should be compared to the allowable bearing stress for the material. The allowable bearing stress is typically a fraction of the material's yield strength. If the calculated bearing stress exceeds the allowable stress, the design is not safe and must be revised.

  6. Factor of Safety: A factor of safety is typically applied to account for uncertainties in the load and material properties, as well as potential deviations in manufacturing.

Specific codes of practice like the American Institute of Steel Construction (AISC) for structural steel design, the American Concrete Institute (ACI) for concrete design, or the American Society of Mechanical Engineers (ASME) for mechanical design, provide detailed guidelines for these calculations.

Calculation Reference
Welding
Weld Strength LRFD
AISC

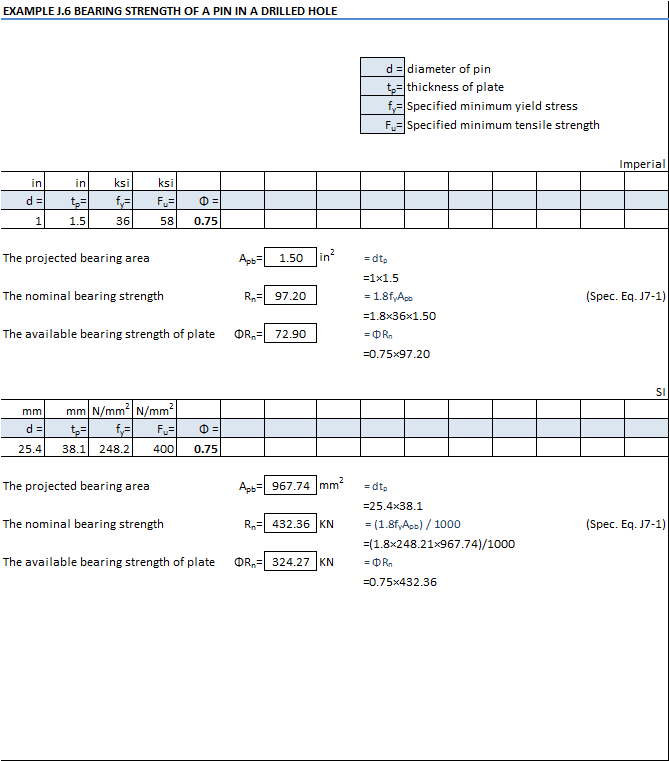

Calculation Preview

Uploaded
14 Oct 2015
Last Modified
20 Jun 2023
File Size:
30.19 Kb
Downloads:
89
File Version:
1.0
File Author:
SIDDHANATHABOOBATHI
Rating:
4


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
