CORBEL DESIGN
Description
Corbel is a short structural element that cantilevers out from column/wall to support load.Generally, the corbel is casted monolithically with column/wall.
There are several typical modes of failure in the corbel. The most common of which are yielding of the tension tie, failure of the end anchorages of the tension tie, either under the load point or in the column, failure of the compression strut by crushing or shearing, and local failures under the bearing plate.
ACI Design Method
Calculation Reference
Corel Design
Structural Design
Structural Design and Analysis

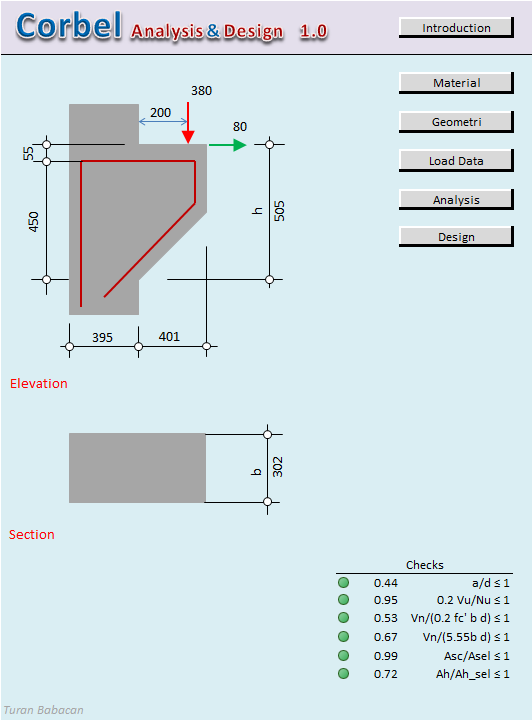

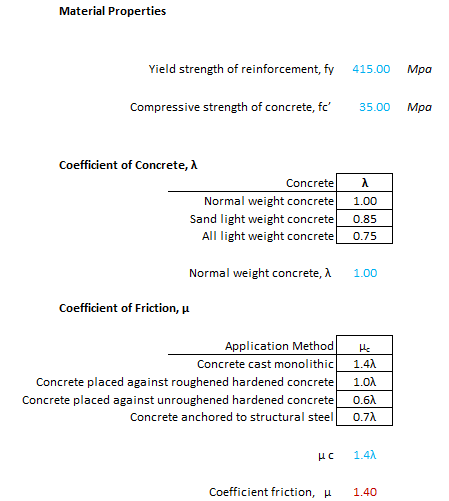

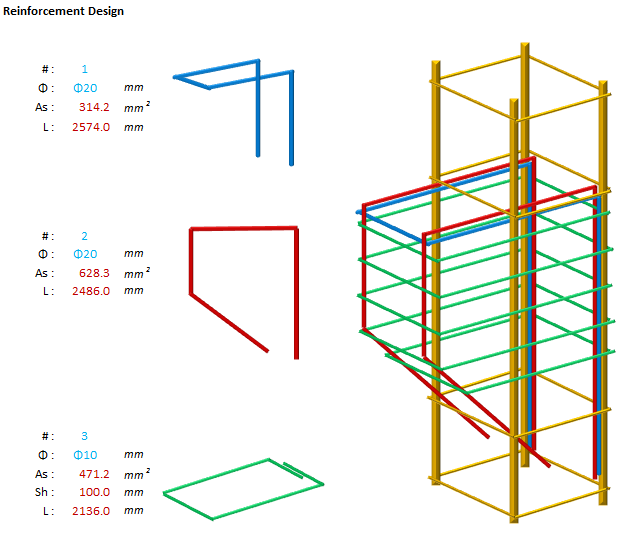

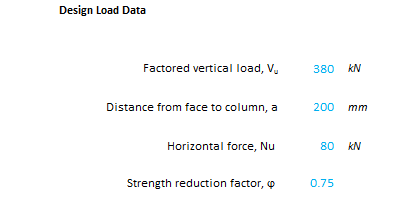

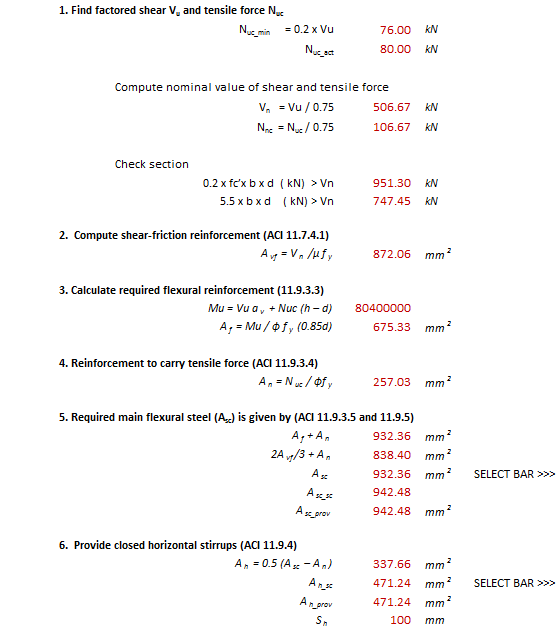

Calculation Preview
Uploaded
21 May 2014
Submitted By:
Last Modified
21 May 2014
File Size:
118.85 Kb
Downloads:
229
File Version:
1.0
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 5
×
ss_99_ss_9@yahoo.com
4 years ago
I hope to get the Corbel analysis and design 1.0
ss_99_ss_9@yahoo.com
4 years ago
good prog

BABACAN
9 years ago
:)
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png)
JohnDoyle[Admin]
9 years ago

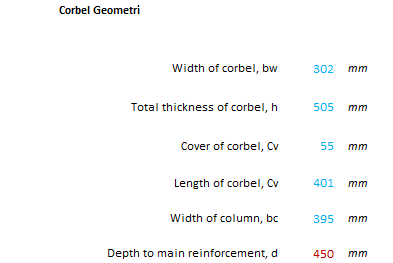

One tiny point I notice that geometry was spelt incorrectly as geometri. A pedantic comment I realise but I thought you would like the feedback :)
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png)
JohnDoyle[Admin]
9 years ago
More amazing work Turan! You make a structural engineers life much easier. Thank you once again for publishing your marvellous work with us.
