Design of Spread Footing

Rating:
13

Description


PIPE SUPPORT FOUNDATION
DESIGN OF SPREAD FOOTING TO ACI 318-07

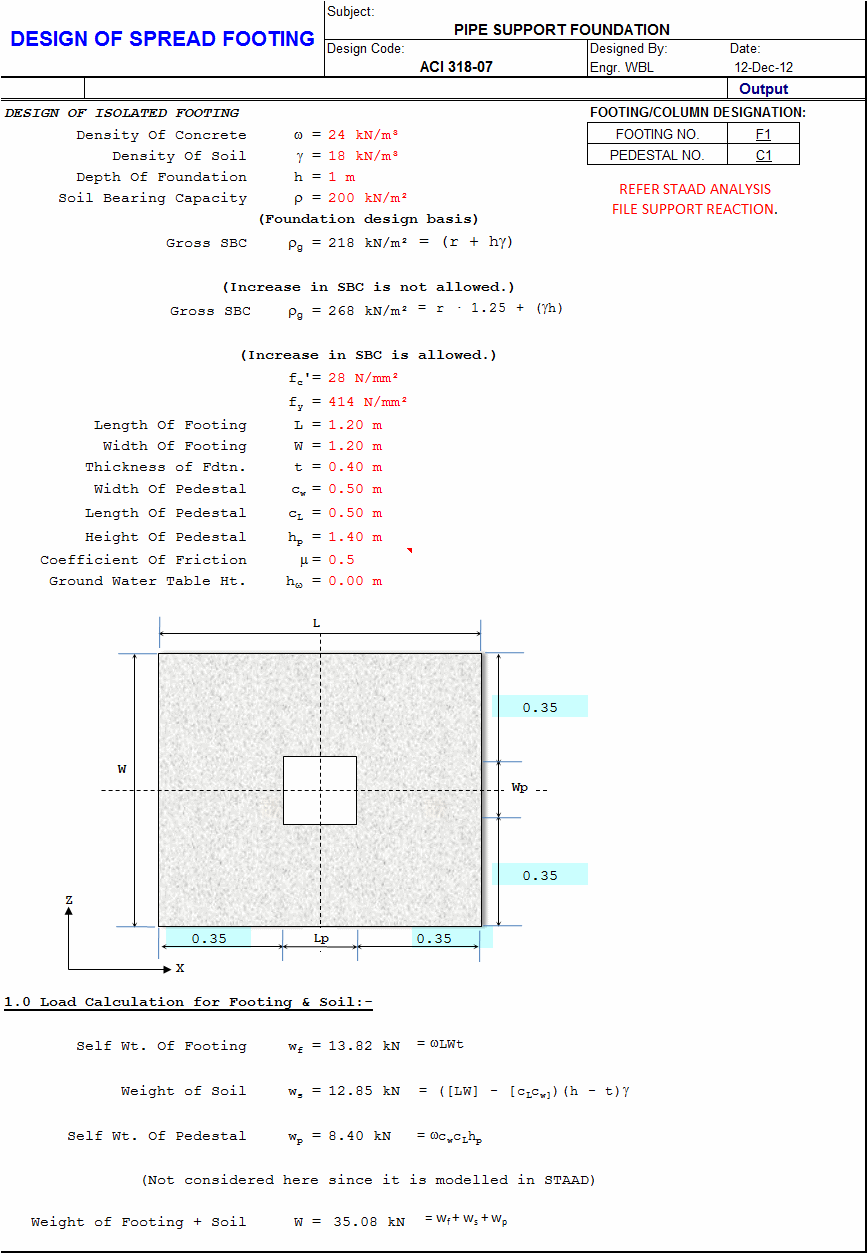

DESIGN OF ISOLATED FOOTING
Density Of Concrete
Density Of Soil
Depth Of Foundation
Soil Bearing Capacity
Length Of Footing
Width Of Footing
Thickness of Fdtn.
Width Of Pedestal
Length Of Pedestal
Height Of Pedestal
Coefficient Of Friction
Ground Water Table Ht.
1.0 Load Calculation for Footing & Soil:-
Self Wt. Of Footing
Weight of Soil
Self Wt. Of Pedestal
Weight of Footing + Soil

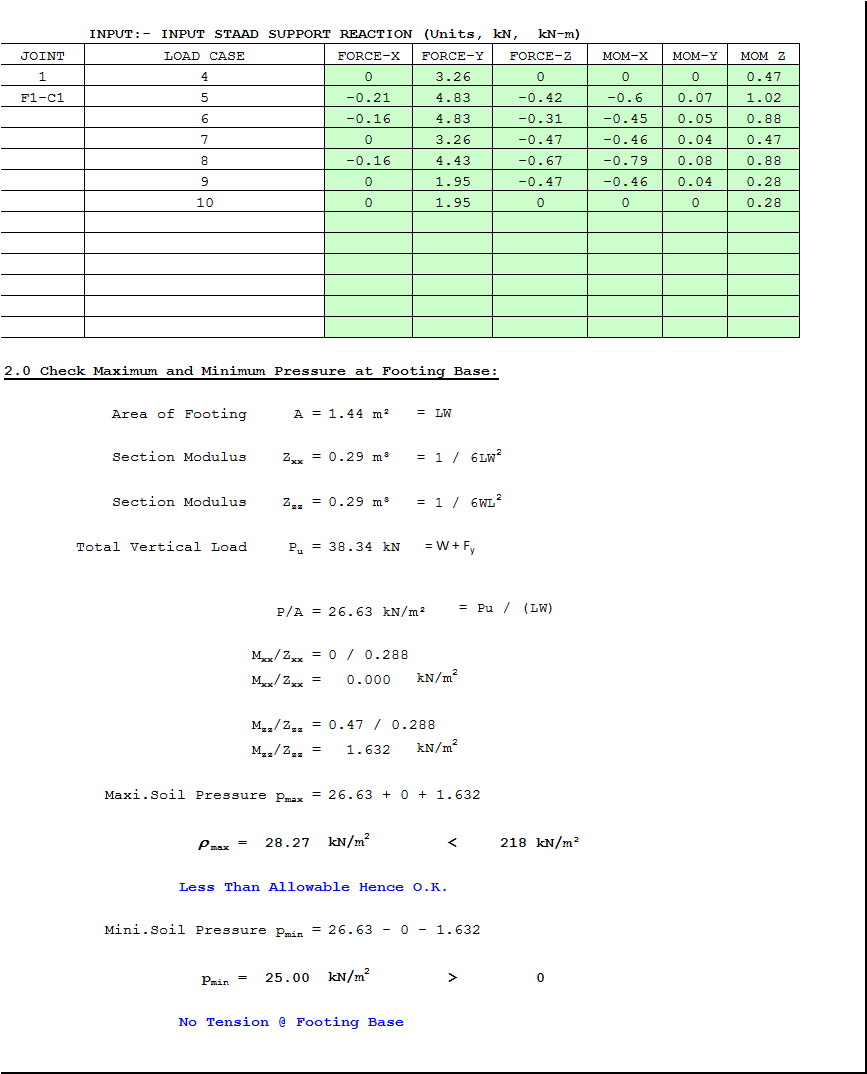

2.0 Check Maximum and Minimum Pressure at Footing Base:
Area of Footing
Section Modulus
Section Modulus
Total Vertical Load

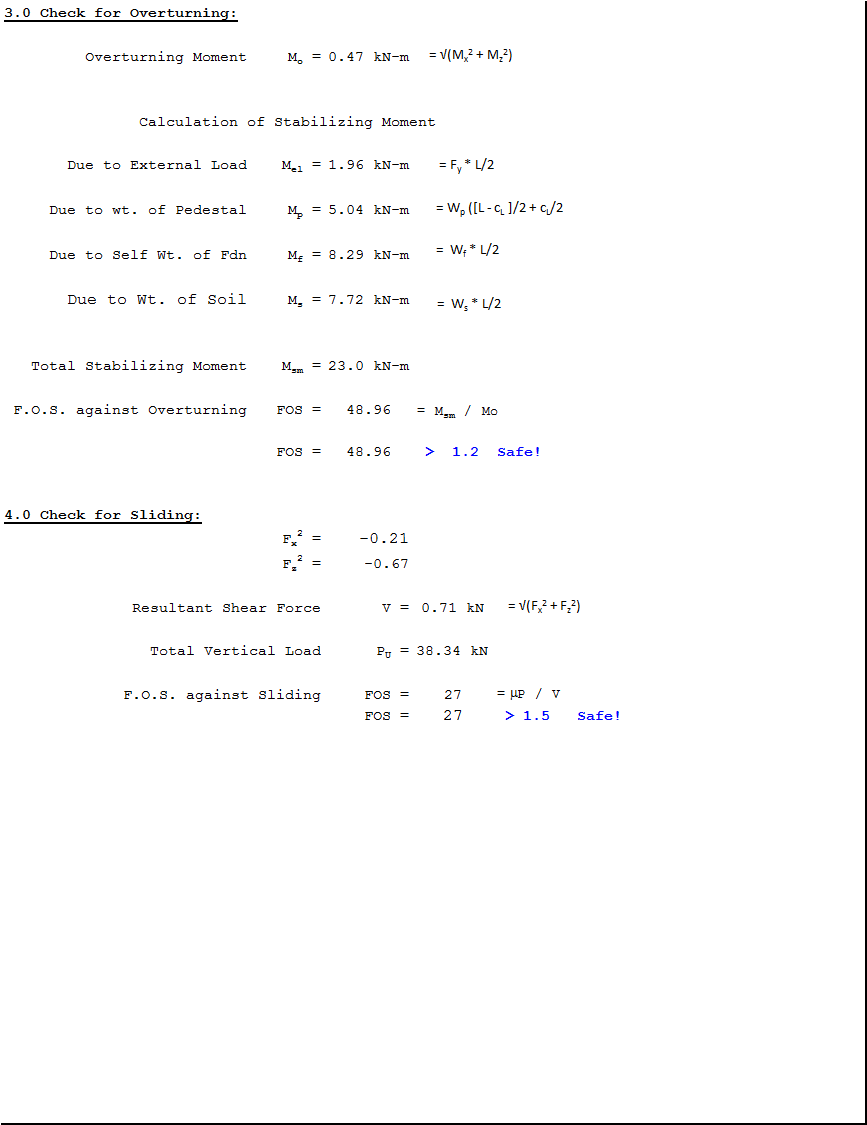

3.0 Check for Overturning:
Overturning Moment
Due to External Load
Due to wt. of Pedestal
Due to Self Wt. of Fdn
Due to Wt. of Soil
Total Stabilizing Moment
F.O.S. against Overturning
4.0 Check for Sliding:
Resultant Shear Force
Total Vertical Load
F.O.S. against Sliding

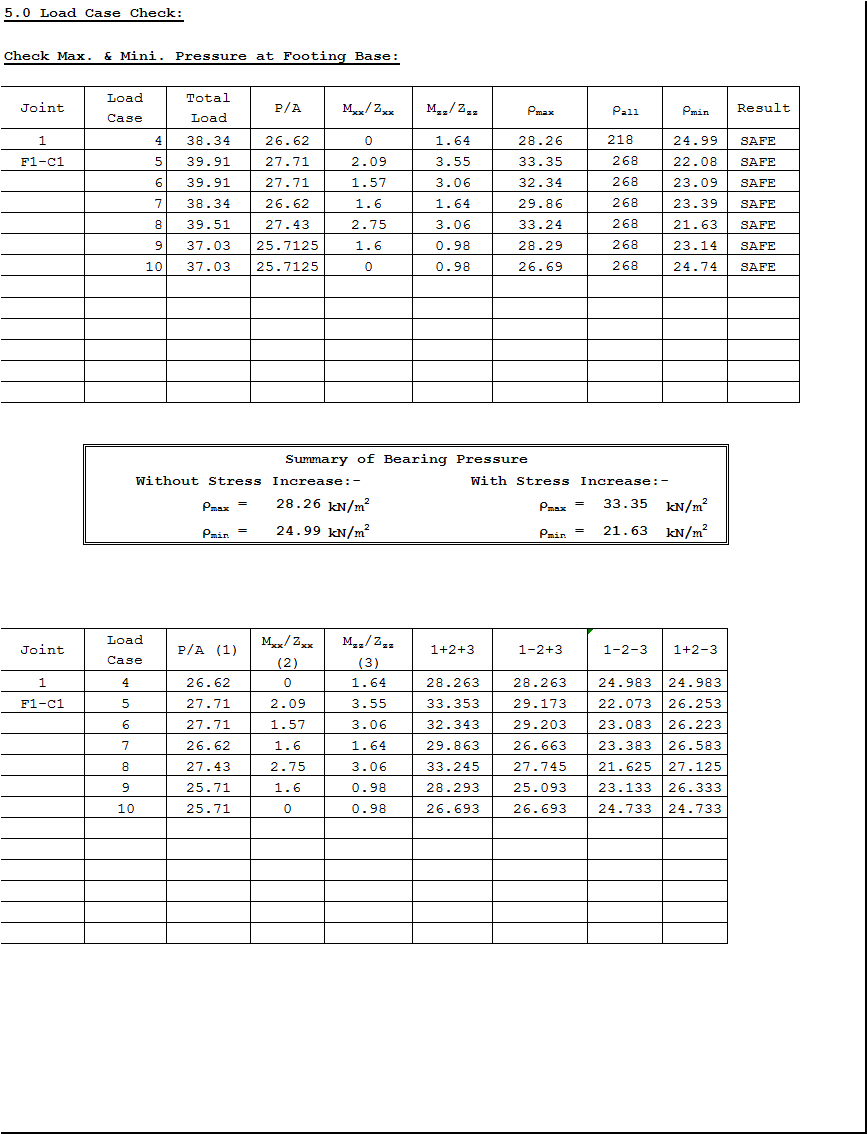

5.0 Load Case Check:
Check Max. & Mini. Pressure at Footing Base:

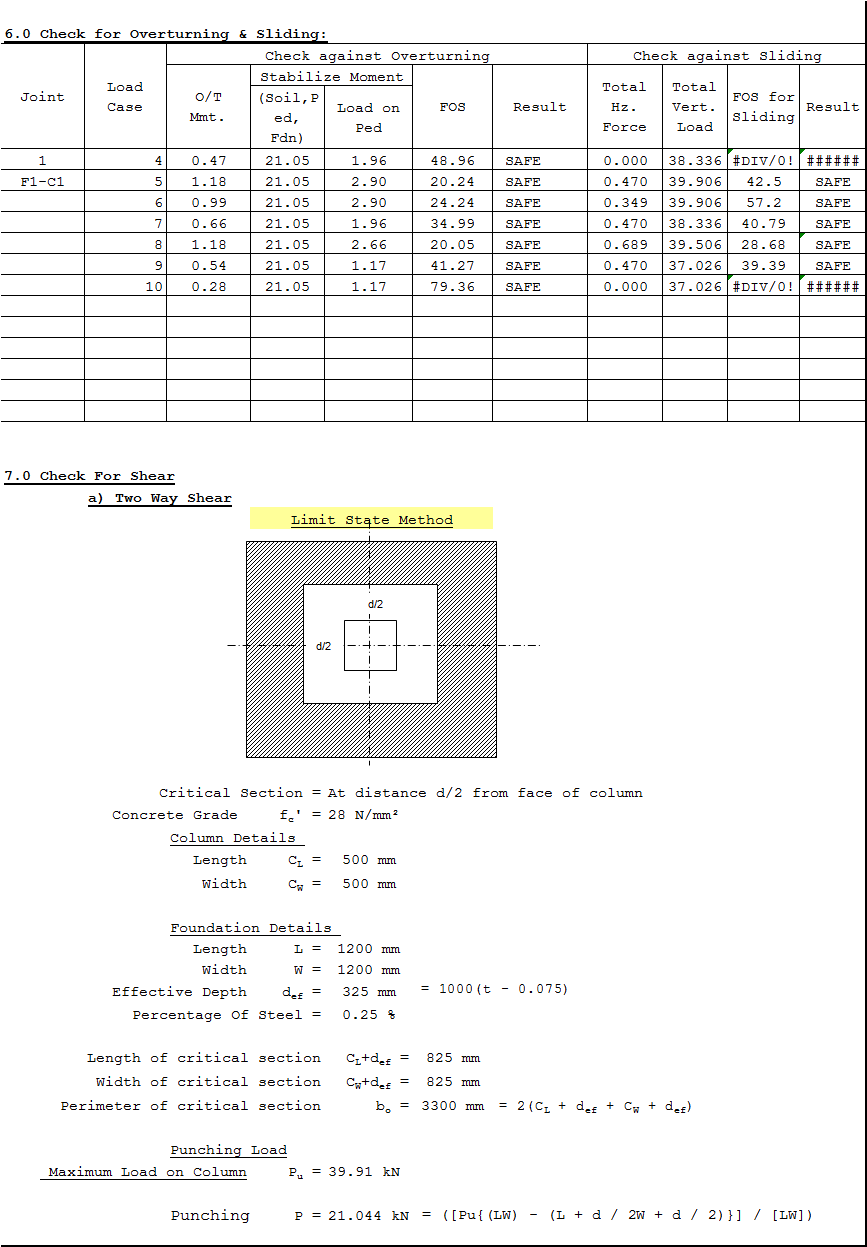

6.0 Check for Overturning & Sliding:
7.0 Check For Shear

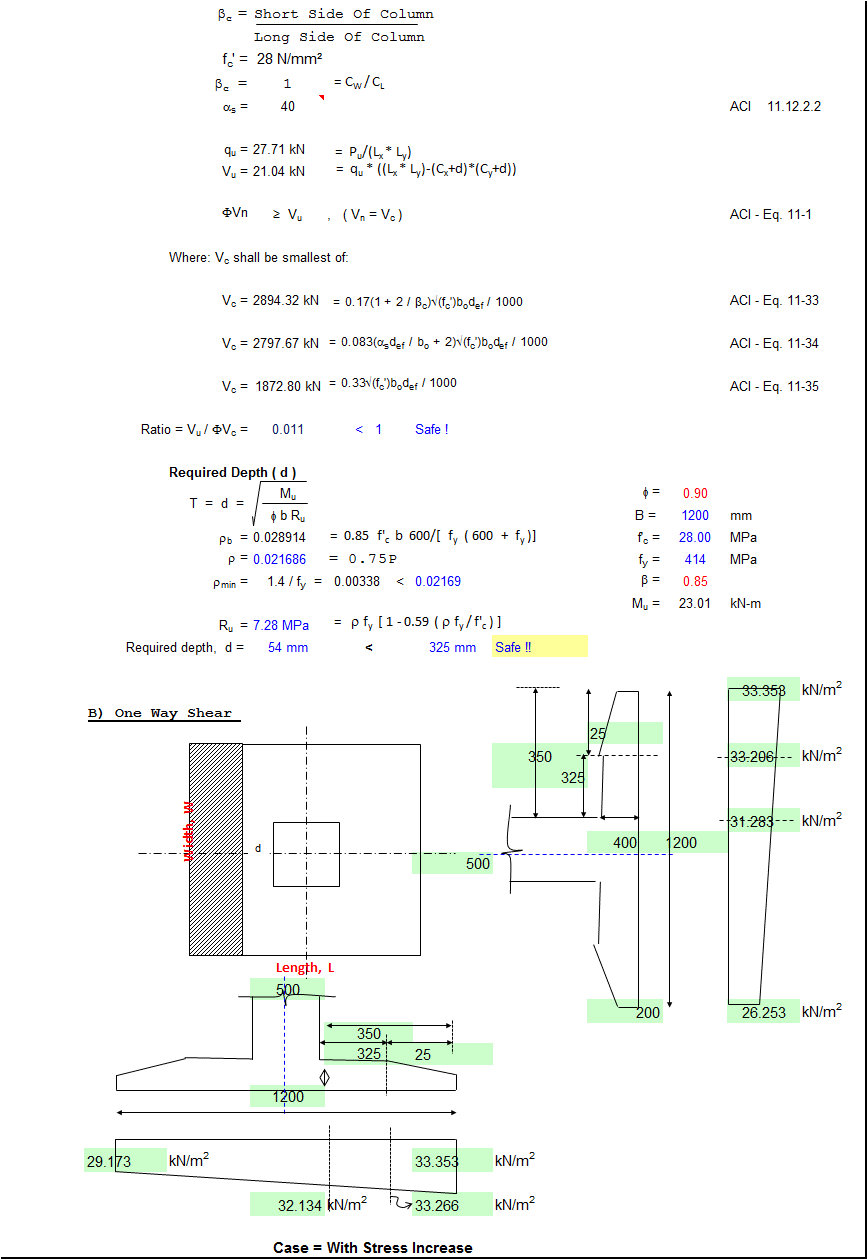

a) Two Way Shear
b) One Way Shear

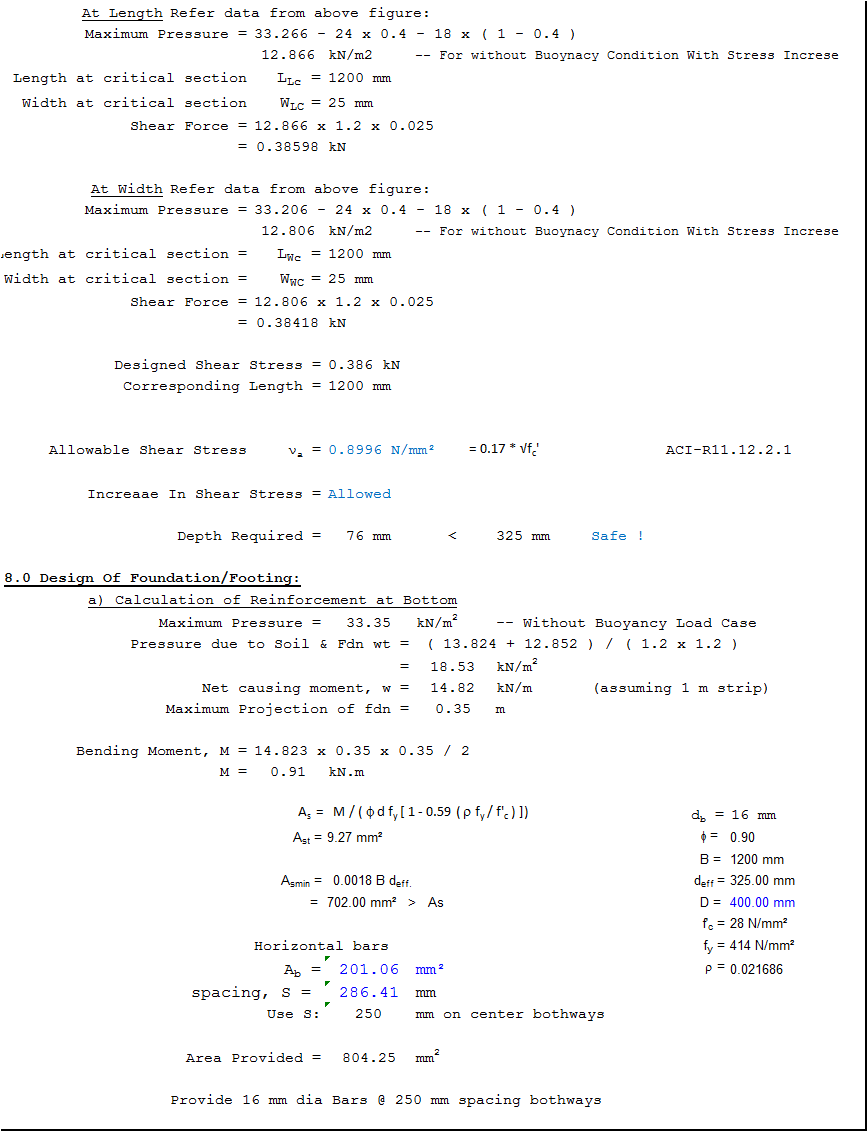

8.0 Design Of Foundation/Footing:
a) Calculation of Reinforcement at Bottom

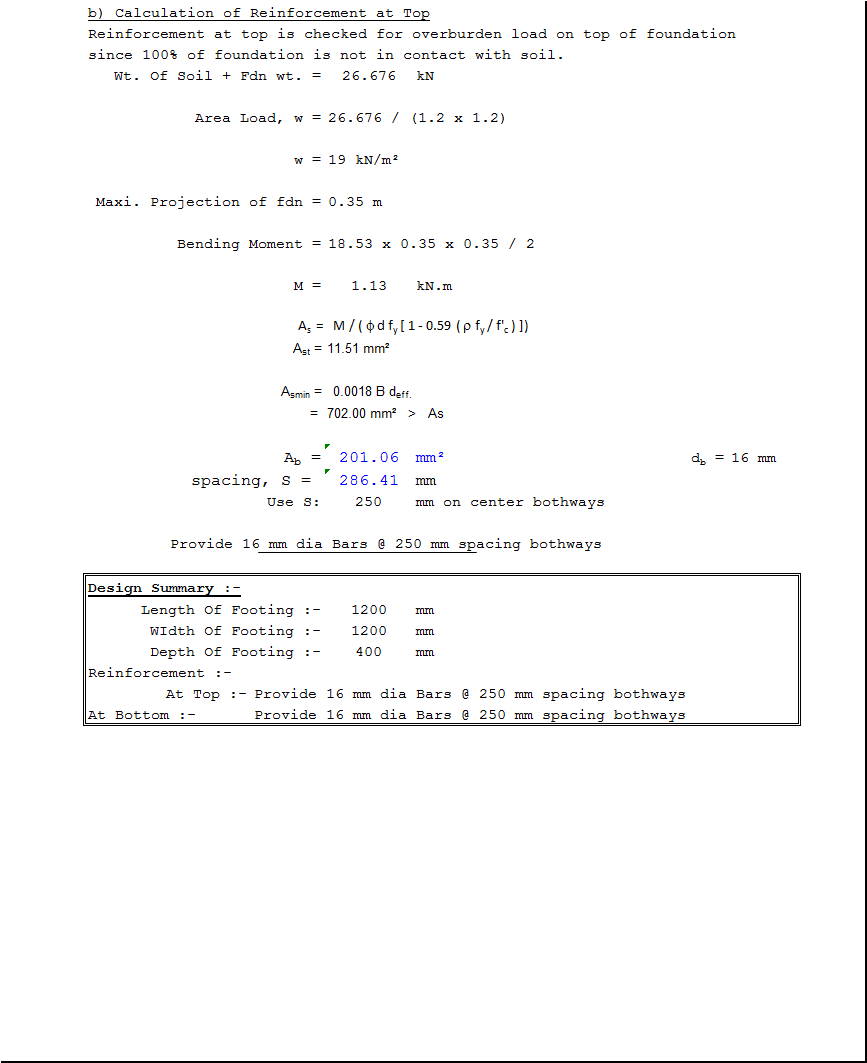

b) Calculation of Reinforcement at Top

This presents the design of isolated spread footing using the results from Staad Support Reactions.

Calculation Reference
Reinforced Concrete Footings
ACI 318-07
Design of Spread Footing

Calculation Preview

Uploaded
12 Dec 2012
Last Modified
12 Dec 2012
File Size:
308.50 Kb
Downloads:
594
File Version:
1.0
File Author:
Wilfred B. Lotino
Rating:
13


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
