Jacking bolt calculation
Description

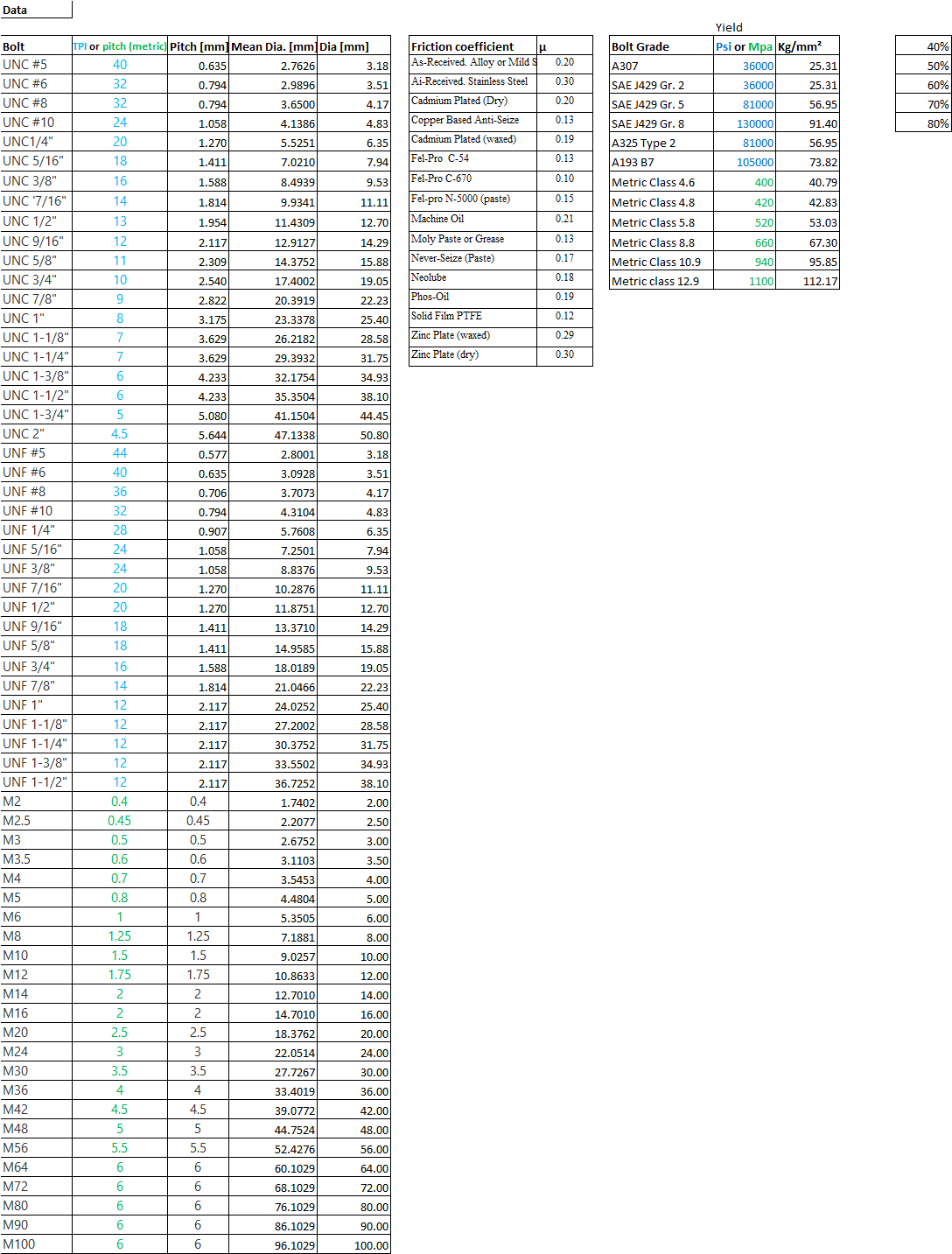

The program checks jacking bolt size and grade for a given load.

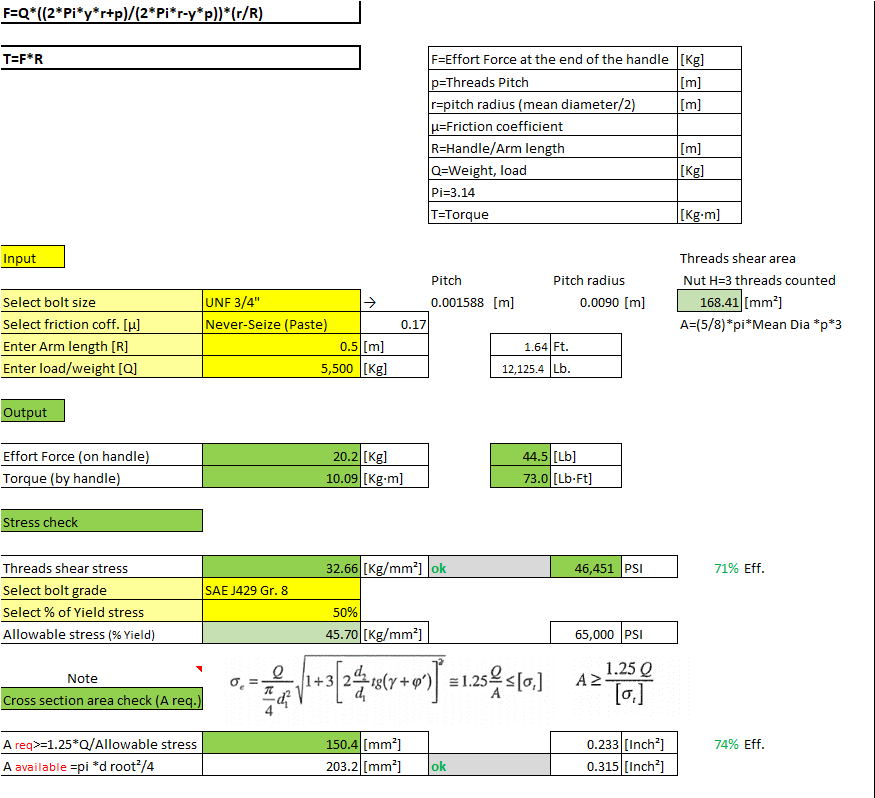

Stress checked on 3 threads of the nut (most loaded) and combined stess.
Calculation Preview
Uploaded
21 Oct 2020
Submitted By:
Last Modified
27 Oct 2020
File Size:
132.67 Kb
Downloads:
21
File Version:
1.0
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
×
![avatar JohnDoyle[Admin]](/media/com_osmembership/avatars/62_56e81868b9b33.png){kind=small}
JohnDoyle[Admin]
3 years ago
A very concise explanation of everthing an engineer needs to know about bolts. Thanks for your contribution I have awarded a 3 month extension to your XLC Pro subscription by way of thanks. [Admin]
