Mast Design



The spread sheet incorporates Vessel motion loading with Environmental Criteria in estimating stresses for mast designs. It covers both unstayed and stayed mast in SI unit and Imperia unit. Although it is being specifically doctored for mast, it could be adapted for estimating stresses of similar structures on floating unit such include Burner boom, Derricks etc. The calculation is referenced to Design of Ships masts R.W. Milliman published by the Association of Engineering and Shipbuilding Draughtsman AESA.

Calculation Reference
Design of Ships Masts
Naval Engineering
Ship Design

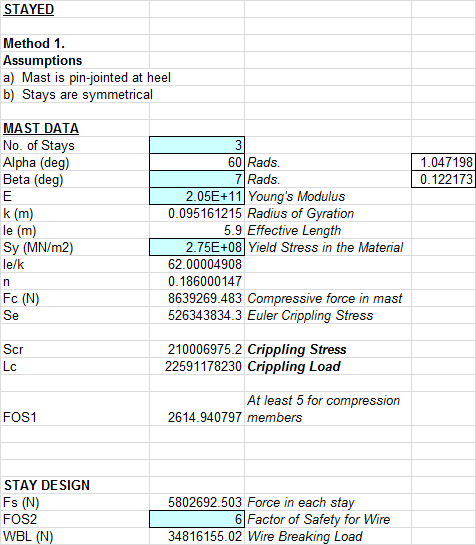

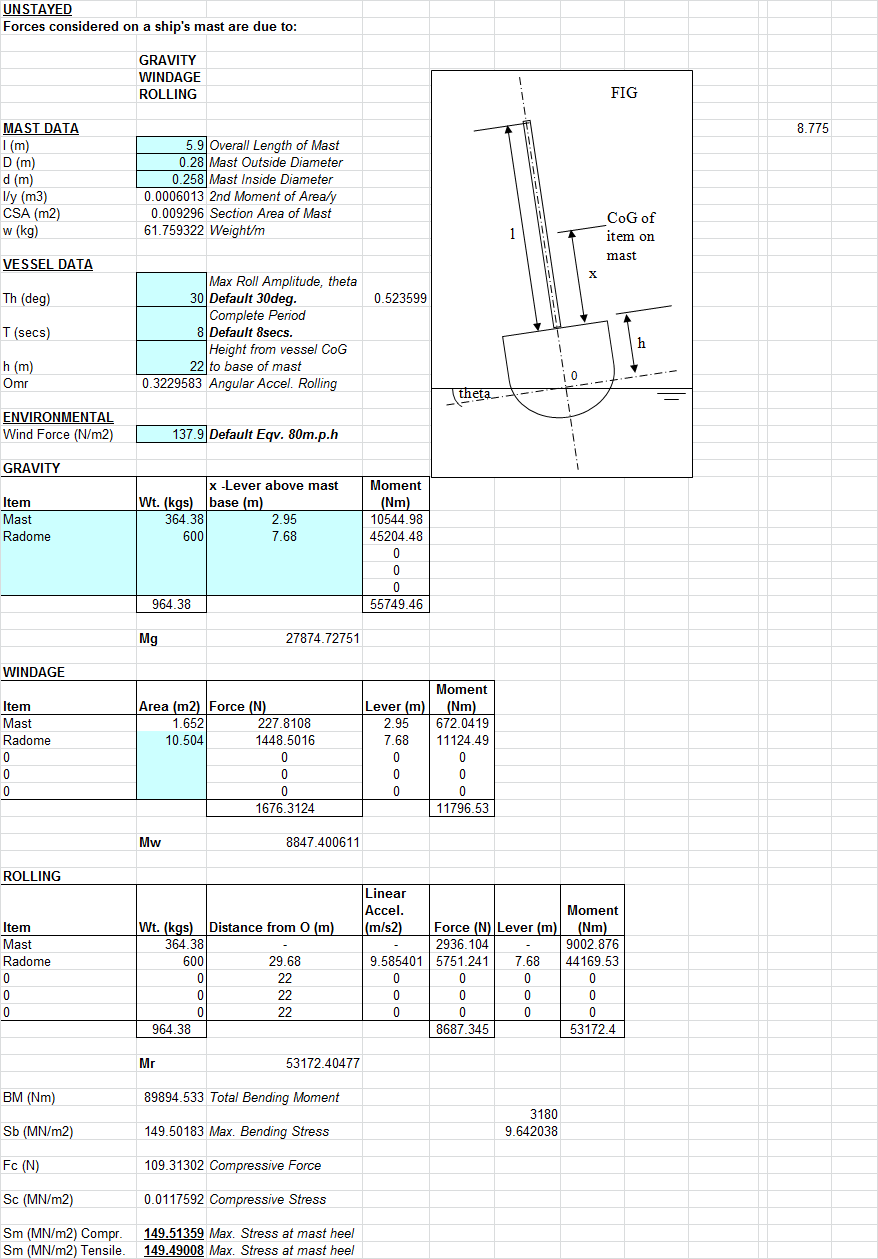

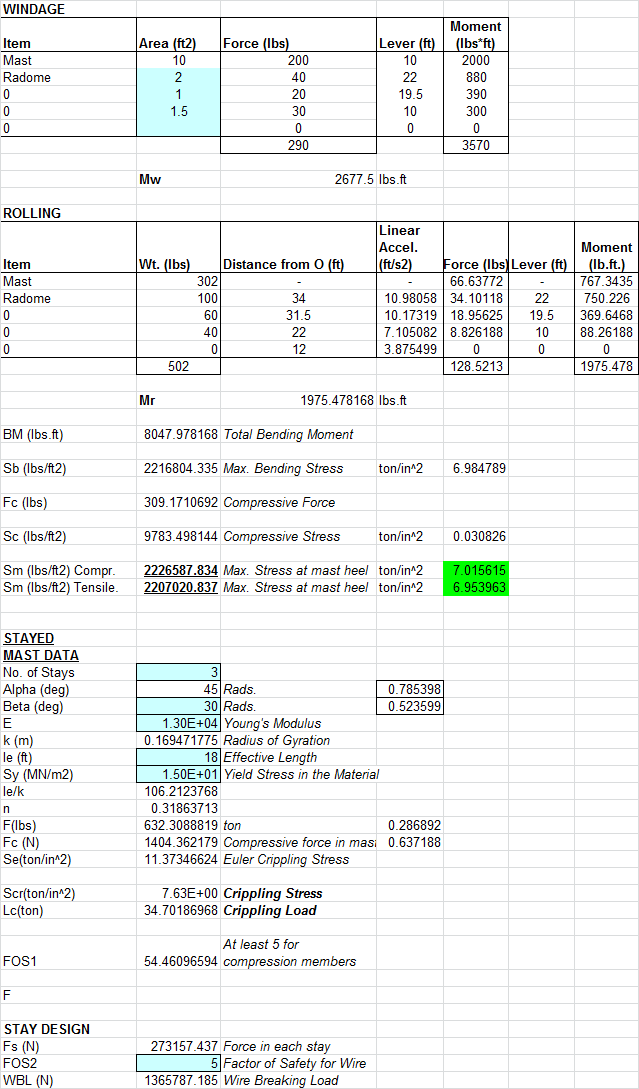

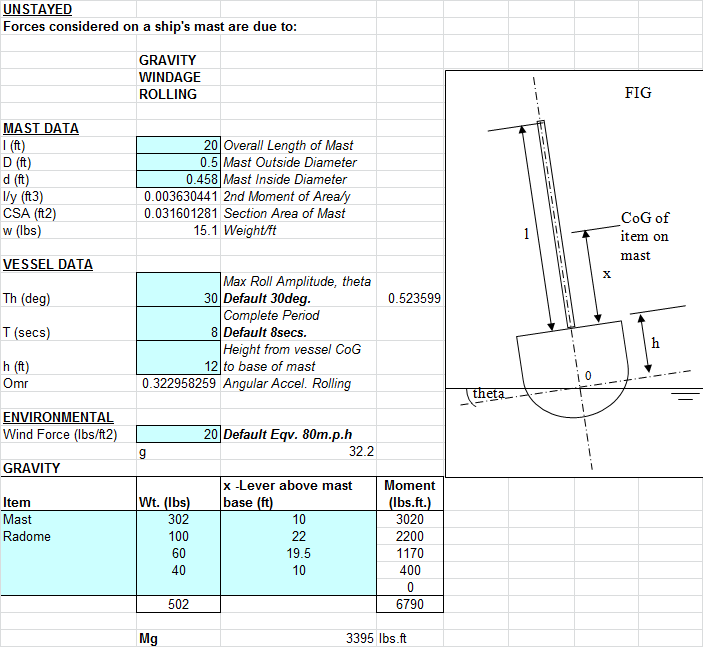

Calculation Preview

21 Sep 2010
Last Modified
22 Sep 2010
File Size:
50.00 Kb
File Version:
File Author:

Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 2
Akinola 13 years ago
Thank you Akinola this is a good contribution. I have added a calculation preview and some addition links to your down load page and I have awarded you a free three month XLC Pro subscription by way of thanks.
Akinola 13 years ago
I hope will be very useful for Engineers in Shipbuilding or Offshore Industries.
