Offshore Tubular Joints Punch Check as per API-WSD

Rating:
4

Description


API-WSD-Tubular Joints Check

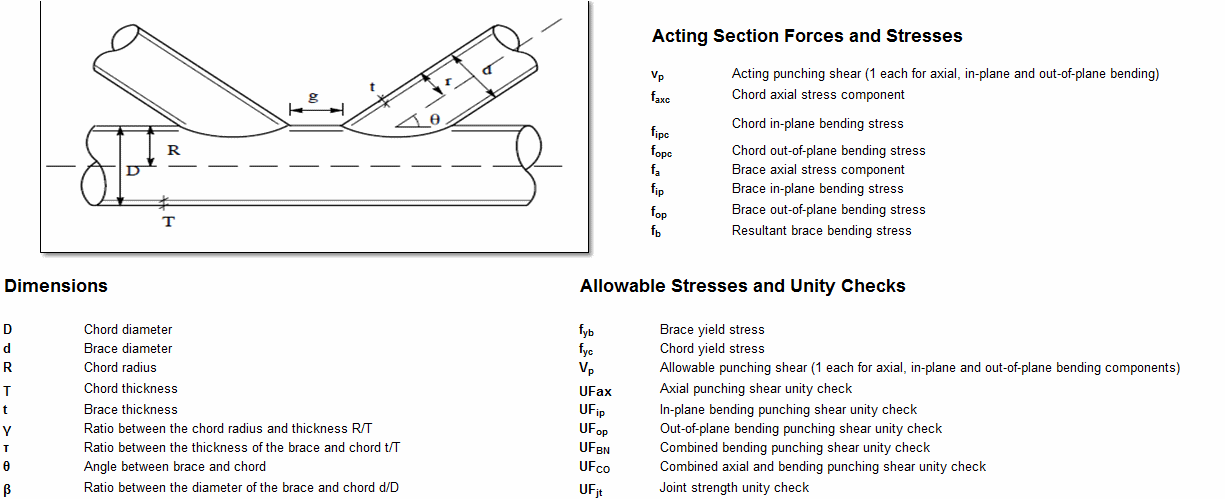

This spreadsheet defines the principle terms and ratios used in tubular joint design. It presents the classifications for T, Y, X, N, K and KT joints and the details of joint arrangements. It describes design methods for static strength.
The main structure of a topside consists of either an integrated deck or a module support frame and modules. Commonly tubular lattice frames are present, however a significant amount of rolled and built up sections are also used. This calculation sheet refers to the design of tubular joints. These are used extensively offshore, particularly for jacket structures.
Only static check is performed here, fatigue check shall be added in further revisions.

Calculation Reference
Tubular Steel Construction
Tubular Lattice Frames
Steel Structures

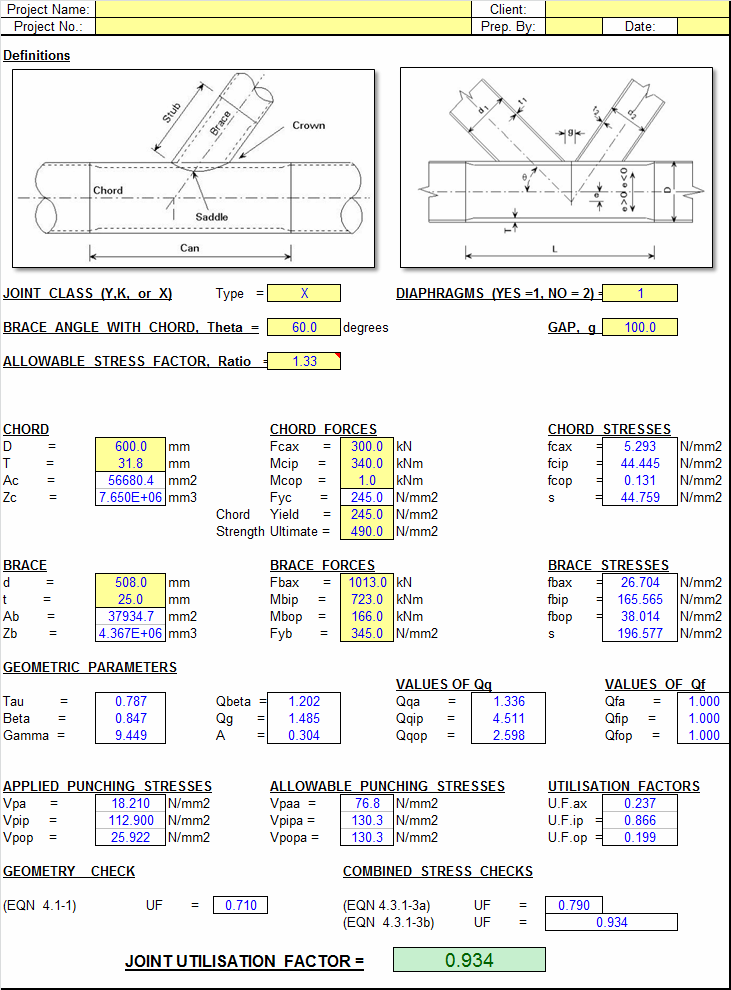

Calculation Preview

Uploaded
15 Apr 2013
Last Modified
15 Apr 2013
File Size:
183.00 Kb
Downloads:
137
File Version:
1.0
File Author:
tata
Rating:
4


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
JohnDoyle[Admin] 11 years ago
Thank you for your debut calculation I have awarded a free 3 month XLC Pro subscription by way of thanks.
