Steel Handrail Design & Embedded Post in Concrete

Rating:
17

Description

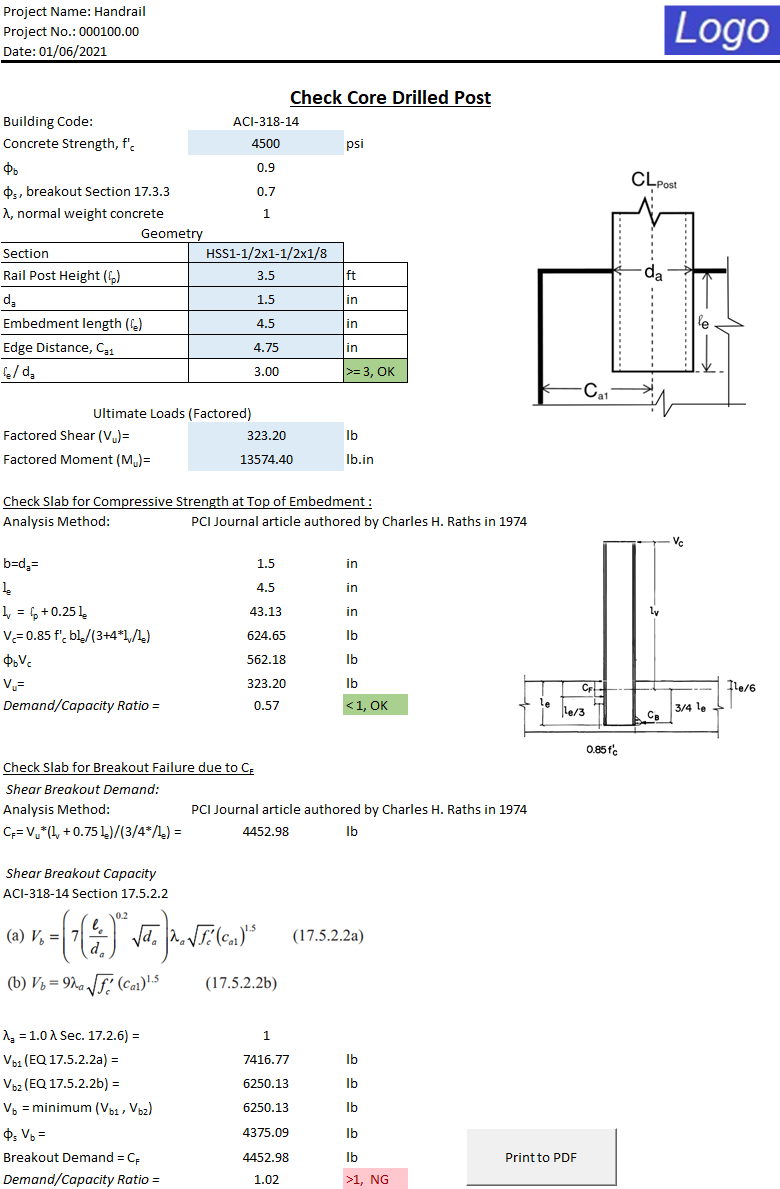

Structural Engineers can use this spreadsheet to design handrails. It gives the ultimate loads (Moment & Shear) for handrail post connection. It also checks the design of core drilled posts into concrete slabs or beams.

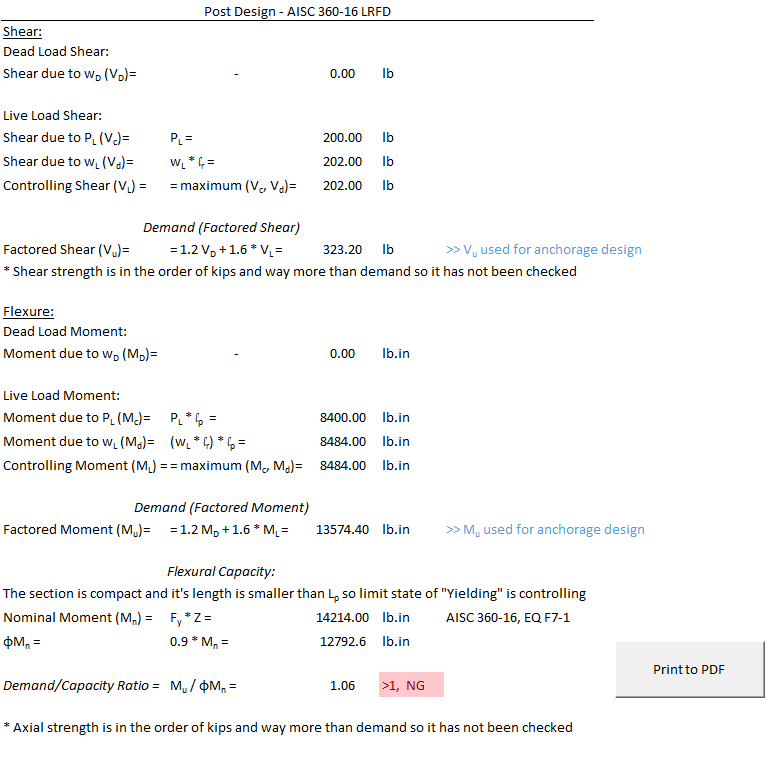

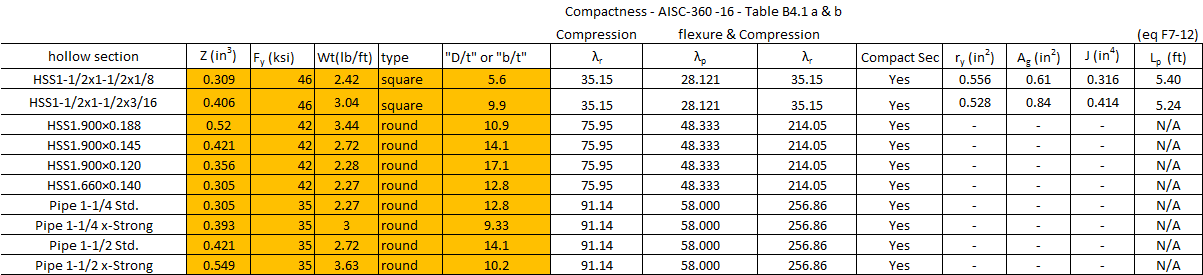

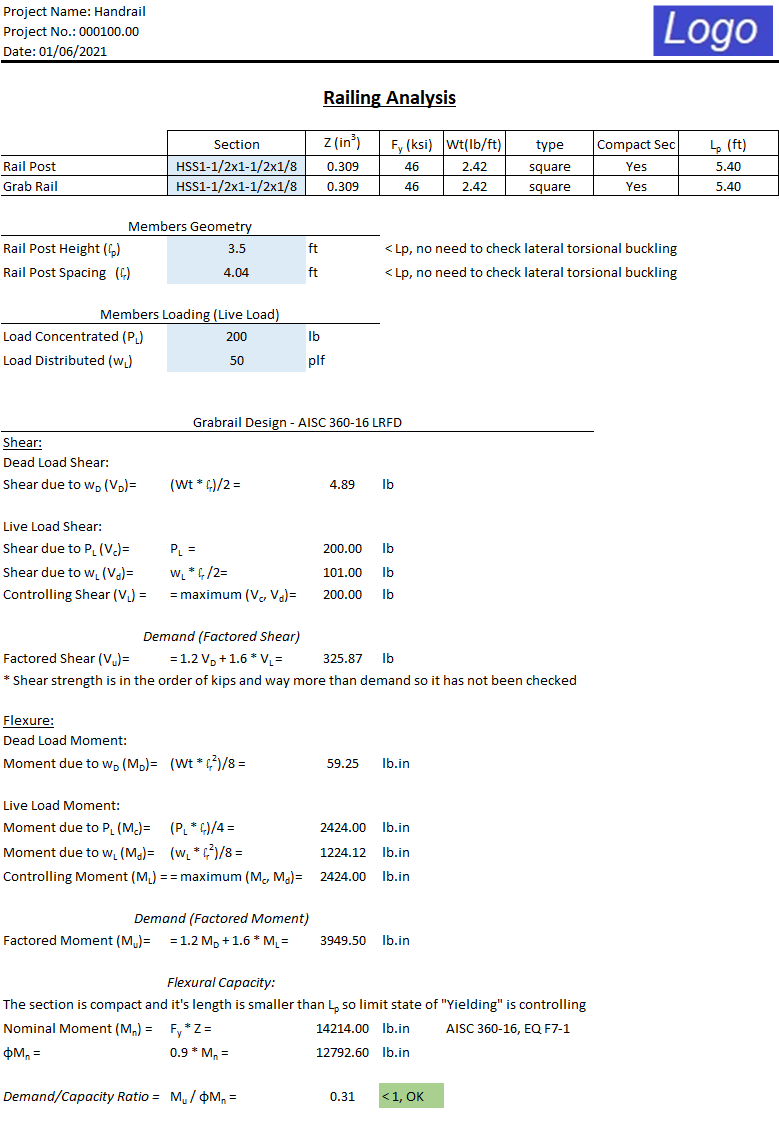

Calculation Preview

Uploaded
06 Jan 2021
Last Modified
18 Jan 2021
File Size:
117.53 Kb
Downloads:
178
File Version:
1.0
File Author:
Far Raj
Rating:
17


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
JohnDoyle[Admin] 3 years ago
A nice debut calculation! I have awarded a three month XLC Pro subscription by way of thanks.
