Welding Splice Design of Beam

Rating:
18

Description


This Spreadsheet is a calculation for welding splices of beams for PEB structures in case there is difficulties during erection or mistake done during istallation & need to transfer the beam element to other Grid.

these will serve as guide to structural designer on site on how to resolve issues during construction activities.

Calculation Reference
Structural Design
Steel Designers Manual
Welded Steel

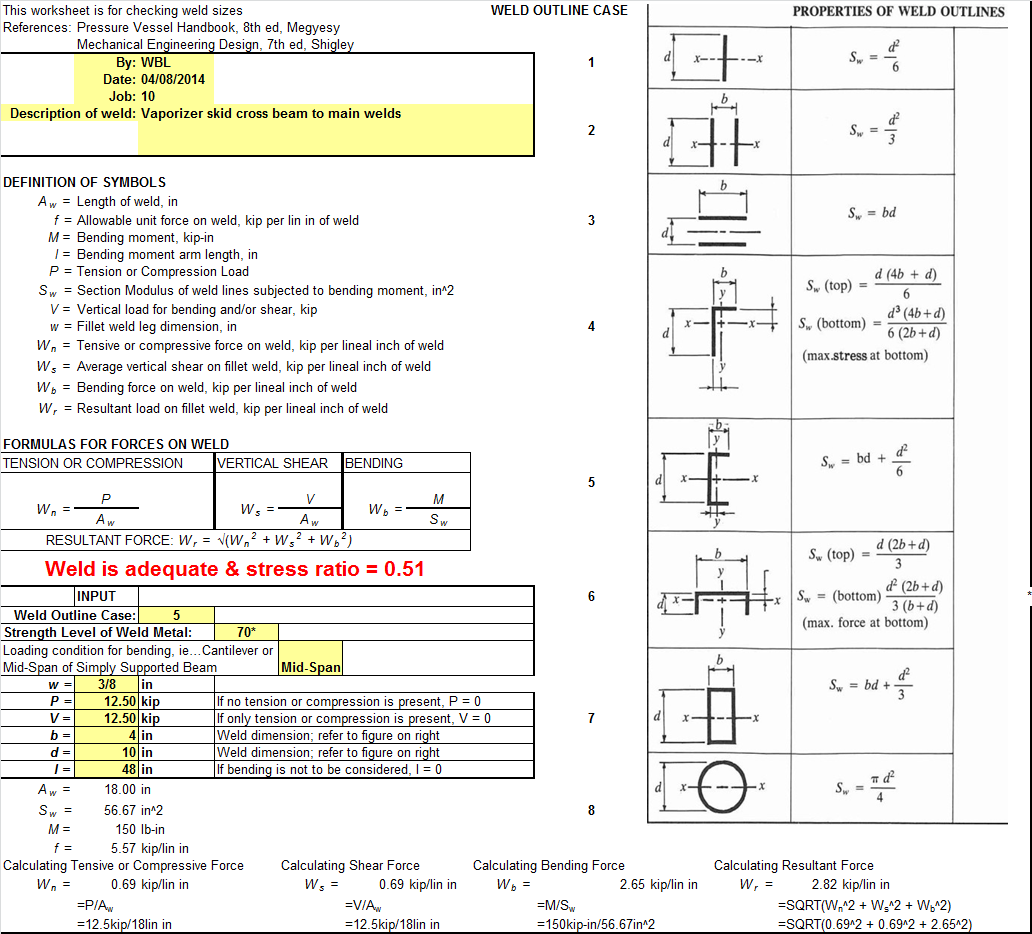

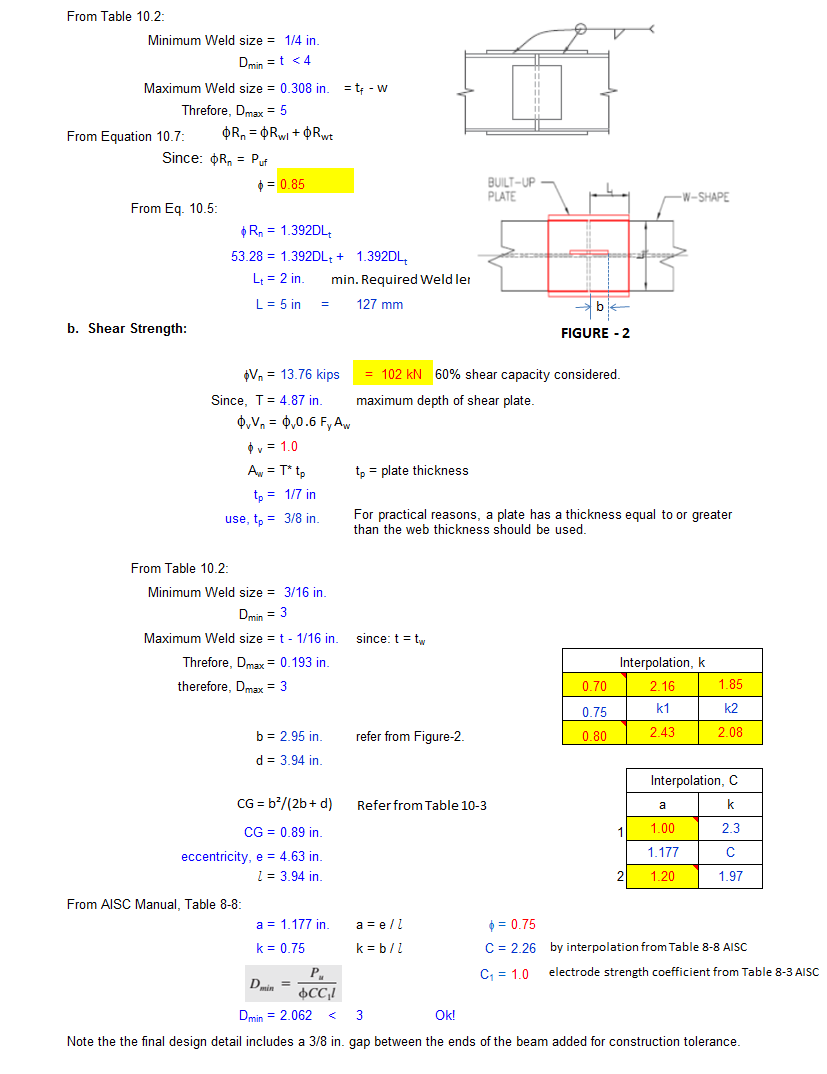

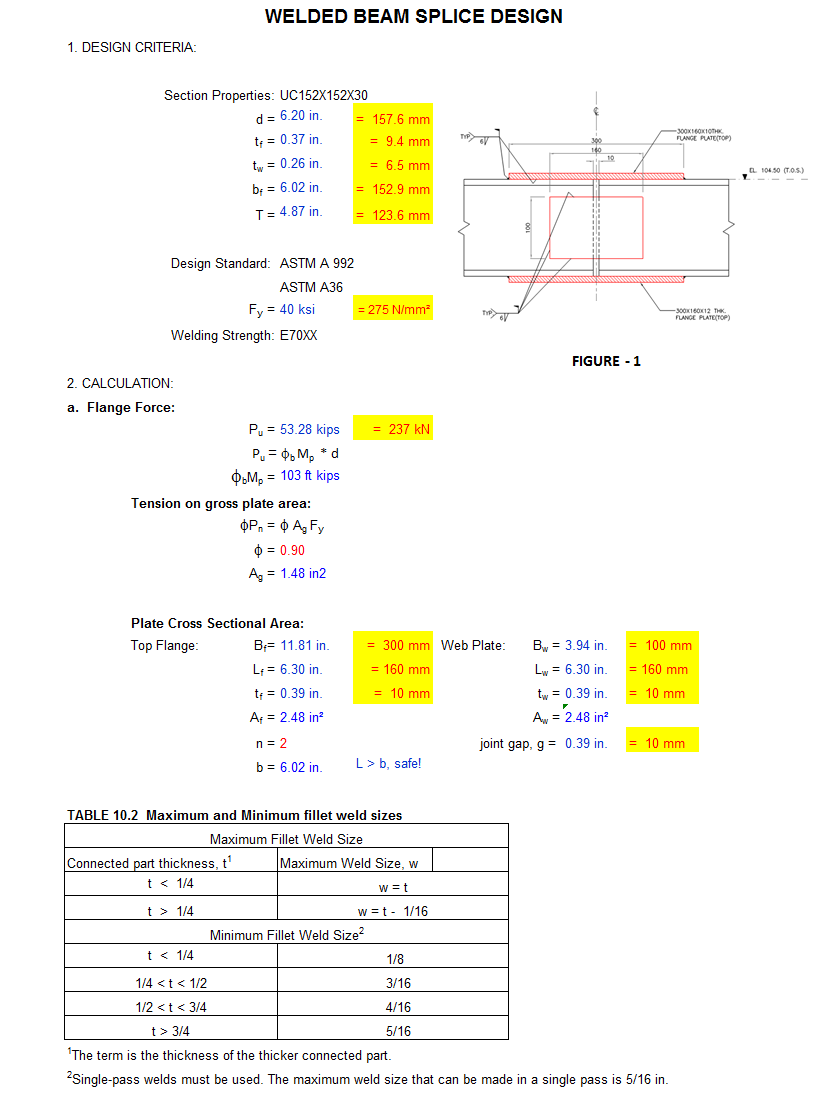

Calculation Preview

Uploaded
05 Aug 2014
Last Modified
05 Aug 2014
File Size:
407.50 Kb
Downloads:
348
File Version:
1.0
File Author:
Wilfred B. Lotino
Rating:
18


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
Comments: 1
JohnDoyle[Admin] 9 years ago
Well done Wilfred I have extended your XLC Pro subscription by 3 months by way of thanks.
