Description


API650 - Welded Tanks for Oil Storage
DESIGN CODE & SPECIFICATION
SHELL DESIGN THICKNESS CALCULATION

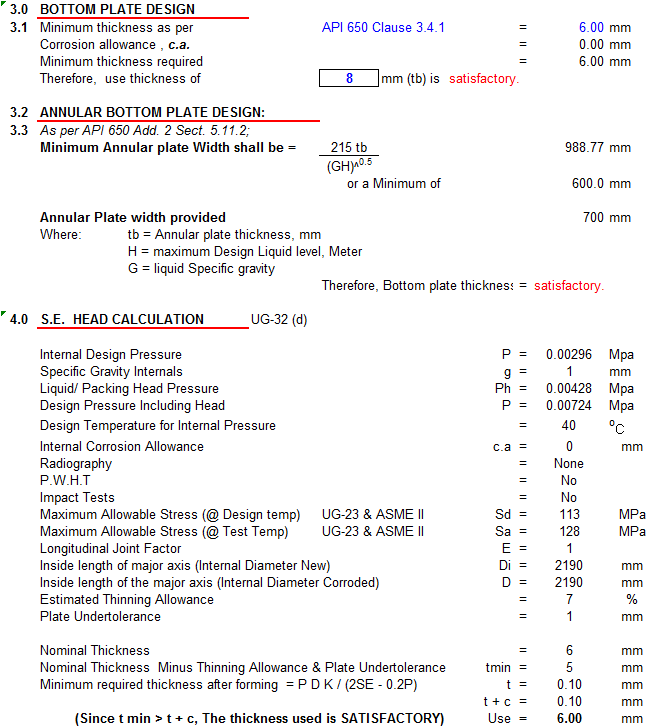

BOTTOM PLATE, / ANNULAR &BOTTOM PLATE DESIGN
INTERMEDIATE WIND GIRDER DESIGN
WIND DESIGN & ANCHOR BOLT CALCULATION

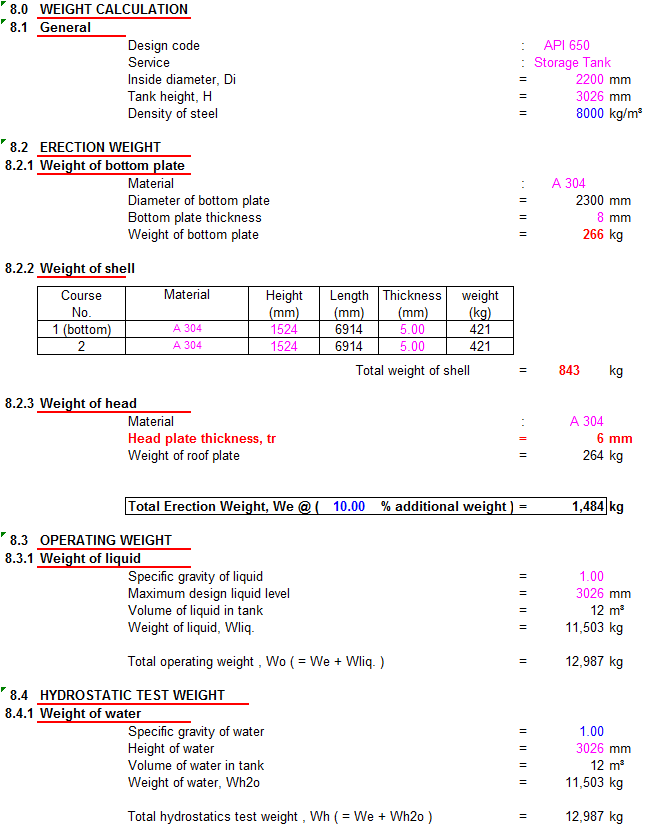

WEIGHT CALCULATION
TANK STABILITY AGAINST WIND LOADING
SLING & WIRE ROPE CALC (SKID)
COG CALCULATION FROM CADWORK
ALLOWABLE STRESS REFERENCE

Calculation Reference
API 650
Oil Tank Design
Pressure Vessel Design

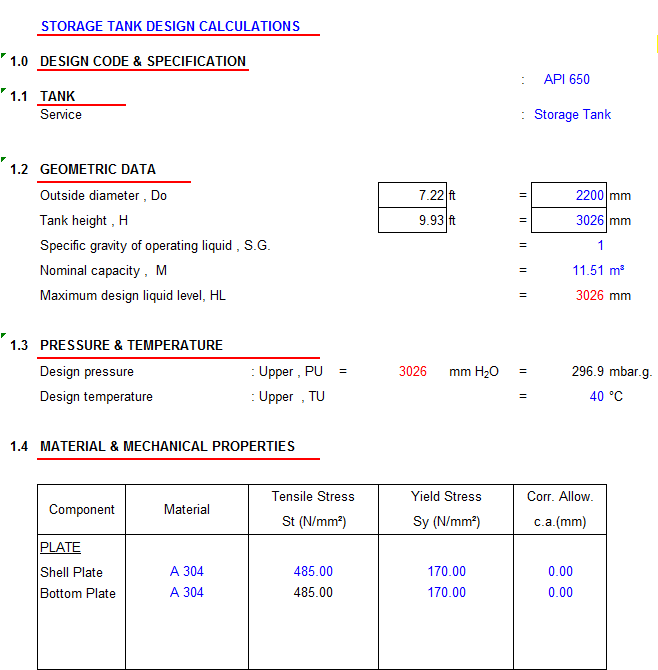

Calculation Preview

Submitted On:
19 Sep 2014
File Size:
910.50 Kb
Downloads:
350
File Version:
1.0
File Author:
Nasrul M Asral
Rating:
40


Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
