Flooring system using Solid timber floor joists
Description

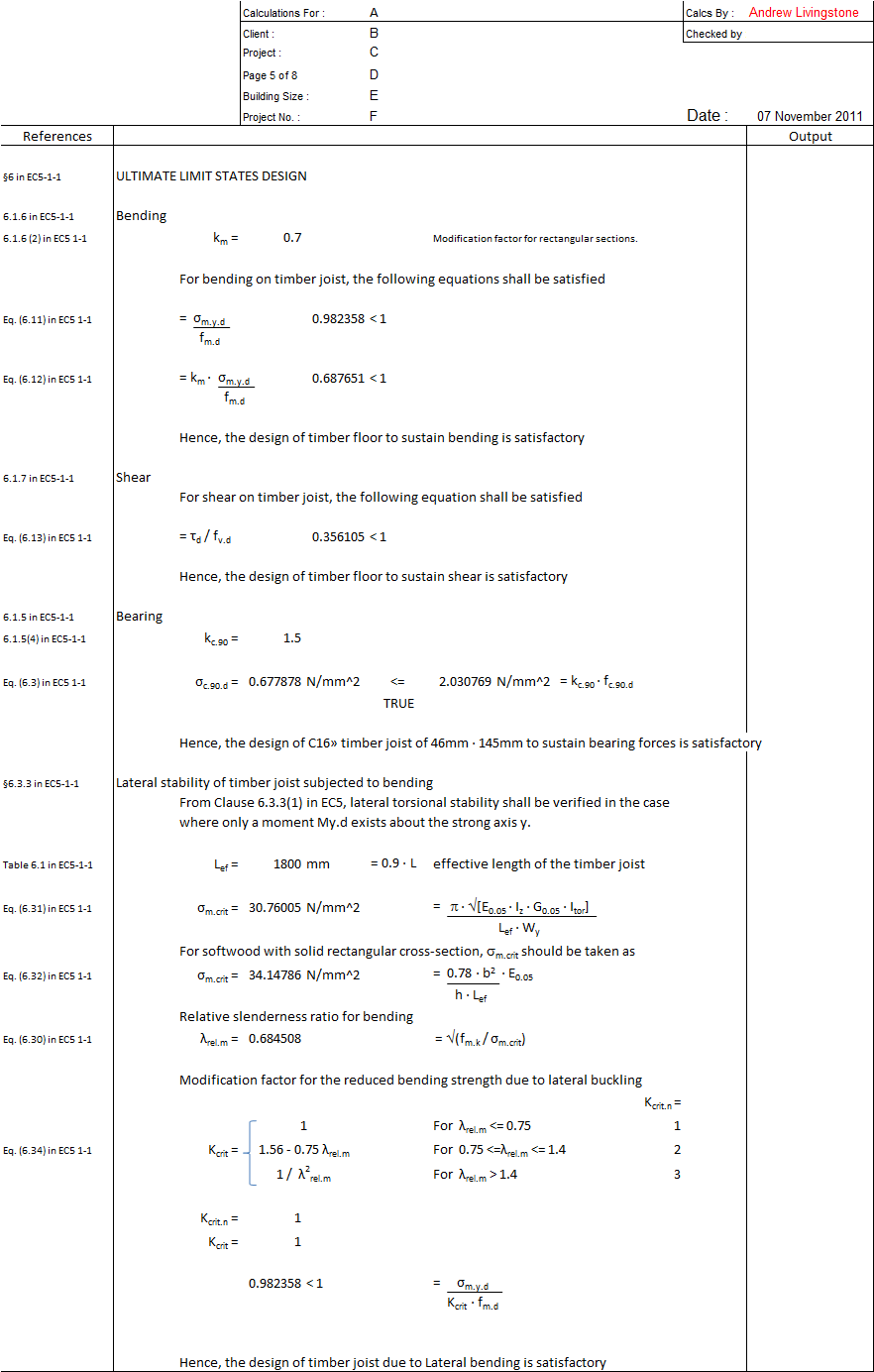

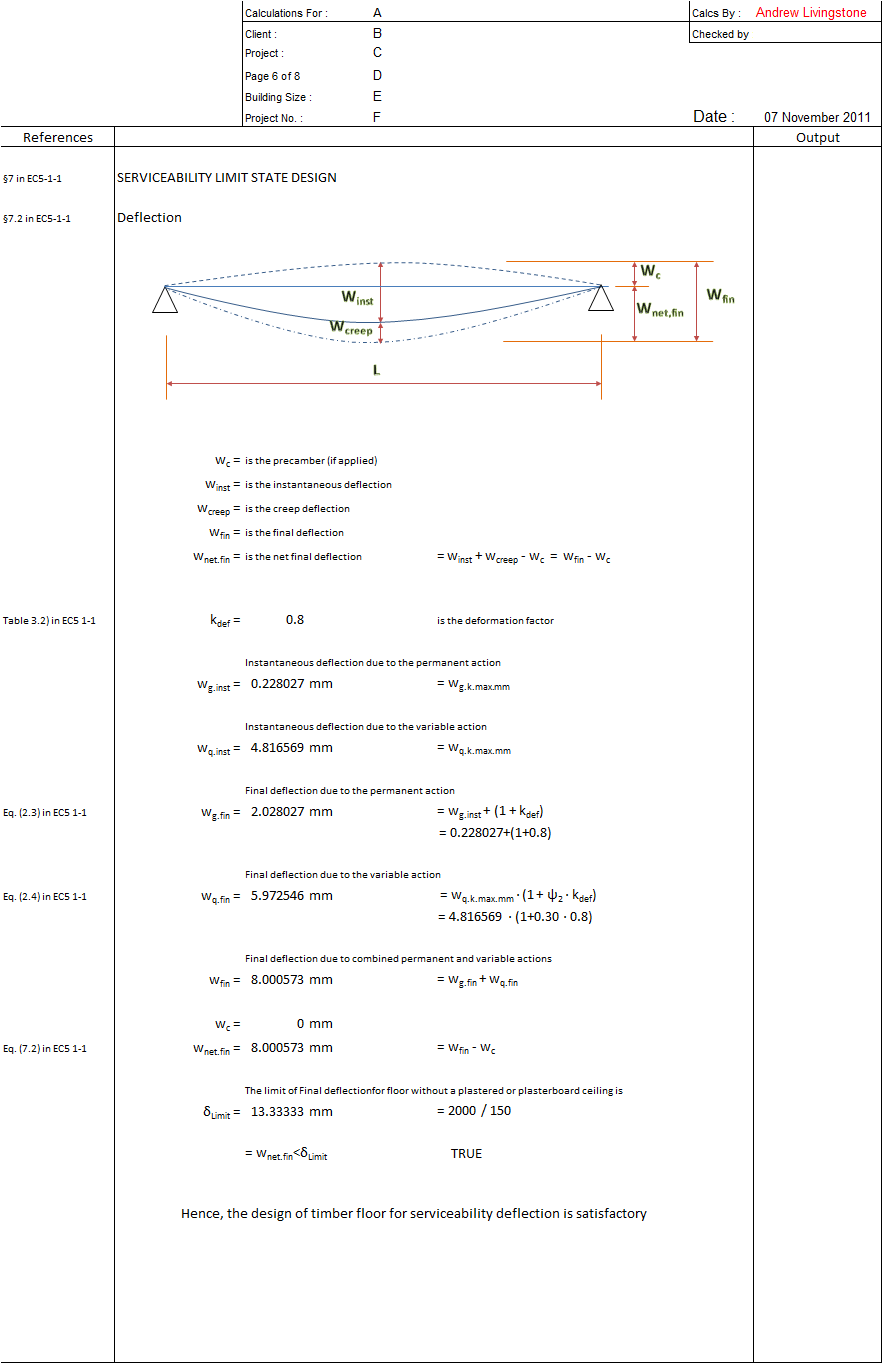

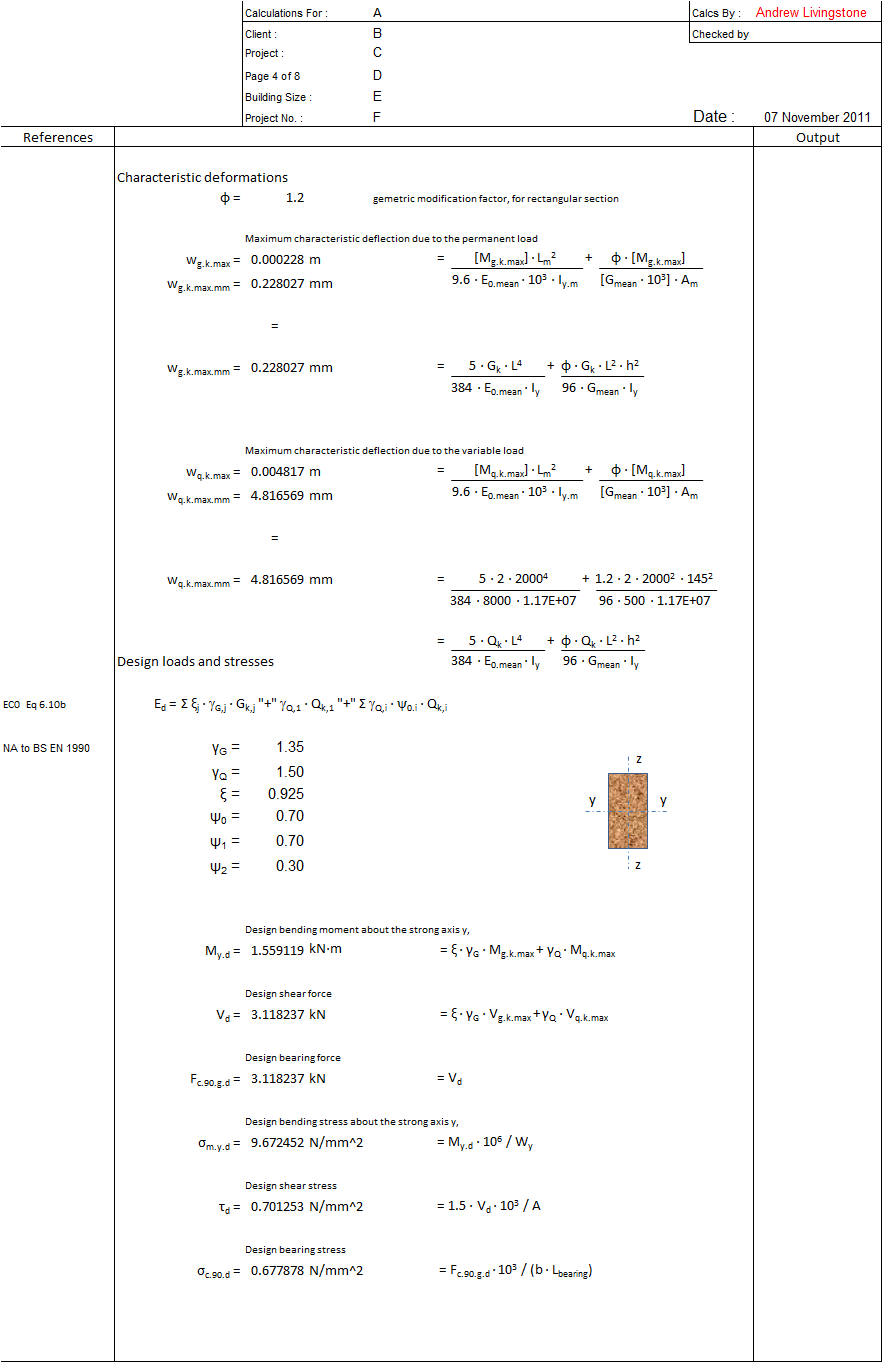

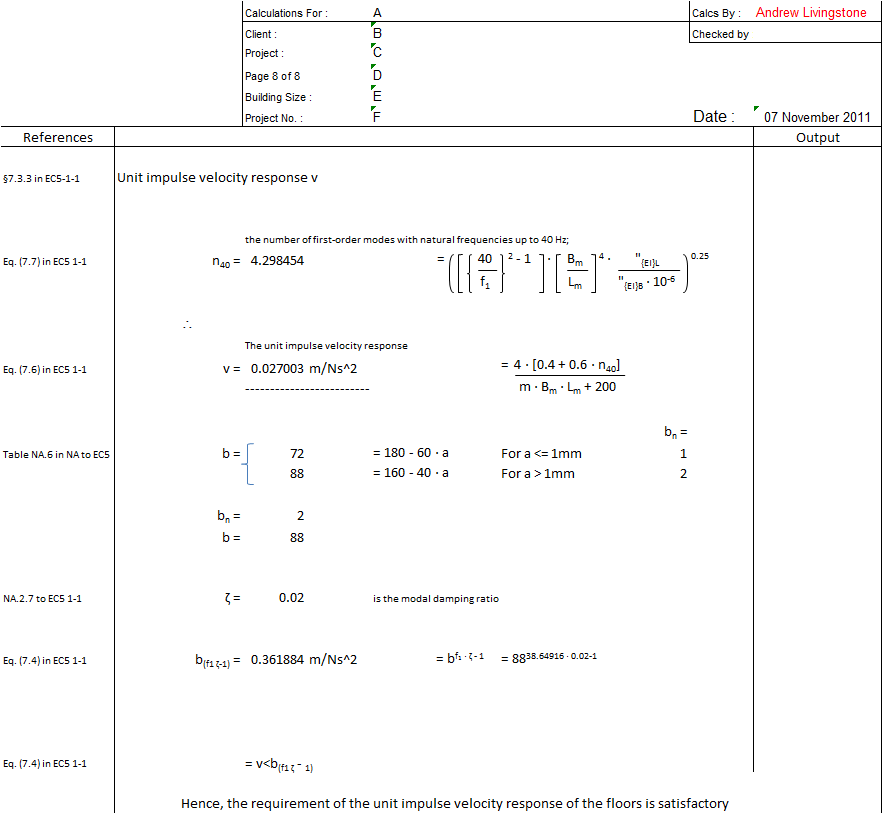

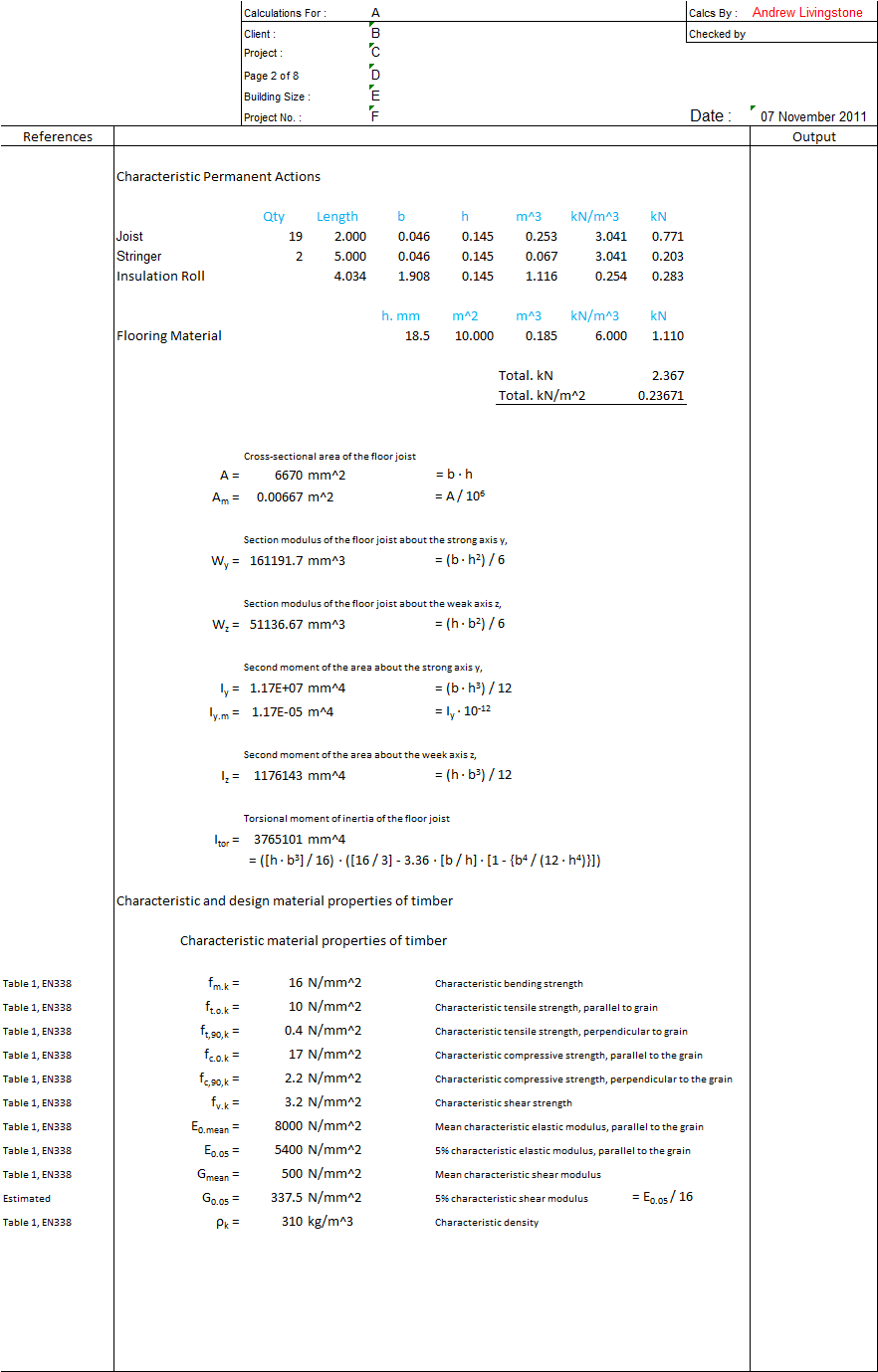

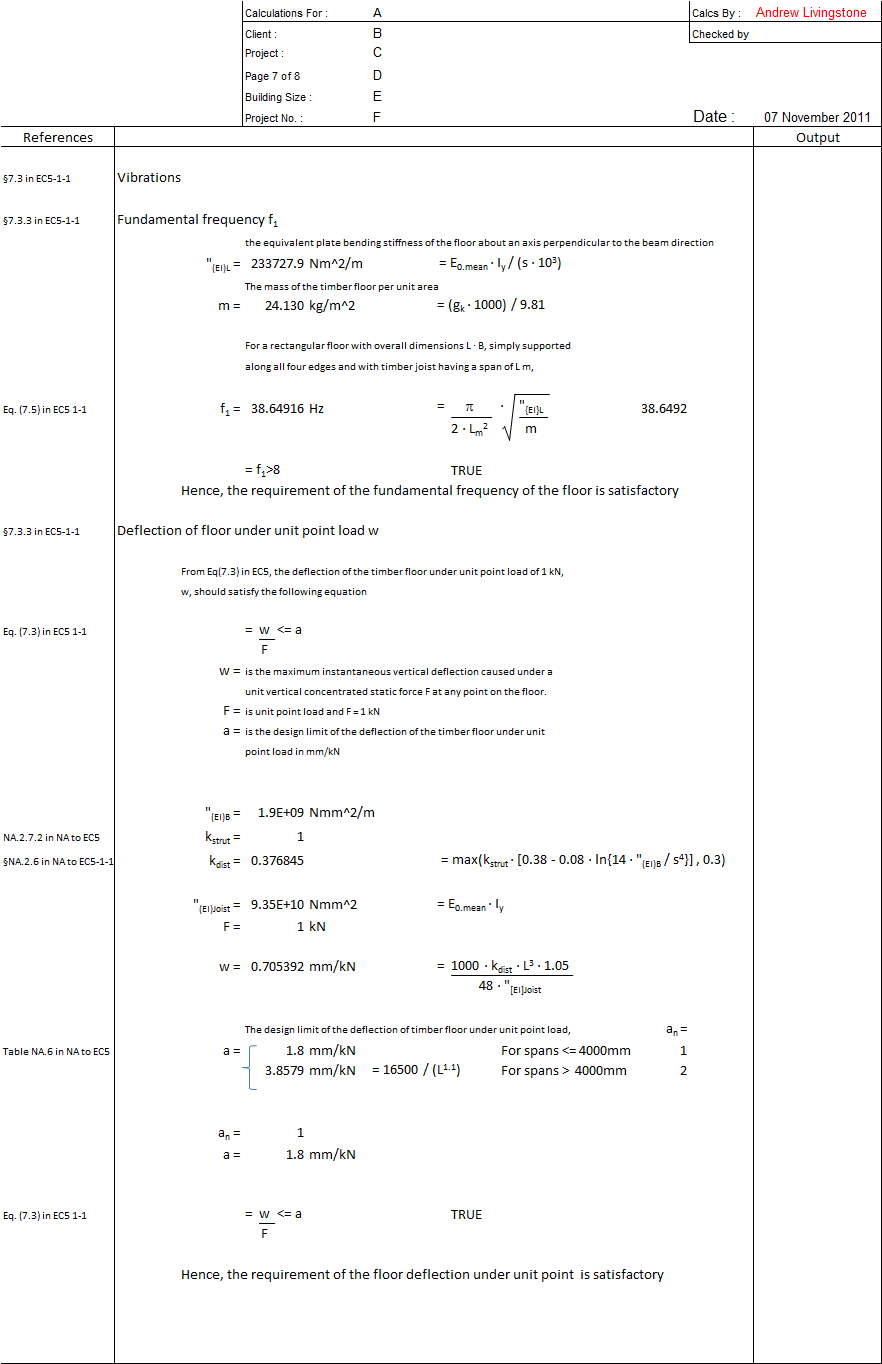

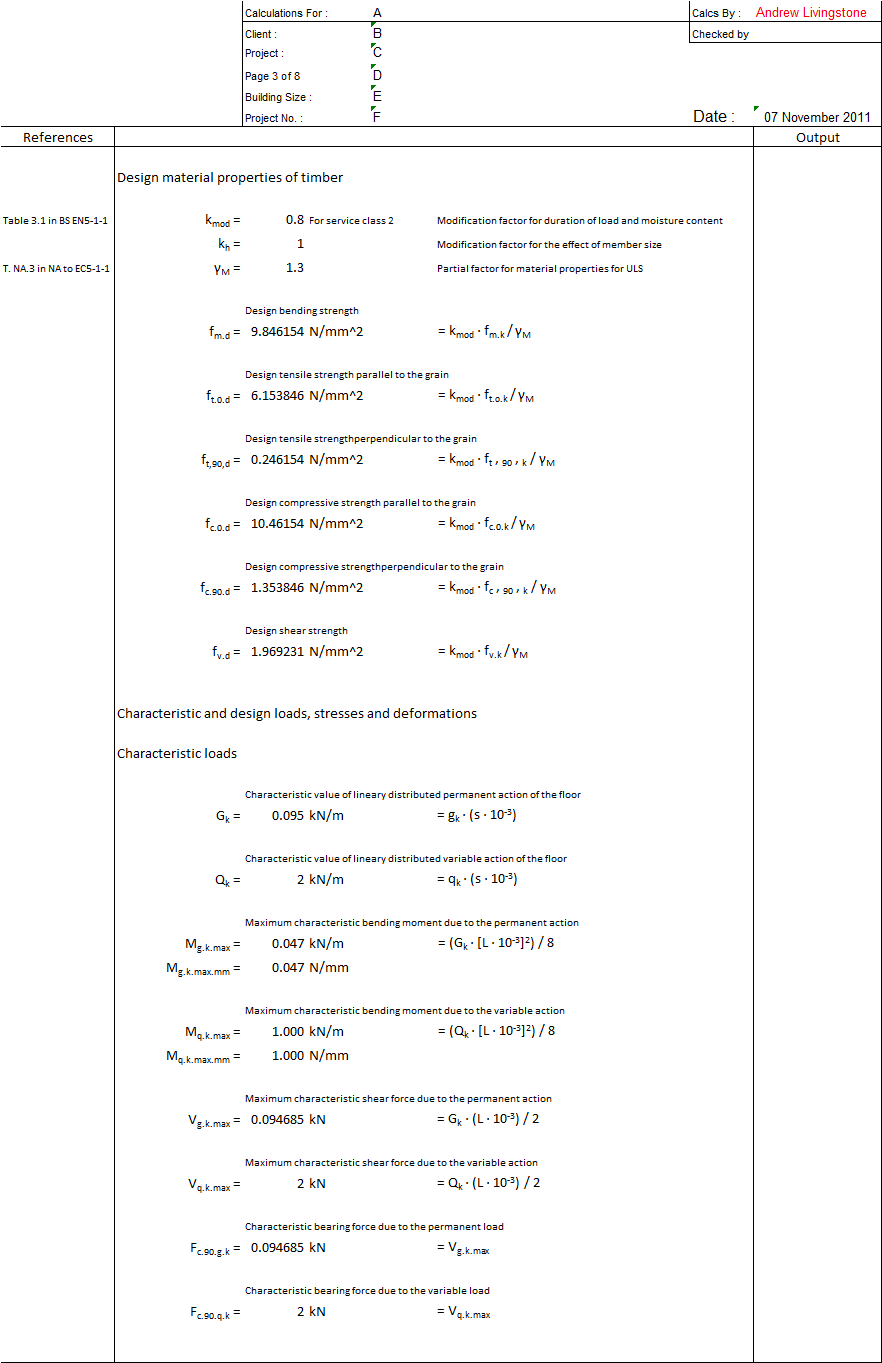

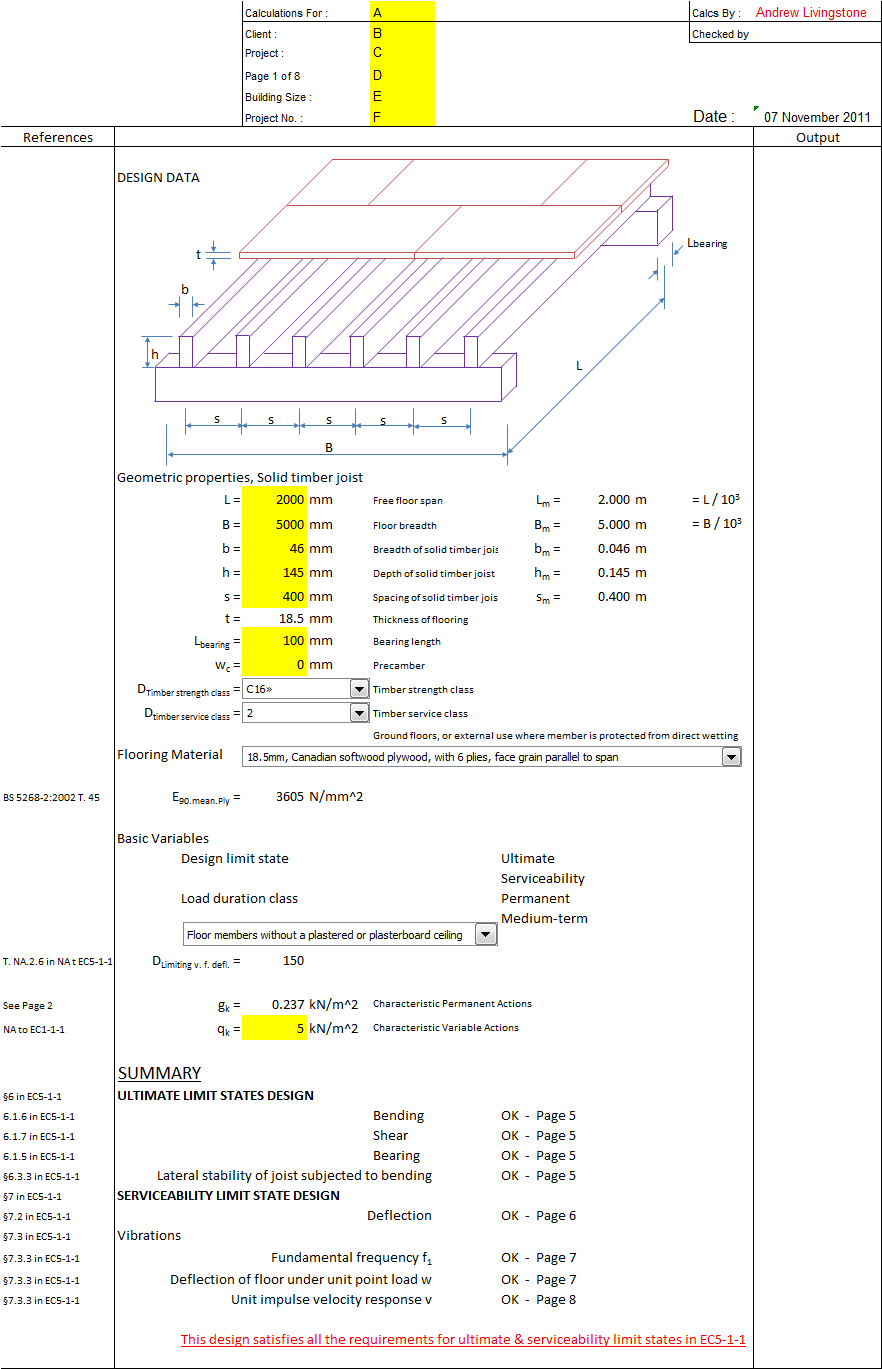

Design a solid timber floor joists system that will satisfy all the requirements for ultimate & serviceability limit states in EC5-1-1 (Euro codes) Summary Ultimate Limit State Design, Bending, Shear, Bearing, Lateral stability of joist subjected to bending. Serviceability Limit State Design, Deflection, Fundamental Frequency, Deflection of floor under unit point load, Unit impulse velocity response.
Calculation Reference
Eurocode 5
Timber Design
Wood Structural Design
Calculation Preview
Uploaded
07 Nov 2011
Submitted By:
Last Modified
07 Nov 2011
File Size:
115.22 Kb
Downloads:
255
File Version:
1.0
Full download access to any calculation is available to users with a paid or awarded subscription (XLC Pro).
Subscriptions are free to contributors to the site, alternatively they can be purchased.
Click here for information on subscriptions.
